Chief LVSXU ConnexSys™ Video Wall Landscape Mounting System without Rails

Description

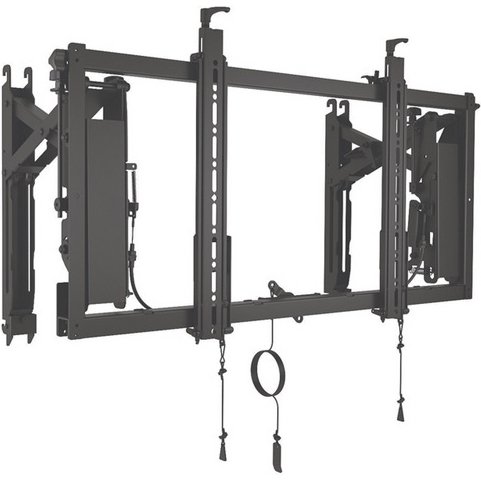

Chief LVSXU ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

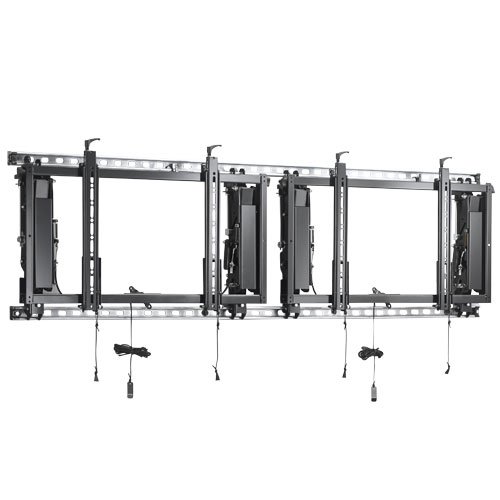

The LVSXU ConnexSys™ Video Wall system landscape mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.

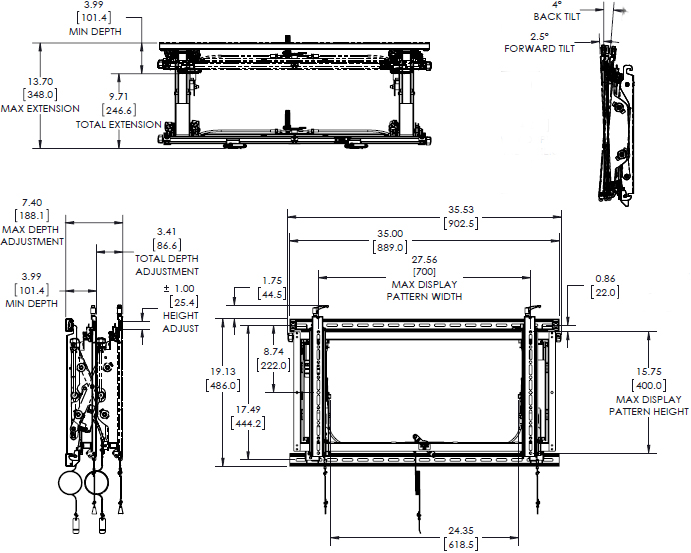

Technical Drawing

Specifications

Features

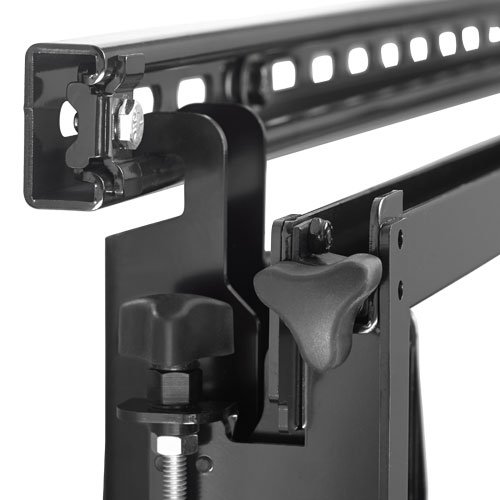

Speed

• Hang units on a single strut channel for quick row leveling
• No need for horizontal spacers
• Vertical measurement is simply the height of the display to the next rail
• Compatible with most 1-5/8" sizes of channel strut
• Reduces installation time - especially for XL and recessed configurations
• Tool-free ClickConnect latching secures displays

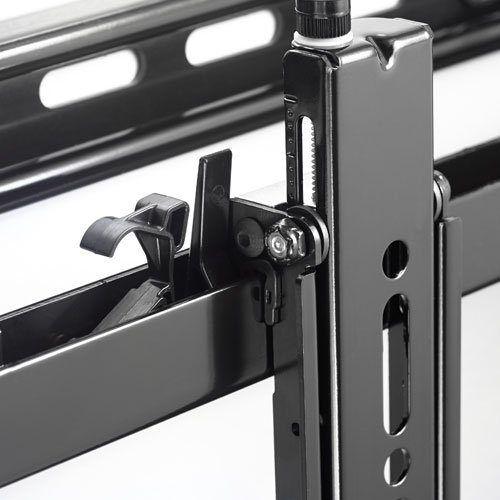

• PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount

Alignment

• PowerZone Adjustments
• Height adjustment ±1" on each interface
• Tilt adjustment at single pivot point, protects displays from twisting
• Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
• Both sides adjust independently, compensating for imperfections in the wall
• Walls can be out of alignment by up to 2" (horizontally)
• 3 levels of lateral adjustment
• Mount left/right along rail
• Interface left/right along mount
• Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions

Serviceability

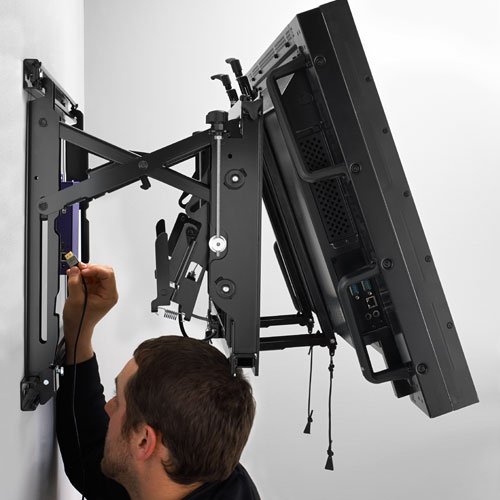

• RapidDraw Display Release
• Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
• Protects displays by not requiring an aggressive push to release/pop-out
• Releases only on demand, preventing accidental pop-outs
• The 10' (304.8 cm) cord can be set up to pull for release from any 90 degree angle
• Kickstand provides 20 degrees of bottom tilt access

Rigidity

• Rigid frame keeps displays where you set them, even after extending for service
  Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Miscellaneous

• Security - pad lock ¼" shank diameter
• Safety tested
• Universal interface
• Each mount comes out of the box with adjustments set in the exact same position
