Ergotron DM32-1016-1 Tablet Management Cart 32 with ISI

This product has been discontinued.

Description

Ergotron DM32-1016-1 is specially designed for the Samsung Galaxy Tab Active 8.0: Charge and deploy tablets across multiple shifts to all necessary individuals. Quick-connect dock utilizes Samsung’s POGO pin connectors - no charging cords to install or maintain. Locking steel doors keep tablets secure when not in use.

Technical Specifications


Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
8.0"	2.2 lbs 1 kg	-	-	-	-	-

Product Information

Part Numbers	North America = DM32-1016-1 Europe = DM32-1016-2 United Kingdom/Ireland = DM32-1016-3 Hong Kong/Malaysia/Singapore = DM32-1016-3 Australia/New Zealand = DM32-1016-4 China = DM32-1016-5 Thailand = DM32-1016-9
Description	Tablet Management Cart with Individual Status Indicators, 32 device capacity, for Samsung Galaxy Tab Active 8.0 (black)
Compatible	only with Samsung Galaxy Tab Active 8.0
Weight Capacity	Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Certification	UL 60950-1 Information Technology Equipment - Safety, CAN/CSA C22.2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands and Entertainment Centers for Use with Audio and/or Video Equipment IEC 60950-1 worldwide safety standard For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024 Complies with USB 2.0 standard
Acoustic Testing	Indicates very quiet operation at 41.4 dBA
Casters	Four 4" (100 mm) smooth gliding dual wheel casters for easy push/pull mobility. Two locking casters ensure lock-in-place stability

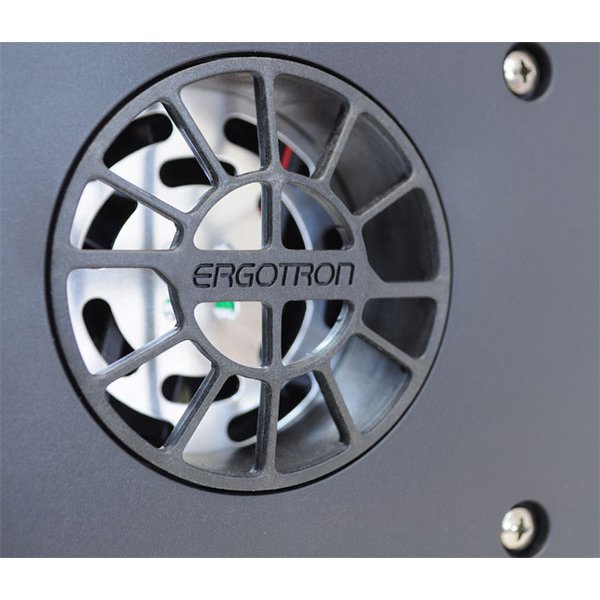

Cooling/Ventilation	Two 5V DC continuous operating fans

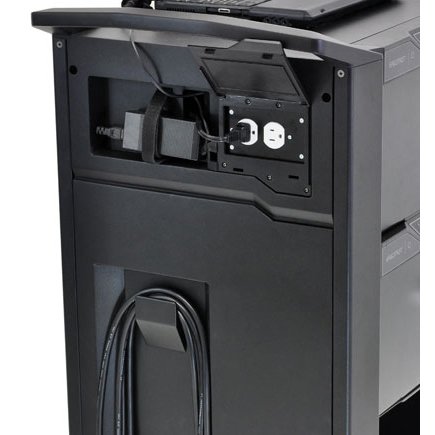

External Auxiliary Outlet(s)	One or two outlets, depending on region 100/120V~,3A,50/60 Hz or 220/230/240V~,1.5A, 50/60 Hz
Power System	100/120V~,12A,50/60 Hz or 220/230/240V ~,5.5A, 50/60 Hz depending on region and model of cart Power cord = 12.5' (3.8 m) long
Environmental	Temperature Range: operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F) Relative Humidity (maximum): operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) Altitude (maximum): 2000 m (6,562 ft)
Environmentally clean	RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Product Dimensions	23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)
Product Weight (unloaded)	100 lbs (45.4 kg)
Shipping Dimensions	46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight	147 lbs (67 kg)
Warranty	Five (5) years; two (2) years for power module; one (1) year for other electrical components

Benefits

No Setup Required

Fully assembled, this cart is ready to roll right out of the box
Easy to use. Plug in the cart, drop in the tablets - charge

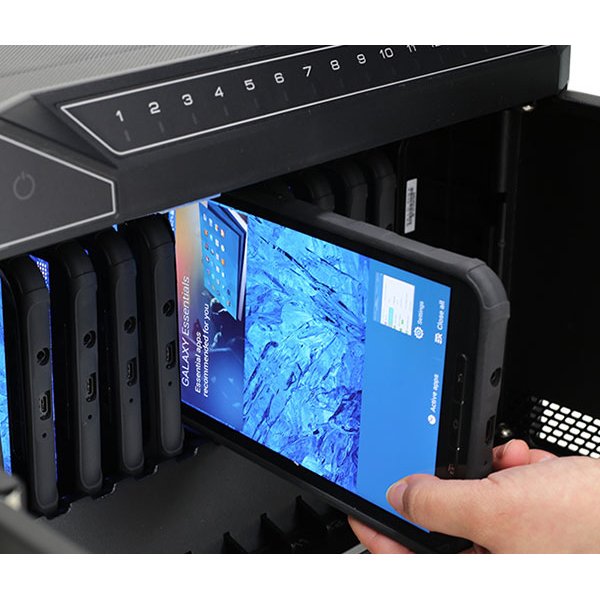

No charging cords to install. Quick-connect dock utilizes Samsung’s POGO pin connectors
Capacity for up to 32 Samsung Galaxy Tab Active 8.0 tablets with Samsung provided case in a super compact cart design
All tablets charge simultaneously with power from one cord to the wall
Individual status indicator LEDs monitor charging progress for each tablet
Heavy-duty ABS plastic enclosure is "wireless syncing friendly". None of the signal interference that is common with all-steel cabinets

Solid, Durable Construction

Steel tube and aluminium extrusion framework; steel access doors
Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS

Secure Storage

Durable steel doors with three-point lock assembly provides strong theft deterrence; optional security bracket kit provides ability to secure entire cart to floor or wall
Ventilated enclosed storage area keeps tablets safe, secure and cool

Certified for Safety

Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare, or enterprise setting
Tested and certified to UL 60950-1 and UL 1678 standards, FCC requirements, and all applicable country-specific regulations

Product Options/Accessories

Ergotron SRVC-PI-01 Product Integration: Tier 1 Service Program

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information

Model DM32-1016-1
Manufacturer Ergotron
Part Number DM32-1016-1
UPC 698833050660

Color Black
Compatible Only with Samsung Galaxy Tab Active 8.0
Weight Capacity Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Power 100/120V~,12A,50/60 Hz or 220/230/240V ~,5.5A, 50/60 Hz depending on region and model of cart
Power Cord 12.5' (3.8 m) long
Temperature Operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F)
Humidity Operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
Altitude 2000 m (6,562 ft) (maximum)
Dimensions 23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)
Weight 100 lbs (45.4 kg) (unloaded)
Shipping Dimensions 46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight 147 lbs (67 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
Display Type Tablet
