Workrite Solace Single or Dual Monitor Sit-Stand Workstation

Description

For more than 25 years, Workrite Ergonomics has been helping organizations create happier, healthier and more productive workplaces. We take issues like neck and back pain, blurred vision, and headaches caused by extended computer use seriously, and are committed to helping organizations fight these increasingly common problems.

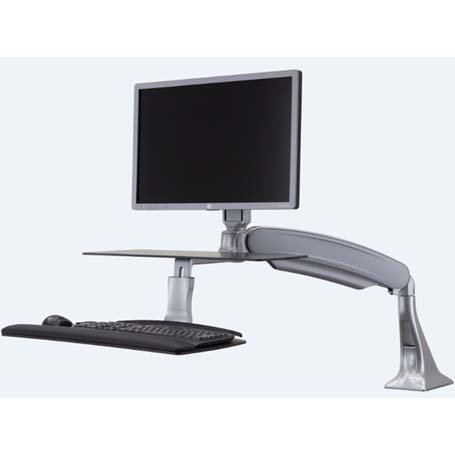

Workrite's Solace provides a quick and efficient way to transform any ordinary desk into a more ergonomic sit/stand Workstation. Solace provides up to 22" of smooth vertical adjustability and can be easily mounted to the back of the worksurface using the built in C-clamp or grommet mount. It also features a reversible base that enables it to be used with virtually any size desk.

Solace was designed to promote comfortable healthy posture and is available with Workrite's Standard or Revo adjustable keyboard platforms. Our optional dual monitor adaptor kit enables you to reconfigure quickly and seamlessly from one monitor to two. Solace is simple to install, features a wide adjustment range and can be easily adapted to provide a uniquely personalized workspace for any user. All Solace Sit-to-Stand models include: monitor mount, keyboard platform and secondary surface.

Technical Drawing

Features

Superior range ensures ergonomic comfort. Solace promotes health and wellness by providing the core ergonomic benefits associated with height adjustable desks, monitor arms, and keyboard platforms. The all-in-one ergonomic workstation offers a quick & economical method to enhance user comfort as well as overall productivity. With its proficient ranges of lift, rotation and tilt, Solace has the flexibility to accommodate a wide variety of users and applications.

Arm

Solaces' pneumatic strut allows the arm to effortlessly lift the keyboard and monitor(s) between the seated and standing positions. The industry leading keyboard platform height range makes Solace an ideal solution for multi-user environments.

• Designed to meet ANSI/BIFMA & HFES standards, supporting 5th percentile seated women to 95th percentile standing man

• Keyboard Platform, Secondary Surface & Monitor Mount travel in unison allowing transition between seated and standing height in seconds

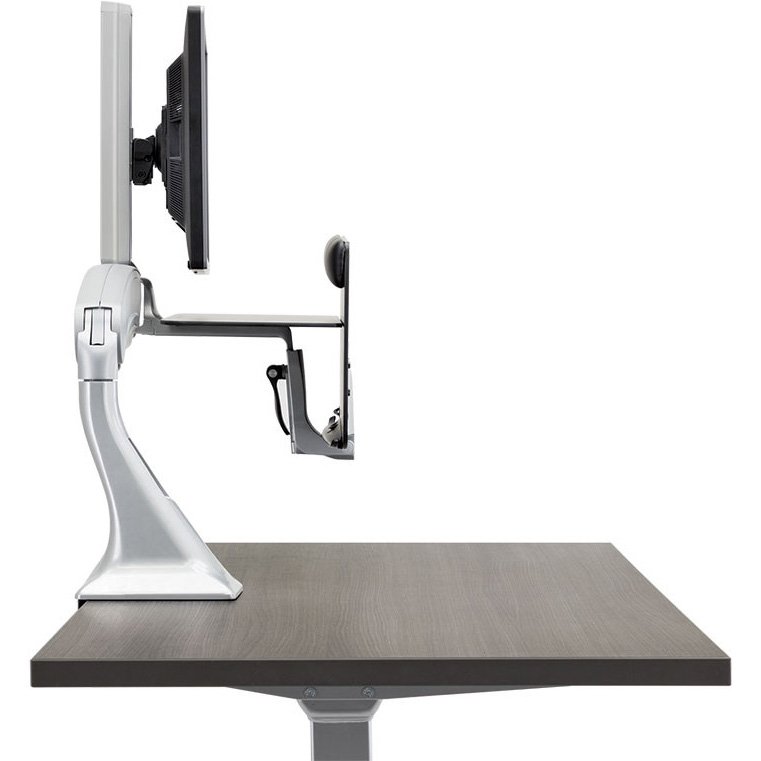

• Stows down to just 14" to quickly and easily access desktop workspace

• Over 22" vertical adjustability

• 25 lbs lifting capacity

• Arm rotates 360°

• Arm & base available in Silver

Base

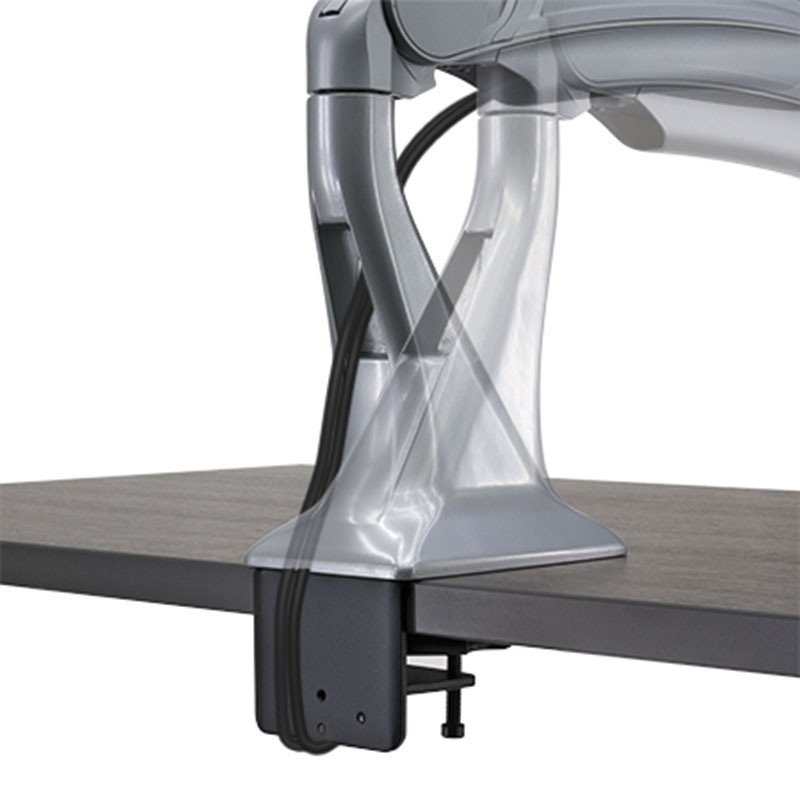

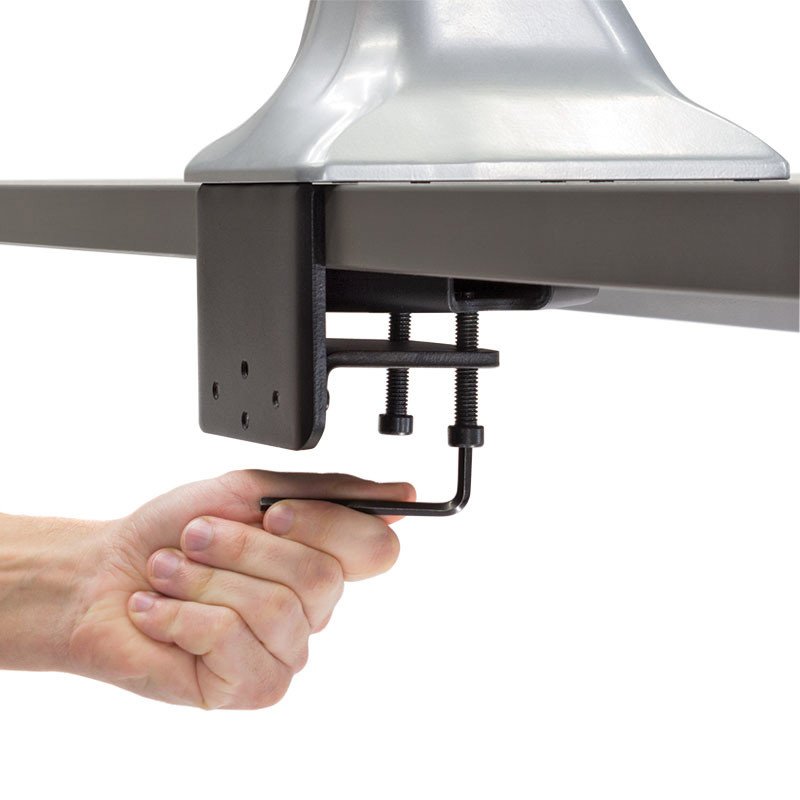

• C-Clamp and Grommet Mount provide installation flexibility

• Reversible base to be installed on 24" or 30" deep work surfaces

• Reversible base allows keyboard platform to drop below static worksurface up to 32" deep

Independent adjustment for a fine-tuned fit. To create a uniquely personalized configuration, Solace incorporates the ability to make fine-tune independent adjustments to both Monitor and Keyboard Platform positioning.

Monitor Mount

The counter balance technology creates a simple to use, knob free experience so the user can adjust monitor height with minimal effort.

• Supports one 5 - 17 lbs monitor

• Optional Dual Monitor Adaptor supports two monitors 5 - 7 lbs each

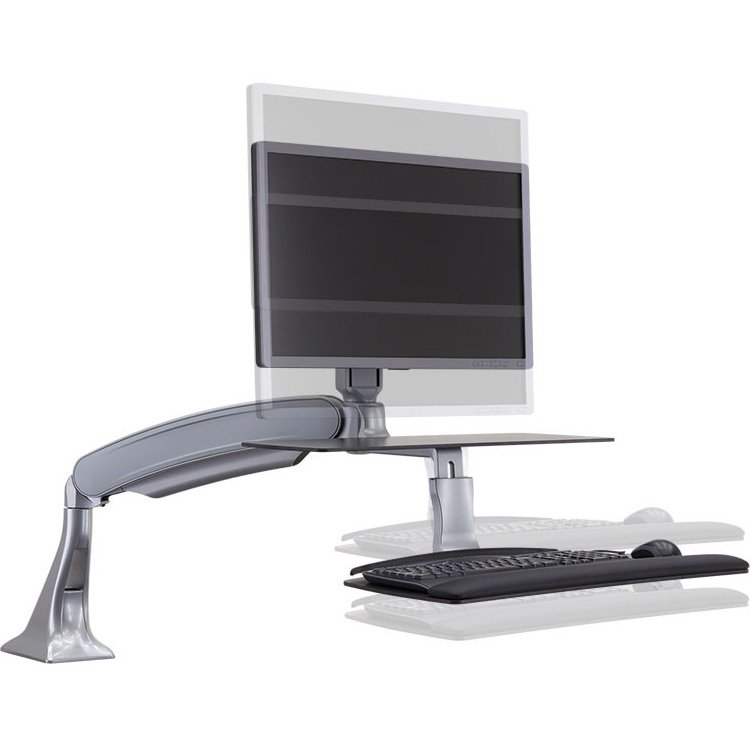

• Independent monitor tower allows 9.5" of vertical adjustability

• Tilt range 45° (+5°/-40°), Pan 90°, Rotate 180°

• Standard VESA (75 mm & 100 mm)

• Quick Release Adaptor Included for streamlined monitor installation

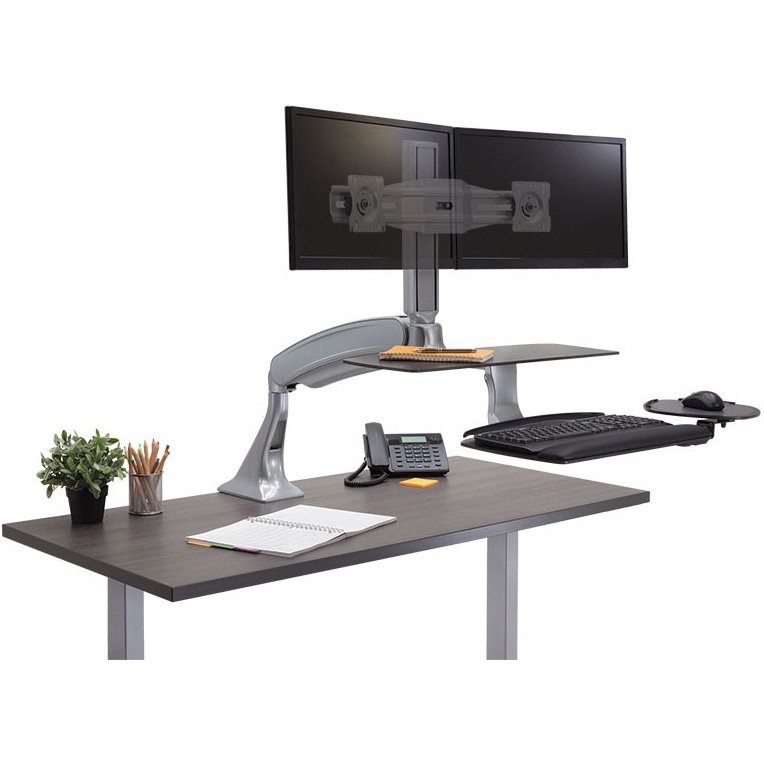

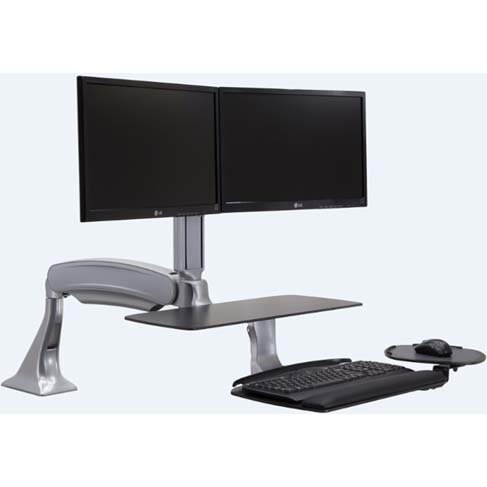

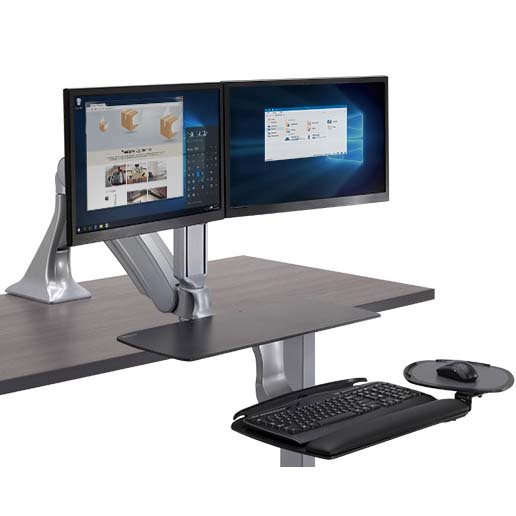

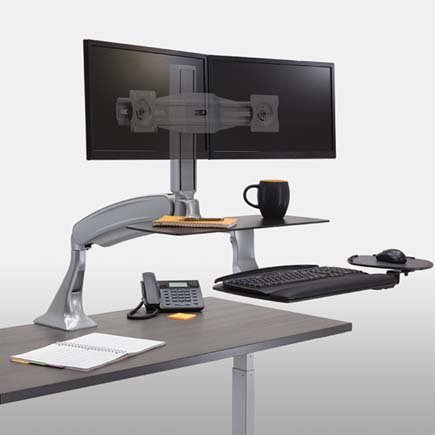

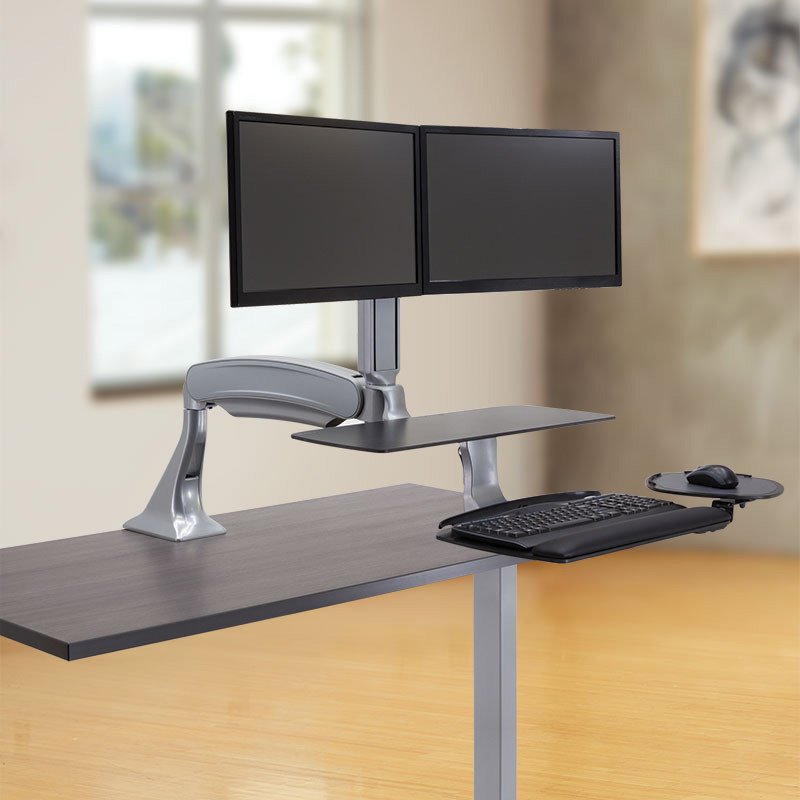

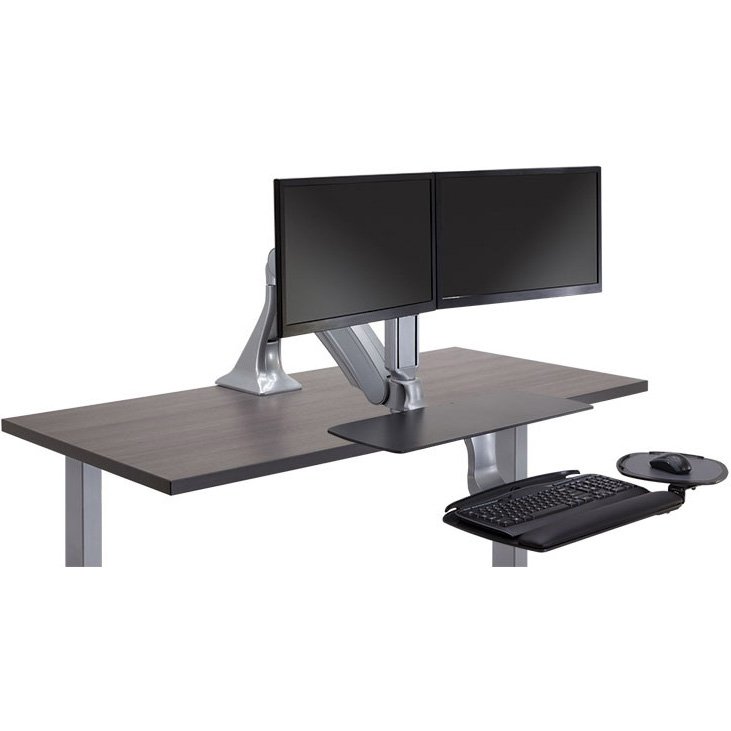

Optional Dual Monitor Adaptor

• Supports two monitors 5 - 7 lbs each and up to 24" wide

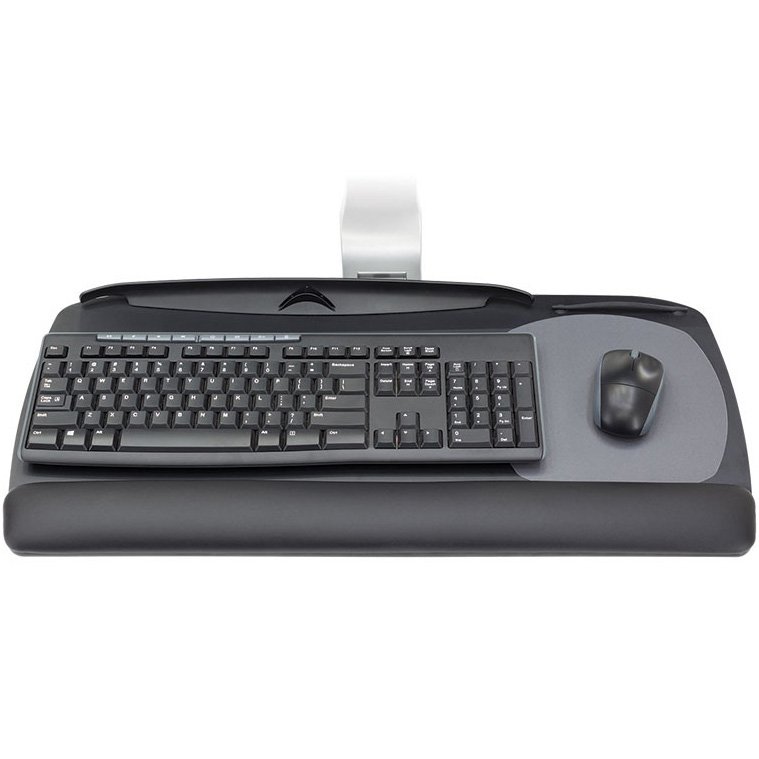

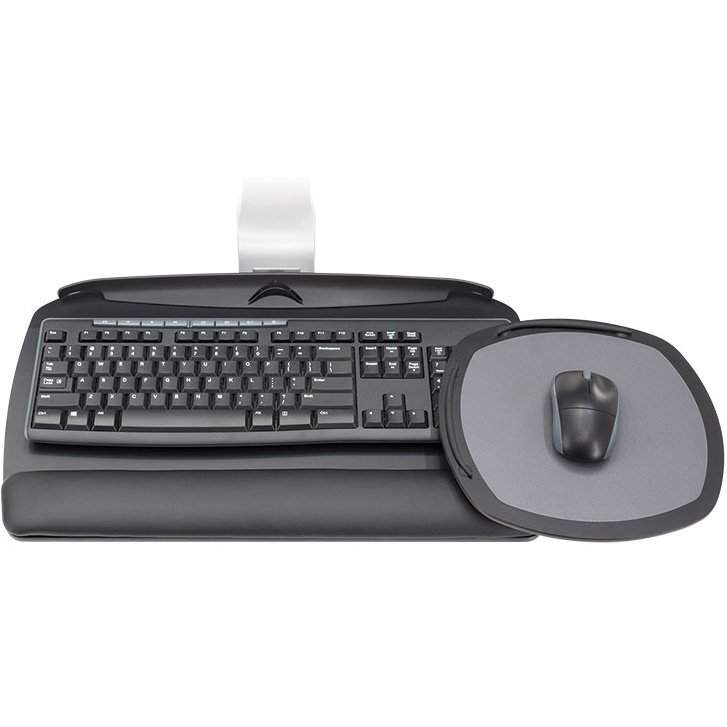

Keyboard Platform

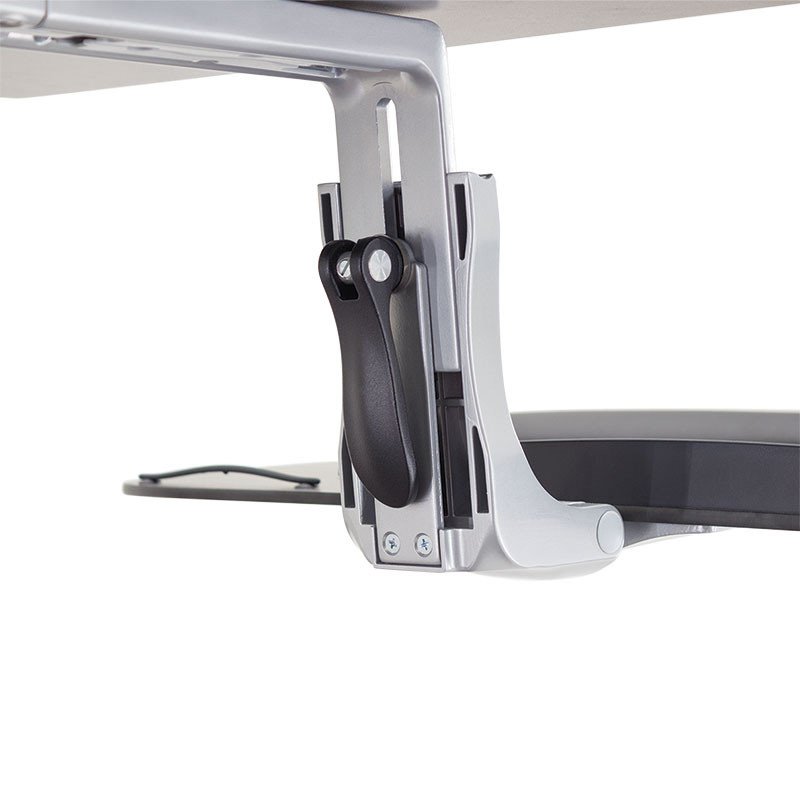

By unlatching the cam lever behind the keyboard platform, the user has ability to raise or lower the keyboard platform to ideal height.

• Standard features our UB182-25 Platform

• Premium features our Revo UB2100FT25 Platform

• Keyboard platform mounting surface allows over 3" independent vertical adjustability

• Folds up 90° for optimal storage

• Tilt Range (+4°/-15°), Rotate 180°

Secondary Surface

• Convenient worksurface for placing items when in standing position

Simple and Quick Installation

When compared to installing a height adjustable workcenter, a monitor arm and a keyboard platform, the Solace sit-to-Stand is far less complex and time consuming. Benefits of installing Solace Sit-to-Stand include

• Installing complete ergonomic solution with one connection point

• Allen wrenches provided for arm assembly and tension adjustments

• Included Tool Caddy attaches to Solace keeping tools at hand

• Base ships with upper clamp bracket pre-attached

• Keyboard Platform & Secondary Surface attach with just four screws each

• Quick Release Adaptor included for easy monitor attachment

 Average Installation Time

Environmental Considerations

Solace design was centered around green business practices with special focus on environmental sustainability. By incorporating recycled material in the manufacturing process, Solace contributes toward LEED credit ratings.

LEED Recyclability Calculations

LEED % recycled content: Total post-consumer recycled %, plus 1/2 pre-consumer/post industrial recycled %.

Option 1: Model

Option 2: Dual Monitor
