Ergotron 45-436-026 MX Mini Desk Mount Monitor Arm

Be the first to review this product
Product ID: 18473
Highlights
  • Desk mount monitor arm for lightweight monitors
  • Height adjustment: 13"
  • Horizontal extension: 19.5"
  • Screen size: For monitors up to 24" in diagonal screen size
  • Weight capacity: For monitors up to 8 lbs
  • Designed for installation on Workfit T and WorkFit TL
  • Please see, if you want a wall mount version of this arm
Recommended Accessories
List Price: $315.00
Our Price: $149.95
Shipping: $14.95 *
* applies to Contiguous United States

Description

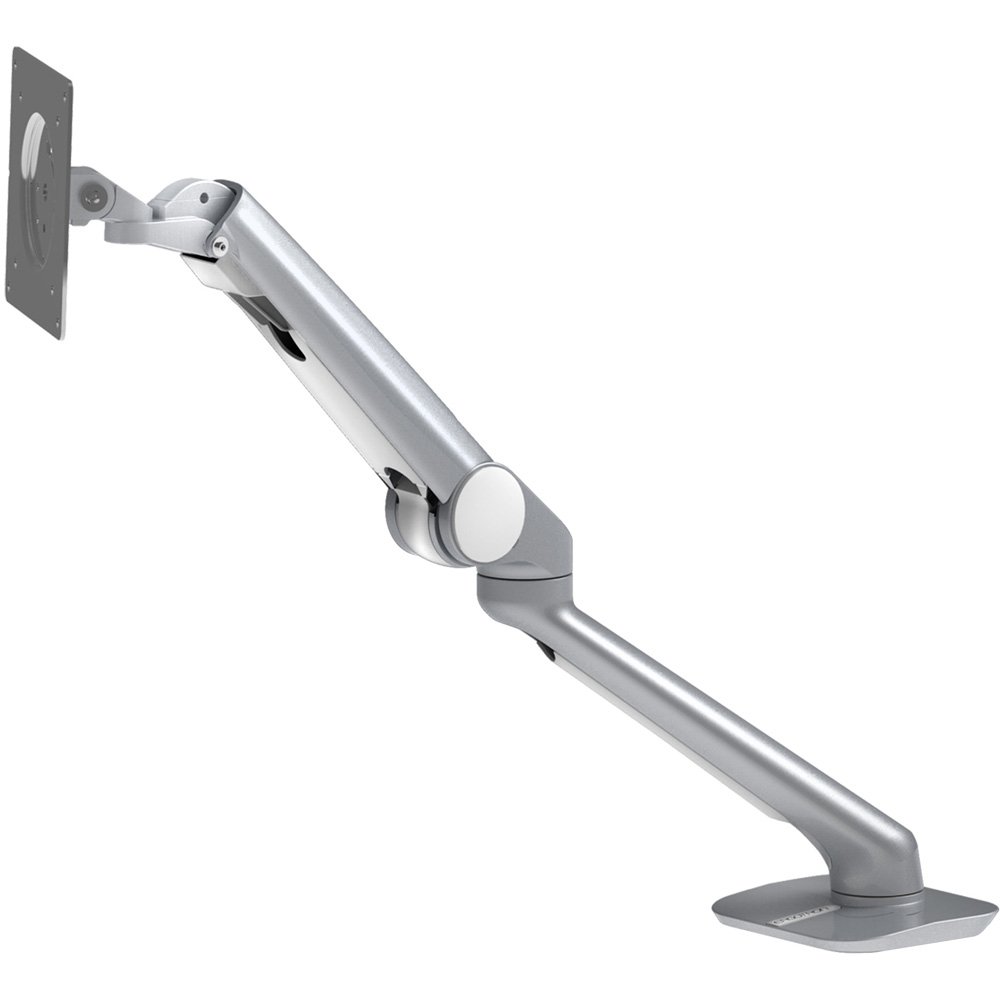

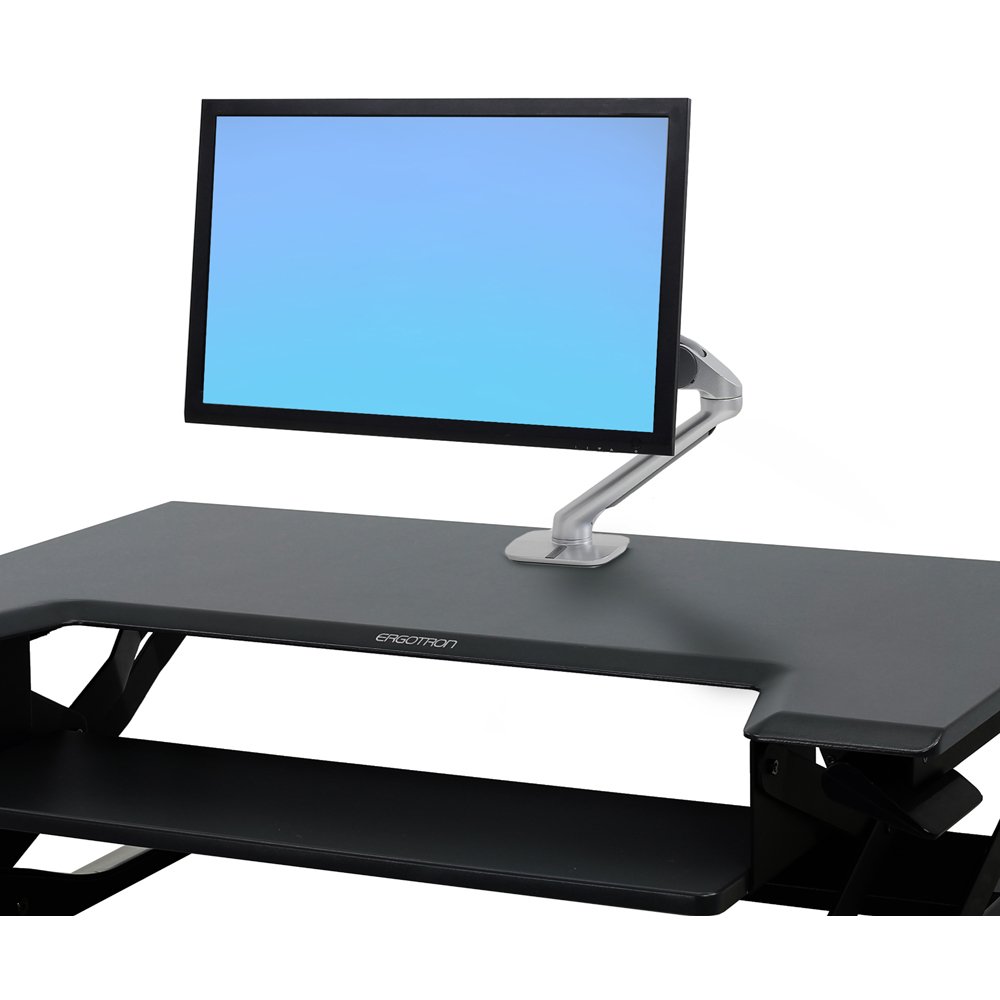

Ergotron 45-436-026 MX Mini is the latest design and is designed for lightweight monitors. The arm is stylish with polished aluminum finish. With a shorter reach than the LX arm, this arm is the recommended monitor arm for WorkFit-T and WorkFit-TL.

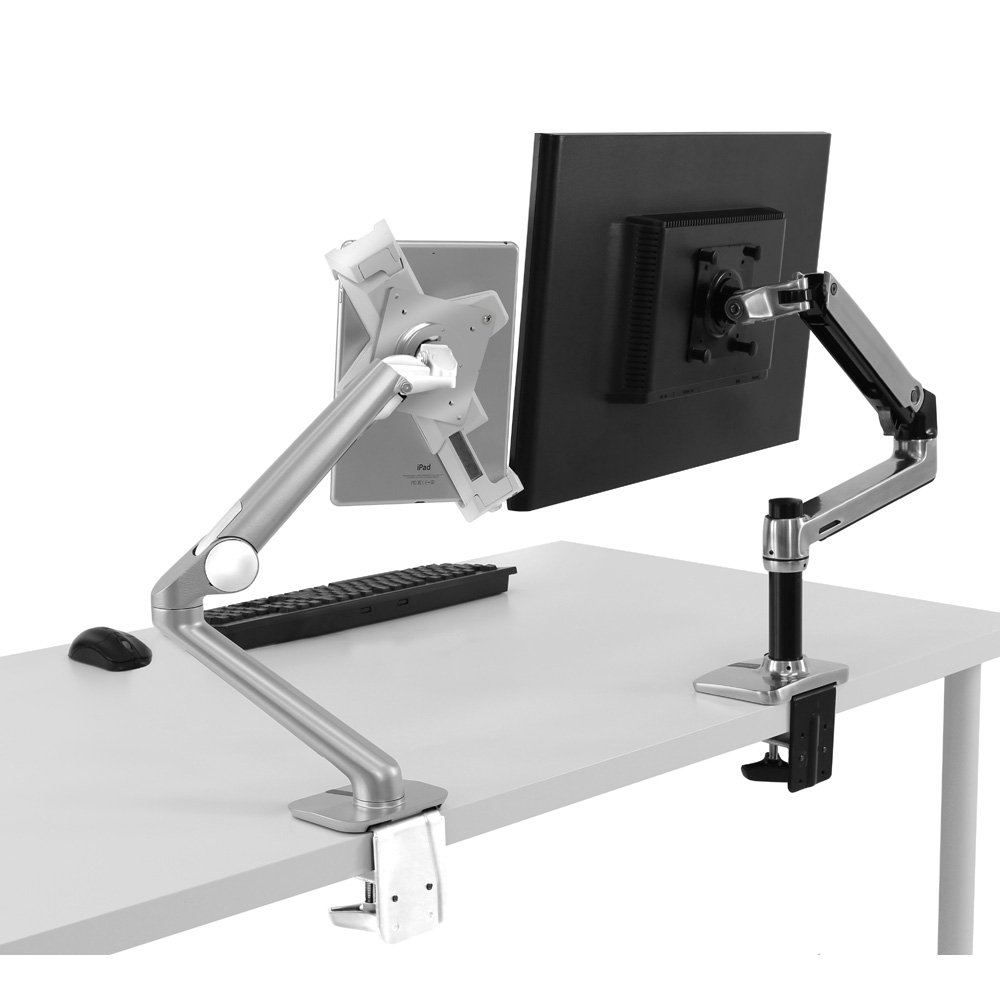

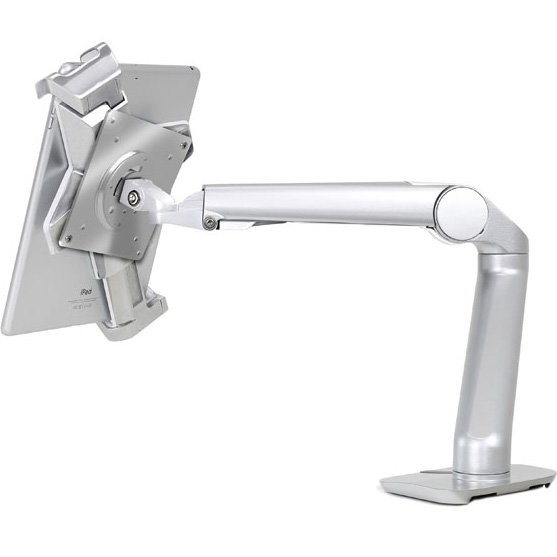

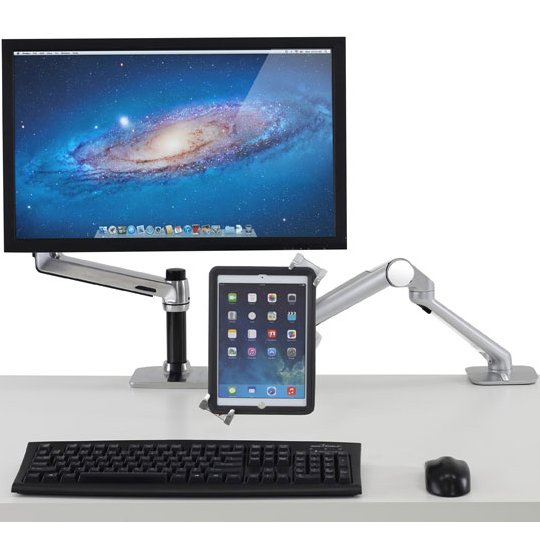

When purchased with the lockable tablet mount, Ergotron 45-460-026, the arm will convert into a tablet holder for Apple iPad and Microdoft Surface.

The MX Mini is an ideal mount for lightweight displays. Combining premium features with an attractive finish, it offers a slim profile and expansive height adjustment range along with full tilt, pan and rotation capability. Gain ergonomic comfort and enhanced productivity with a stylish and affordable monitor arm. To create an ultra-flexible tablet arm, add an accessory tablet holder.

Technical Drawing

Technical drawing for Ergotron 45-436-026 MX Mini Desk Mount Monitor Arm

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 8 lbs

3.6 kg

13"

33.0 cm

95° 360° 360° MIS-D

Product Information

Part Number 45-436-026
Description MX Mini Desk Mount Arm (polished aluminum)
Includes
  • Arm

  • Extension

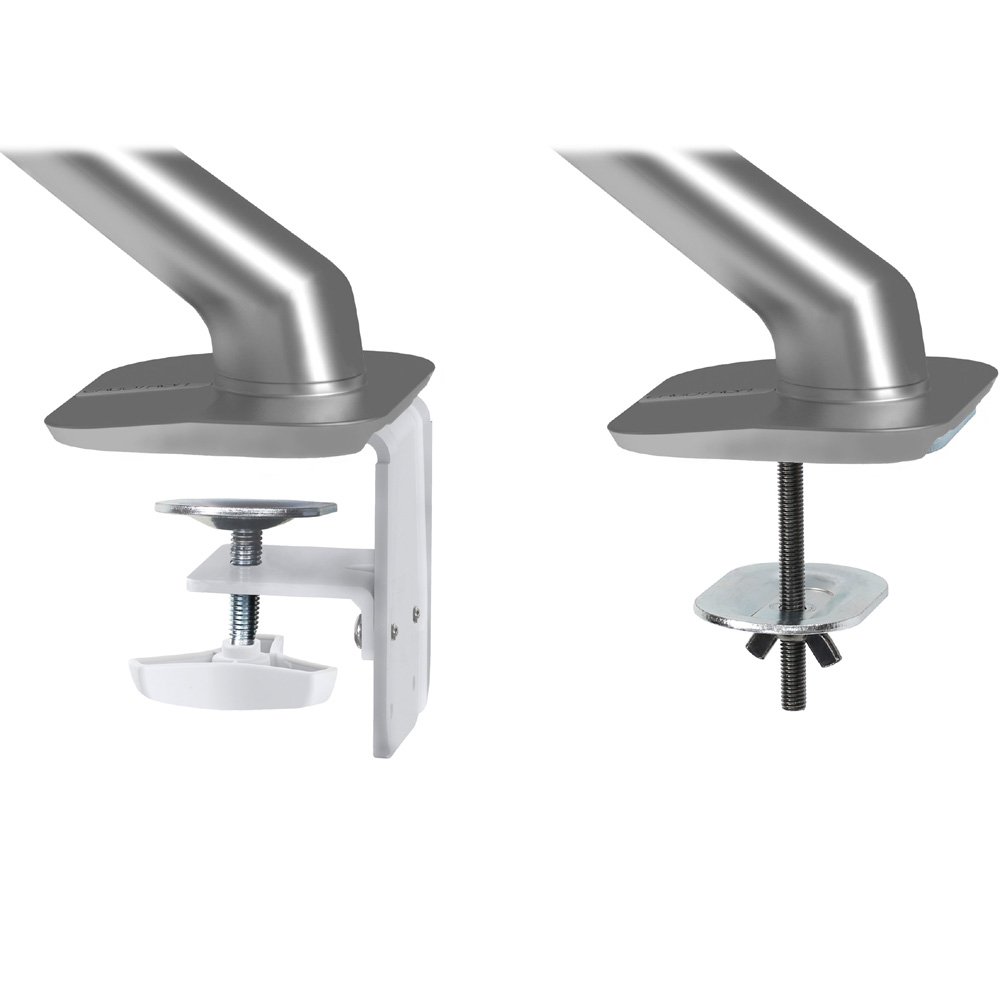

  • Desk clamp

  • Grommet mount

  • Monitor attachment hardware

  • Installation hardware for WorkFit-T/TL

Tilts 90° up and 5° down
Pans 180° at base with stop
Portrait/Landscape Portrait/landscape rotation includes position lock
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Tablet Holder When used with tablet, an accessory tablet holder (45-460-026 or 80-106-085) is required
Product Weight 6 lbs (2.7 kg)
Shipping Dimensions 16" x 13.75" x 5.5" (41 x 35 x 14 cm)
Shipping Weight 7 lbs (3.2 kg)
Warranty Ten (10) years

Benefits

  • Specially designed for mounting lightweight monitors and tablets like Apple iPad and Microsoft Surface

  • When combined with the accessory Lockable Tablet Mount, the MX Mini becomes a secure and ergonomic tablet arm solution

  • Use with a tablet to create a handy document camera: 90°+ tilt allows tablet to be positioned parallel with worksurface

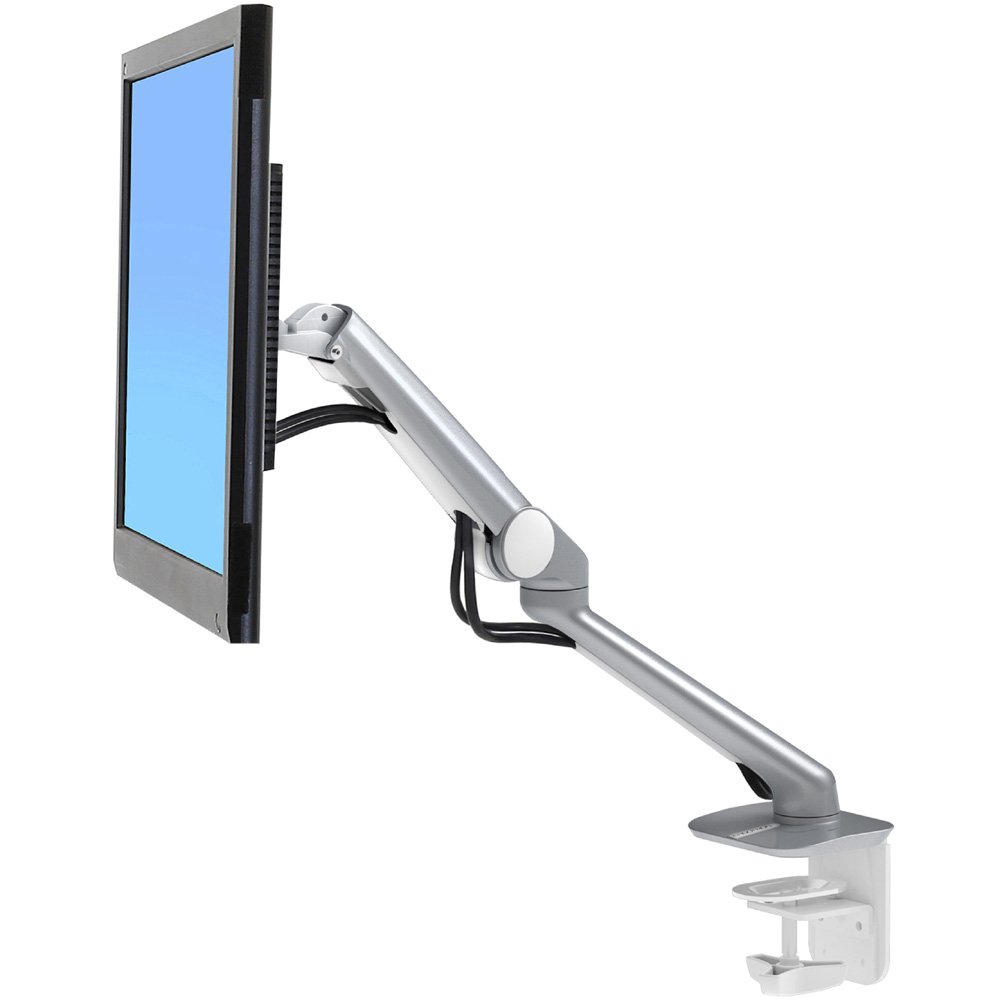

  • Cable management feature captures and routes cables inside the arm and extension, out of the way

  • Free up your desktop to increase your workspace

  • Extends a monitor or tablet screen up to 19.5" (50 cm); push your display out of the way when not in use

  • Easy to use: simple installation and effortless operation

  • Includes hardware for installation on the popular WorkFit-T/TL Sit-Stand Desktop Workstation

  • Extremely durable with 10-year warranty

Model 45-436-026
Manufacturer Ergotron
Part Number 45-436-026
UPC 698833057515
Color Polished aluminum
Monitor Size Up to 24"
Weight Capacity Up to 8 lbs (3.5 kg)
Lift (32 cm) 13 in
Tilt 95 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 16" x 13.75" x 5.5" (41 x 35 x 14 cm)
Shipping Weight 7 lbs (3.2 kg)
Warranty Ten (10) years

Be the first to review this product

Ergotron 45-436-026 MX Mini Desk Mount Monitor Arm

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
