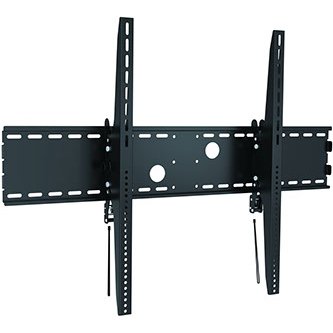

Ergotech LD60100-T X-Large Heavy-Duty Tilting Curved TV Wall Mount

Ergotech LD60100-T X-Large Heavy-Duty Tilting Curved TV Wall Mount

This product has been discontinued.

Specifications

TV Size Supports curved and flat panels 60" to 100"
TV Weight Capacity Up to 220 lbs
Product Dimensions 130mm x 1140mm x 832mm
Supported VESA Patterns 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 1000 x 400, 1000 x 600 and 1000 x 800
Tilt Up 15° or down 15°
Warranty 5 years
Material Steel

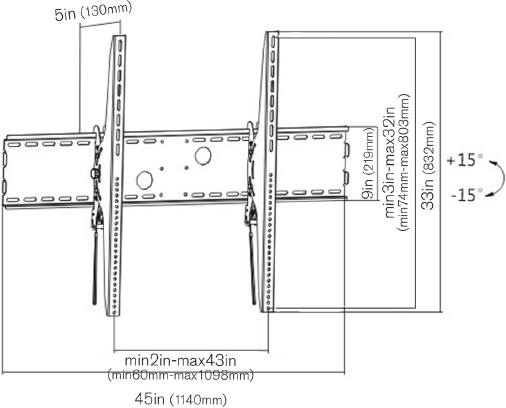

Technical Drawing

Technical Drawing for Ergotech LD60100-T X-Large Heavy-Duty Tilting Curved TV Wall Mount

Features

  • Supports curved and flat panel displays 60" to 100"

  • Supports up to 220 lbs

  • Effortless tilting allows easy angle adjustment without use of tools

  • Automatic click-spring lock with easy-release cord

  • Tilts up 15° or down 15° without the use of tools

  • Made of steel

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model LD60100-T
  • Manufacturer Ergotech
  • Part Number LD60100-T
  • TV Size 60" to 100"
  • TV Weight Capacity Up to 220 lbs
  • Dimensions 130mm x 1140mm x 832mm
  • Mounting Pattern VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 1000 x 400, 1000 x 600, 1000 x 800
  • Warranty 5 years
  • Mounting Options Wall
  • Material Steel
  • Tilt Up 15 degree or down 15 degree
