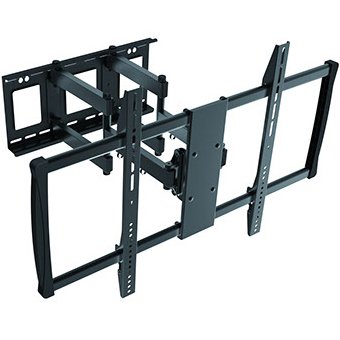

Ergotech LD60100-A X-Large HD Full-Motion Curved TV Wall Mount
This product has been discontinued.
Specifications
| TV Size | Supports curved and flat panels 60" to 100" |
| TV Weight Capacity | Up to 176 lbs |
| Product Dimensions | 70-625mm x 625mm x 1050mm |
| Supported VESA Patterns | 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600 and 600 x 900 |
| Tilt | Up 5° or down 15° |
| Swivel | 45° |
| Warranty | 5 years |
| Material | Steel and Plastic |

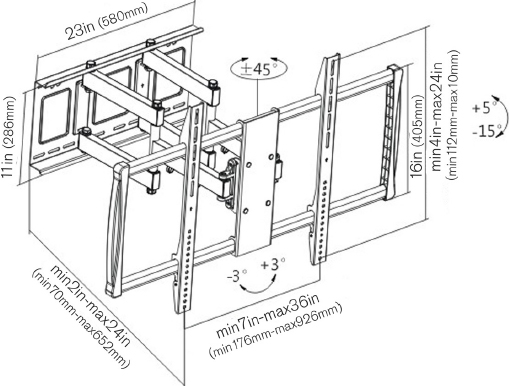

Technical Drawing
Features
Supports curved and flat panel displays 60" to 100"
Supports up to 176 lbs
No tool assembly for fast installation
Articulating arm with six pivots offers full range of motion
Built-in level adjustment ensures perfect positioning
Cable clips keep cables organized and protected
Key hole wall plate allows easy installation
Tilts up 5° or down 15° without the use of tools; 45° swivel left and right
Made of Steel and Plastic
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model LD60100-A
- Manufacturer Ergotech
- Part Number LD60100-A
- Mounting Options Wall
- TV Size 60" to 100"
- TV Weight Capacity Up to 176 lbs
- Dimensions 70-625mm x 625mm x 1050mm
- Mounting Pattern VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400, 800 x 400, 800 x 600, 600 x 900
- Warranty 5 years
- Material Steel and Plastic
- Tilt Up 5 degree or down 15 degree
- Swivel 45 degree
