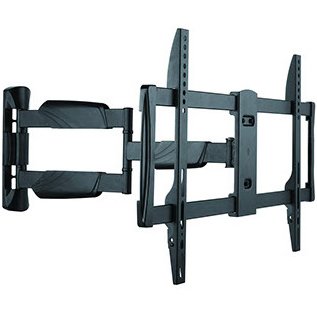

Ergotech LD3770-A Elegant Full-Motion TV Wall Mount

Ergotech LD3770-A Elegant Full-Motion TV Wall Mount

This product has been discontinued.

Specifications

TV Size Supports flat panels 37" to 70"
TV Weight Capacity Up to 77 lbs
Product Dimensions 49-610mm x 730mm x 403mm
Supported VESA Patterns 200 x 200, 400 x 200, 300 x 300, 400 x 400 and 600 x 400
Tilt Up 5° or down 15°
Warranty 5 years
Material Steel and Plastic

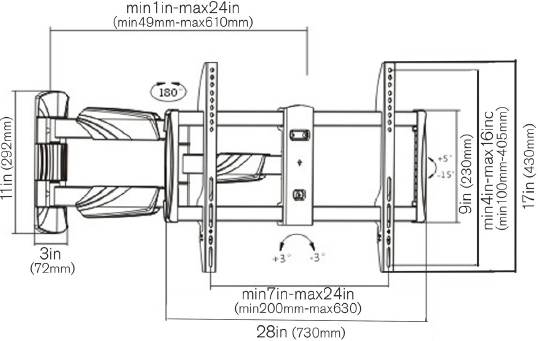

Technical Drawing

Technical Drawing for Ergotech LD3770-A Elegant Full-Motion TV Wall Mount

Features

  • Supports flat panel displays 37" to 70"

  • Supports up to 77 lbs

  • Freely tilting allows easy TV angle adjustment

  • Swiveling arm offers maximum viewing flexibility

  • Build in level offers 3° left and right adjustment for perfect positioning

  • Integrated cable management system keeps cables organized and protected

  • Tilts up 5° or down 15° without the use of tools

  • Made of Steel and Plastic

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model LD3770-A
  • Manufacturer Ergotech
  • Part Number LD3770-A
  • TV Size 37" to 70"
  • TV Weight Capacity Up to 77 lbs
  • Dimensions 49-610mm x 730mm x 403mm
  • Mounting Pattern VESA 200 x 200, 400 x 200, 300 x 300, 400 x 400, 600 x 400
  • Warranty 5 years
  • Mounting Options Wall
  • Material Steel and Plastic
  • Tilt Up 5 degree or down 15 degree
