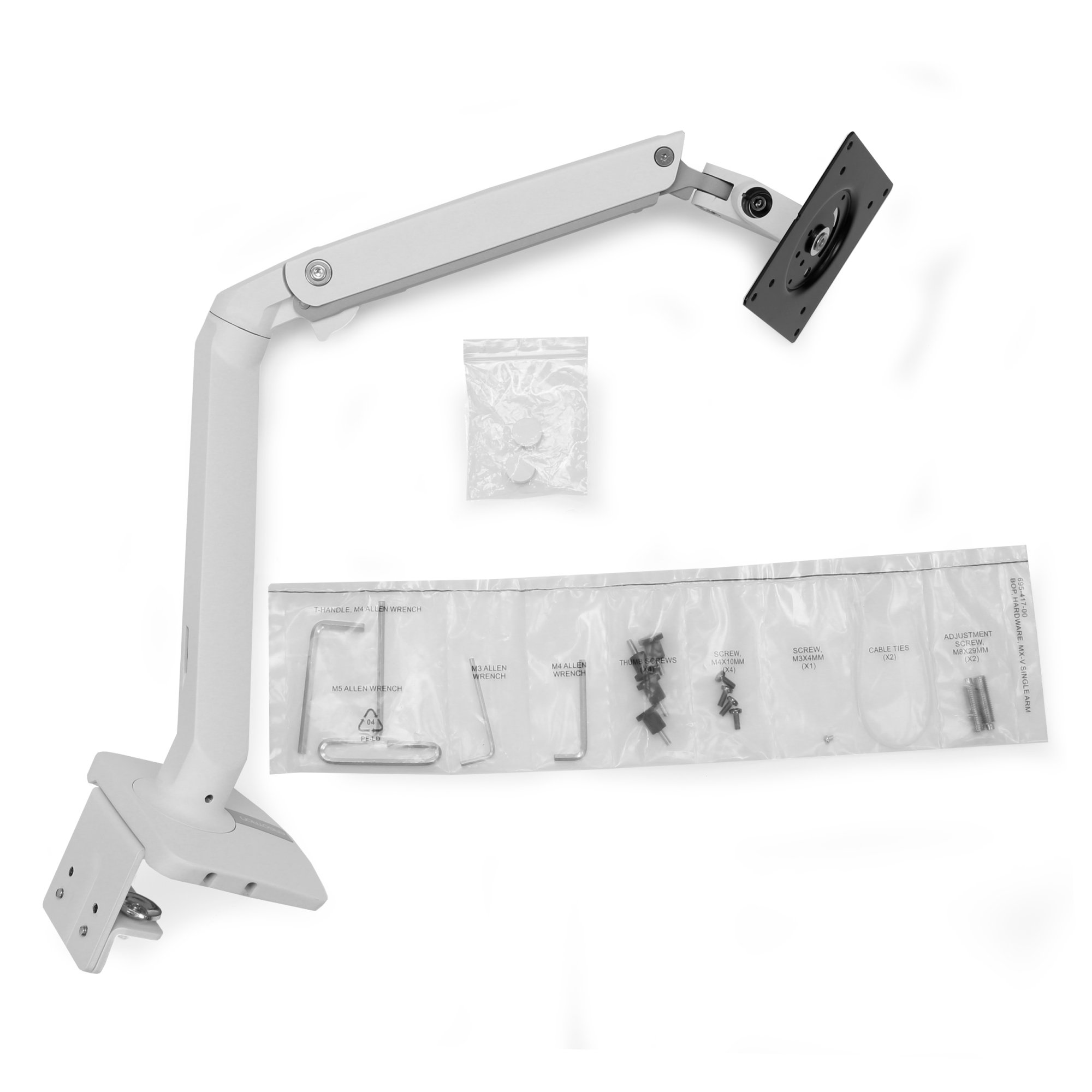

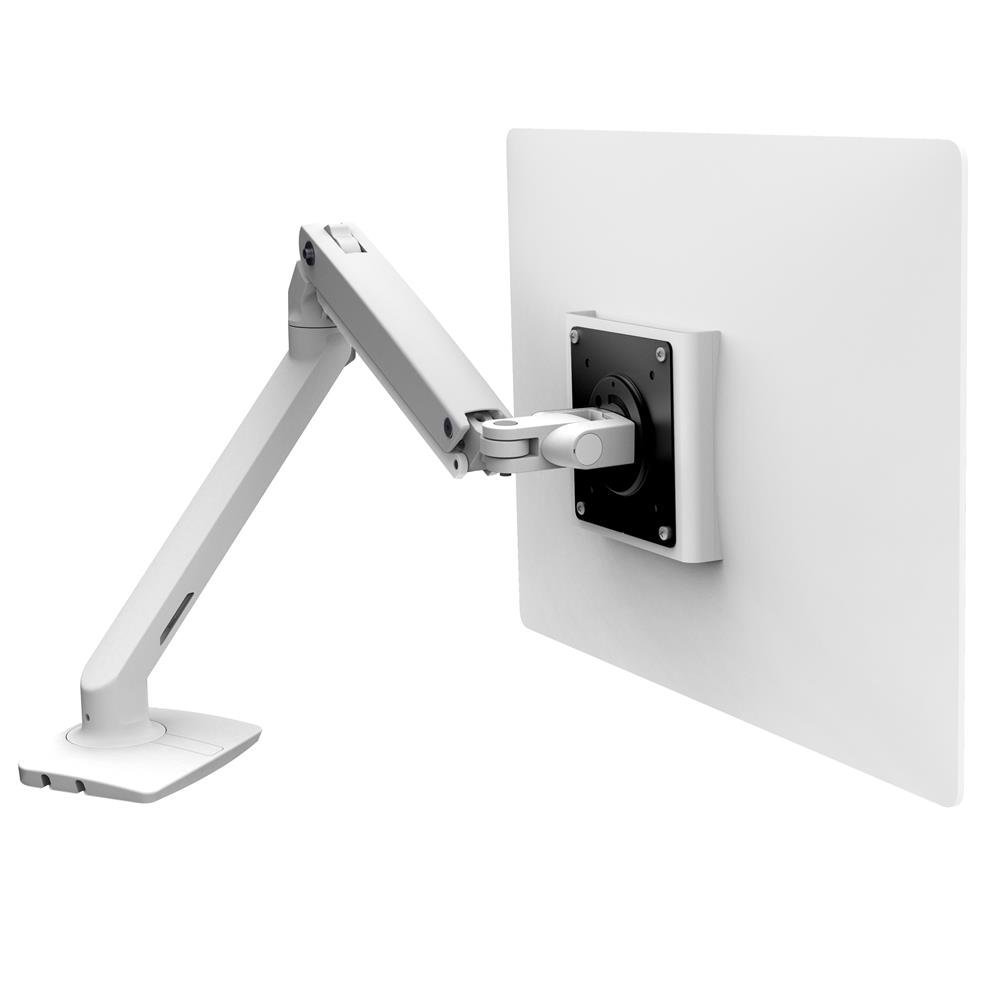

Open box: Ergotron 45-486-216 MXV Desk Mount LCD Monitor Arm (white)
Description
Add style to your desk without sacrificing functionality. The sleek
and lightweight MXV incorporates a modern V-shaped design with proven
engineering to create a stable yet flexible platform for your screen.
With a slim profile, Ergotron 45-486-216 MXV offers 13" (33 cm) of
height adjustment, integrated tilt and more - all on a convenient swivel
base. The arm’s adjustability helps increase viewing comfort, while its
upscale finish leaves a stylish impression.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |

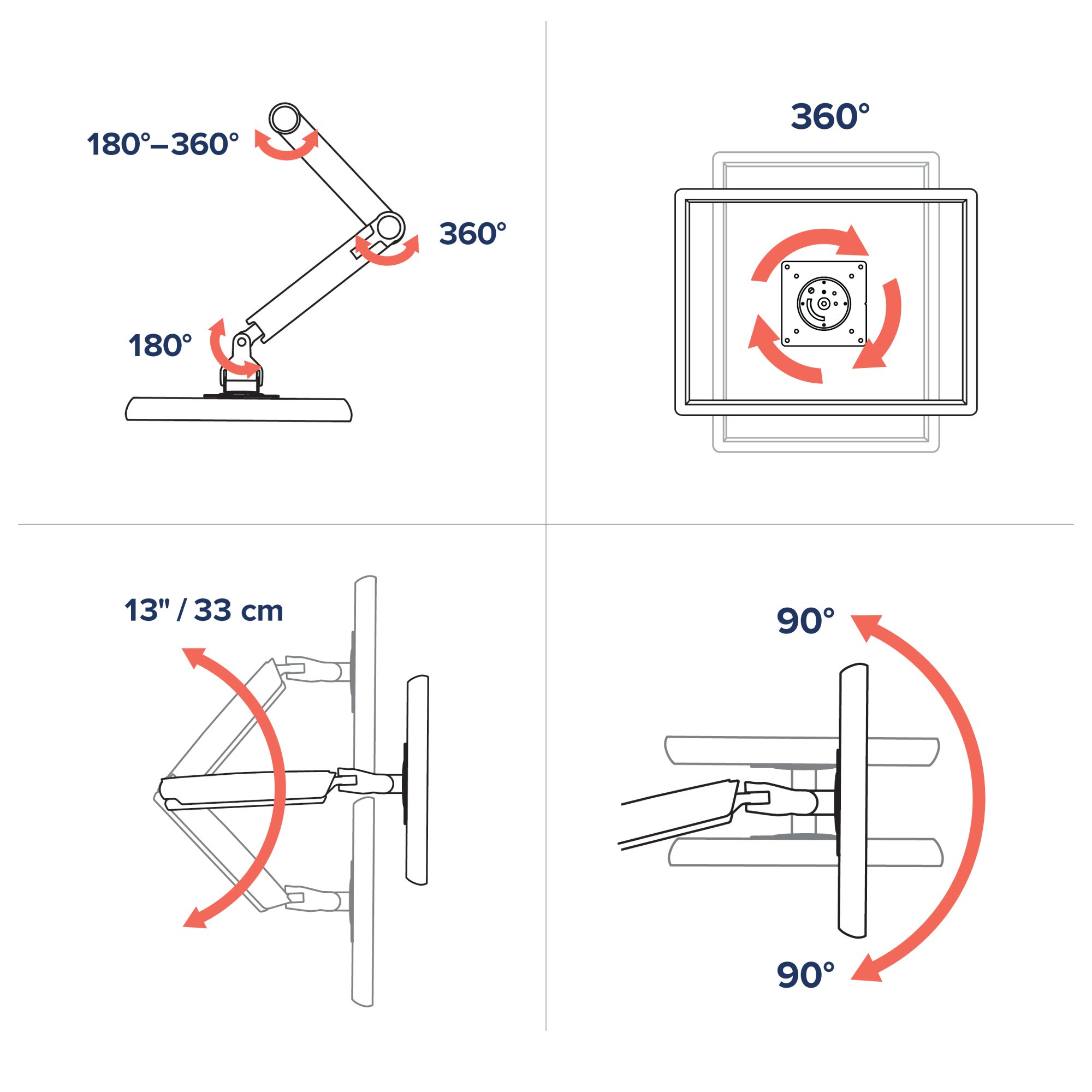

| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 34" |
7-20 lbs 3.2-9.1 kg |
13" 33.0 cm |
180° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-486-216 (white) |
| Description | MXV Desk Mount LCD Monitor Arm |
| Includes |
|
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Arm Folds | Back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |

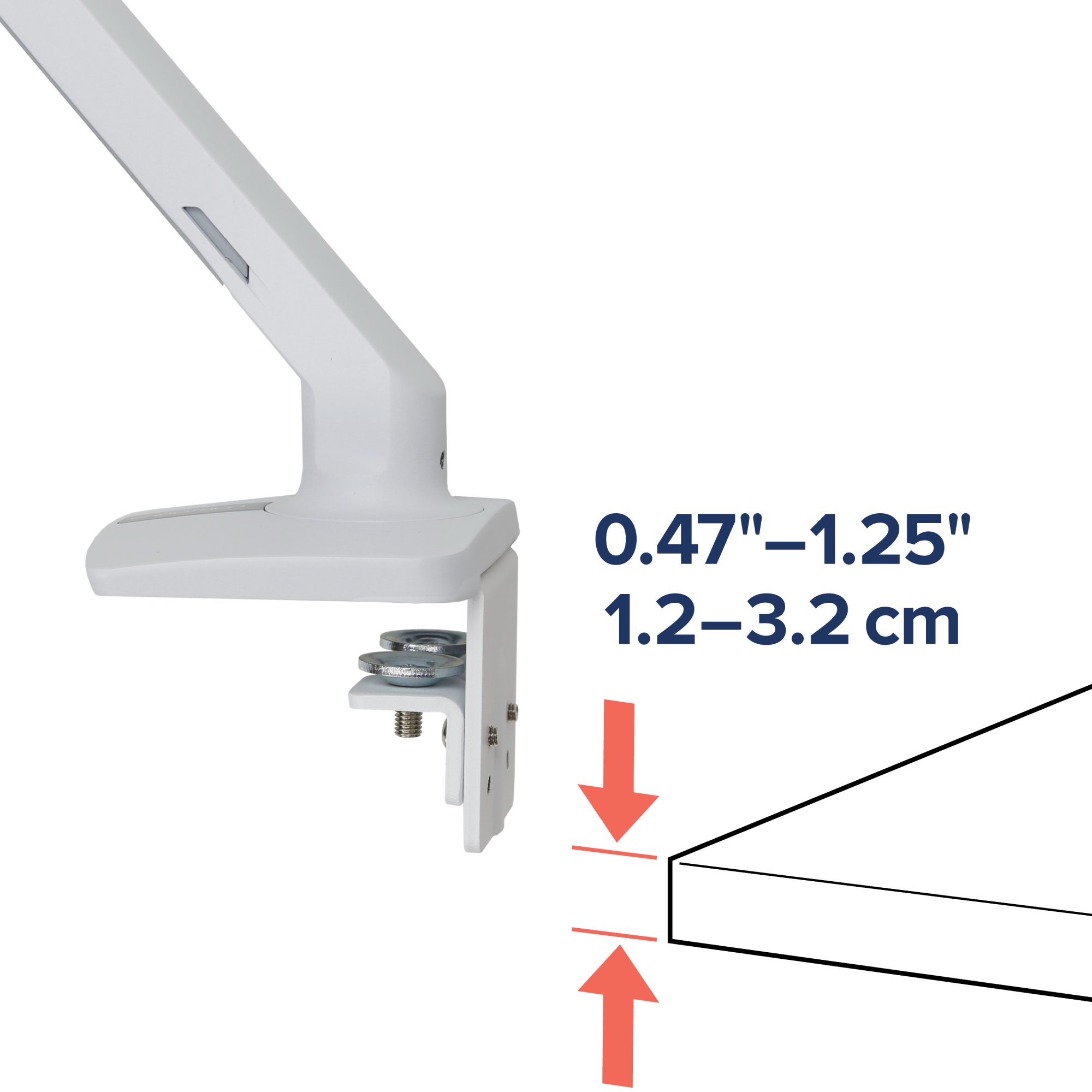

| Mounting Options | Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick |
| Grommet Mount | An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-110 |
| Desk Clamp | Has anti-rotation screws to prevent base from slipping |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Tilt Range | 90° backward, 90° forward |
| Pan Range | 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360° |
| Extension Range | 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate |
| Product Weight | 6.4 lbs (2.9 kg) |
| Shipping Dimensions | 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm) |
| Shipping Weight | 7.5 lbs (3.4 kg) |
| Warranty | Ten (10) years |
Benefits
Saves valuable desk space with the cable management system and narrower profile - 25% slimmer than the LX arm
Allows you to easily adjust your display with a light touch thanks to patented Constant Force technology
Creates additional flexibility with a friction pivot that offers a 180-degree tilt
Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
Monitor can extend out up to 22.2" (56 cm)
Sits securely on your workstation with a low-profile desk clamp base that can fit in tight places
Keeps your monitors within your desk space with a solid rotation-stop, perfect for call centers and back-to-back desks
Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Arrives fully assembled for you to easily attach to your desk, add your monitor and adjust the tension
