Ergotron 45-358-026 LX Sit-Stand Wall Mount System

Be the first to review this product
Product ID: 17444
Recommended Accessories
Our Price: $834.73
Shipping: $54.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Animation of Ergotron LX Sit-Stand Wall Mount System with Medium CPU Holder

Description

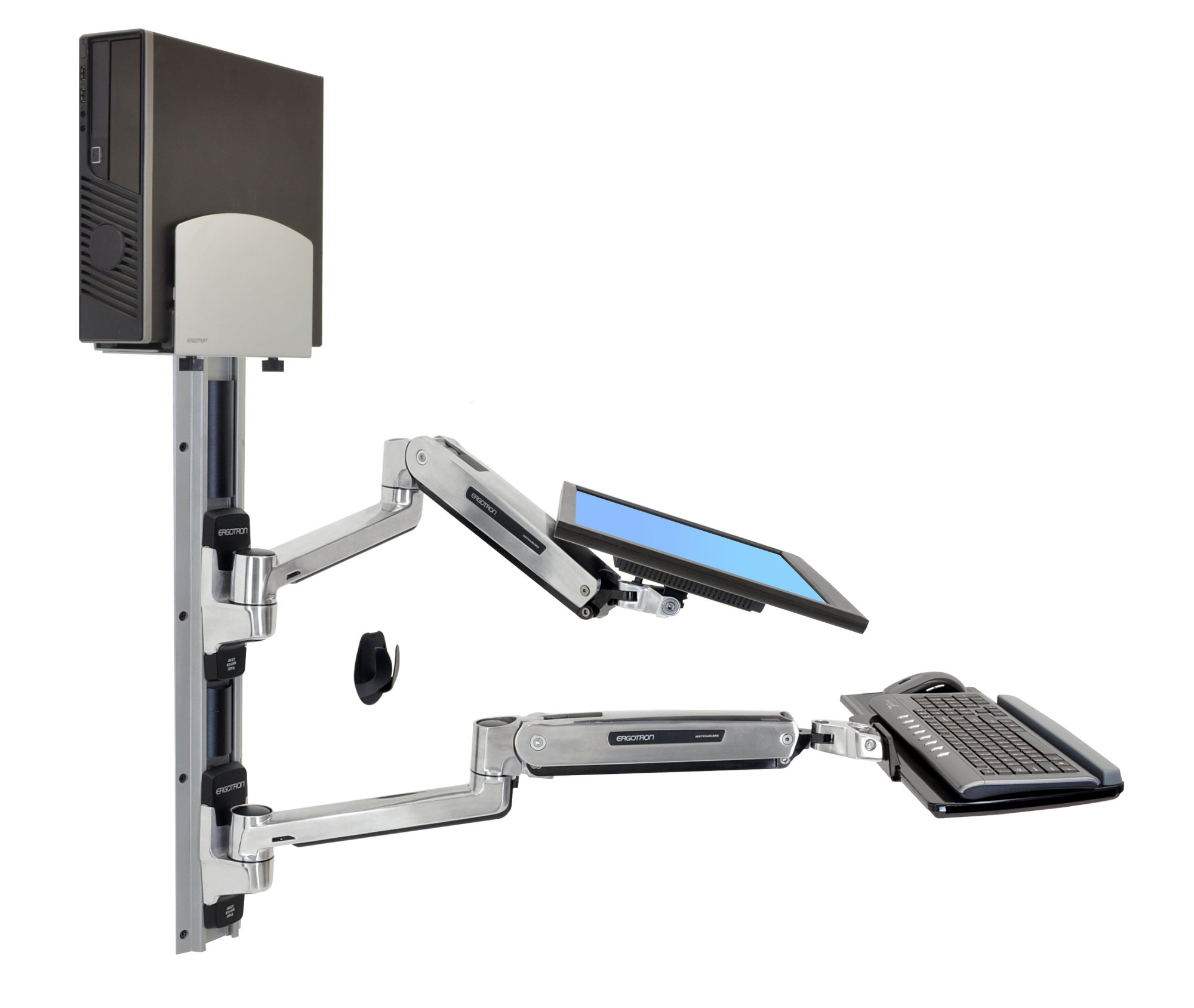

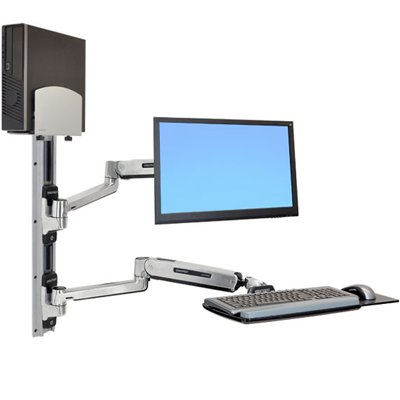

Ergotron 45-358-026 comes with Medium Silver CPU Holder. This is a complete solution that accommodates an LCD, keyboard and CPU, creating a sit-stand computer workstation. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.



Technical Drawing

Technical drawing for Ergotron 45-358-026 LX Sit-Stand Wall Mount System



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 42"

7-25 lbs

3.2-11.3 kg

20"

51 cm

75° 360° 360° MIS-D/E/F



Product Information

Part Number

45-358-026

Description

LX Sit-Stand Wall Mount System with Medium CPU Holder (polished aluminum, silver CPU holder)

Includes

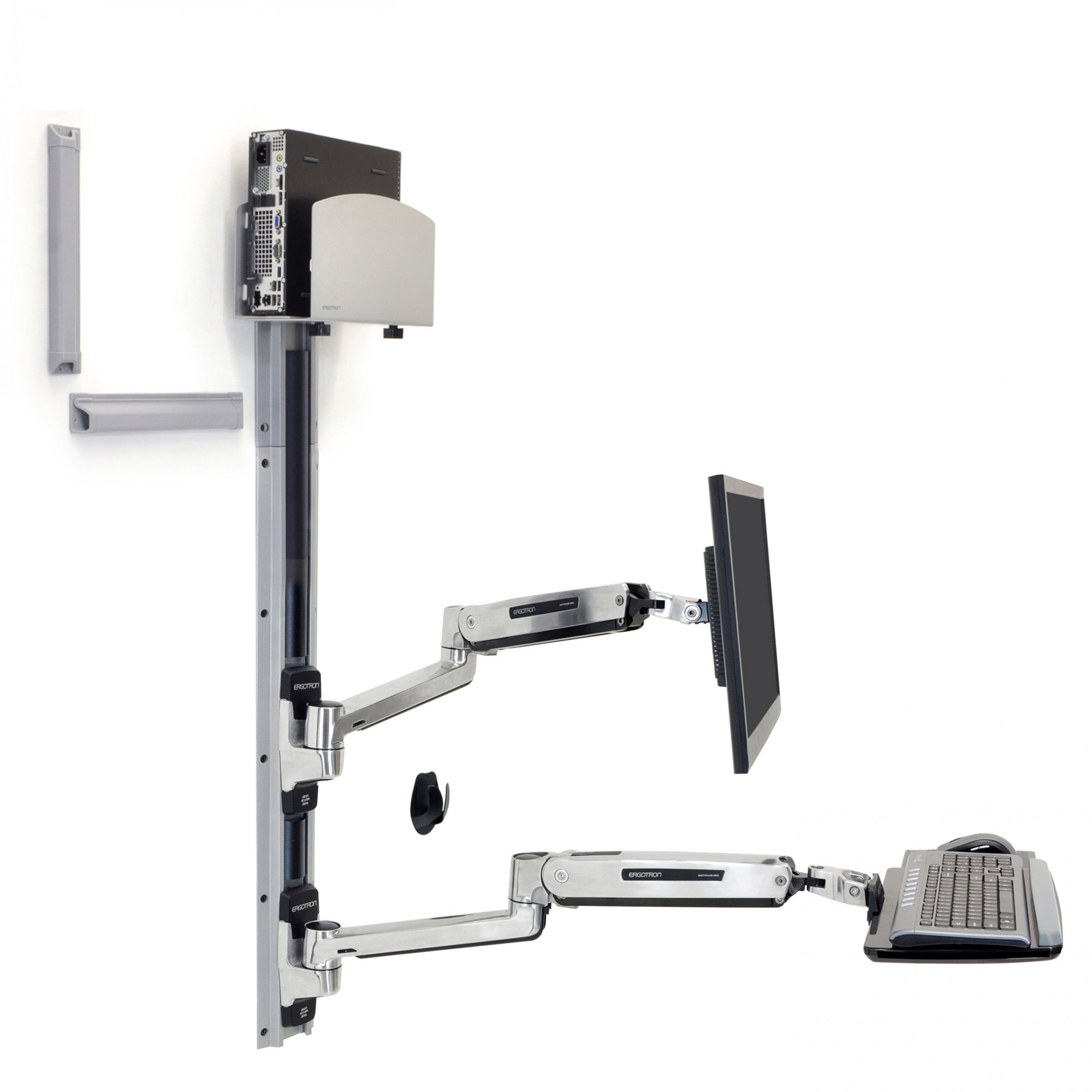

  • 10" and 34" Wall Tracks with (2) black track covers
  • LX Sit-Stand Wall Mount LCD Arm
  • LX Sit-Stand Keyboard Arm
  • Wrist rest
  • Mouse holder

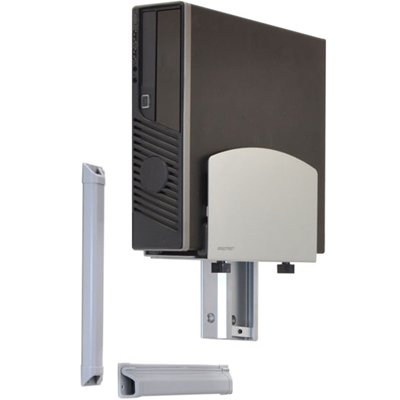

  • Medium CPU Holder
  • Two (2) 10" Cable Channels
  • Mounting kits for hollow-wall and Wall-stud installation

Quality Tested

10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Weight Capacity

Display = 7–25 lbs (3.2–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). Monitor depth may affect weight capacity

Tilt

Monitor tilts 70° up and 5° down

Rotation Stop

Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall

Locking Connections

Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts

Mounting Standards

VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

CPU Size Range

3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder

Base

Includes theft-deterrent anchor holes for cable locks. CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width

NOTE

Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights

Product Weight

39 lbs (17.8 kg)

Shipping Dimensions

36.4" x 22.3" x 6.8" (93 x 57 x 17 cm)

Shipping Weight

47.3 lbs (21.5 kg)

Warranty

Ten (10) years



Benefits

  • Creates a complete and compact workstation

  • Articulating arms feature full tilt/pan capability and 20" (51 cm) height adjustment, allowing users to sit or stand while computing

  • Extends LCD up to 33" (84 cm); keyboard tray extends up to 42" (107 cm); push your display and keyboard out of the way when not in use

  • Ideal for space-constrained rooms - keyboard folds to within 6.8" (17 cm) of wall in storage position. LCD arm folds back to a depth of 5.5" (14 cm)

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient

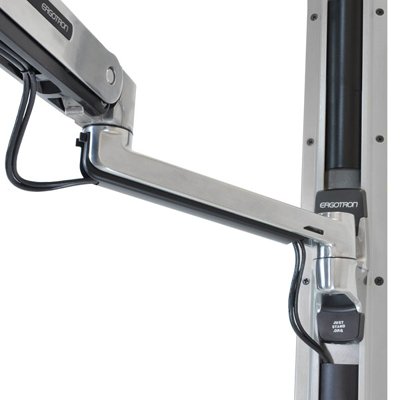

  • Cable management feature routes cables under the arm, out of the way

  • Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses

  • Secure installation - locking connections between arm, extension and base

  • Easily change placement of arms on Wall Track by loosening set-screws

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Patented Constant Force lift-and-pivot motion technology





Model 45-358-026
Manufacturer Ergotron
Part Number 45-358-026
UPC 698833033960
Color Polished aluminum, silver CPU holder
Monitor Size Up to 42"
Weight Capacity Display = 7–25 lbs (3.2–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). Monitor depth may affect weight capacity
Lift (51 cm) 20 in
Tilt Monitor tilts up 70 degree and down 5 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Extension Extends LCD up to 33" (84 cm), keyboard tray extends up to 42" (107 cm)
CPU Dimension 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
Weight 39 lbs (17.8 kg)
Shipping Dimensions 36.4" x 22.3" x 6.8" (93 x 57 x 17 cm)
Shipping Weight 47.3 lbs (21.5 kg)
Warranty Ten (10) years
