Titanium

Graphite

Polished Aluminum

Humanscale Textiles are as unique as the chairs they adorn. The cushion textiles offer four-way stretch to accommodate the ergonomic requirements of Freedom and Liberty, and extreme durability to accommodate the demands of contract applications. Likewise, the mesh offerings for Liberty were designed to meet the specific ergonomic, durability and aesthetic requirements of this next-generation mesh chair.

Humanscale’s diverse selection of fabric, leather and leather alternative textiles far exceed performance standards for contract upholstery, and most are specifically designed to meet the demanding requirements of our award-winning seating. In keeping with our commitment to the environment, Humanscale works exclusively with mills that maintain sustainable manufacturing practices.

Squiggle Textile

Textile Code: Vertical: S, Horizontal: G
Textile Grade: 0
Seating Collections: Freedom, Liberty

Humanscale introduces Squiggle, a new patterned textile for Freedom and Liberty seating created by award-winning textile designer, Lori Weitzner. Squiggle is part of Humanscale’s new Movement collection and was inspired by the movement of ripples across an otherwise still body of water. It features an innovative weave structure that creates a modern, organic wave pattern. The design comes in nine rich colorways and can be applied both horizontally and vertically to Humanscale seating.

Specifications

• Content: 100% Pre-Consumer Recycled Polyester

• Width: 54" useable

• Weight: 9.43 oz/ly

• Weave Repeat: 4.1" vertical, 7.14" horizontal

• PPI: 25.4

• EPI: 86

• Seam Slippage: Weft: 8.74 lbs., War: 76.3 lbs., ASTM D 4034

• Grab Test: Weft: 193 lbs., War: 165 lbs., ASTM D 5034

• Abrasion: 150,000 double rubs, ASTM D 4157, #10 cotton duck, Wyzenbeek

• Pilling Resistance: Class 4.5, ASTM D 3511

• Flammability: Passes California technical bulletin 117, section E

• Colorfastness to Light: Class 4.5, 40 hours, AATCC Test Method 16, Option 3

• Crocking: Dry: Grade 4.5-5, Wet: Grade 4.5-5, AATCC Test Method 8

Wave Textile

Textile Code: W Textile Grade: 1
Seating Collections: Freedom, Liberty

Developed initially for sportswear, Wave responds to the unique form and production requirements of Freedom. This four-way stretch fabric exceeds all contract interior testing requirements for heavy-duty upholstery. The colors of Wave are taken from the phenomenal hues found in nature.

Specifications

• Contents: 86% Nylon, 14% Elastic

• Width: 61"  Repeat: None

• Finish: Stain and water repellant

• Abrasion: 150,000 double rubs, ASTM D-4157, #10 cotton duck, wyzenbeek

• Brush Pill: Class 4, ASTM D 3511

• Flammability: Passes California technical bulletin 117, section E

• Colorfastness to Light: Class 5, 40 hours AATCC Test Method 16E

• Crocking: Dry: Class 5, Wet: Class 4.5, AATCC Test Method 8

• Breaking Force (Grab Test): n/a

• Seam Slippage: n/a

• Elongation: Width: 39%, Length: 42%, UPH 107

Vellum Textile

Textile Code: V Textile Grade: 1
Seating Collections: Freedom, Liberty

Constructed of a plain weave using a blend of nylon, Cordura and elastic yarn, this textile offers a pleasing texture and extreme durability. Because of the Cordura content, this four-way stretch woven textile performs to the rigors of the most demanding contract environments. It easily passes the testing requirements for heavy-duty contract upholstery and is impregnated with a soil and water-resistant finish, which is highly durable and helps prevent the absorption of moisture and stains. The color palette varies from bright to classics, followed by a good selection of neutrals.

      Specifications

• Contents: 91% Elastic and Cordura blend, 9% Elastic

• Width: 50”

• Repeat: None

• Finish: Stain and water repellant

• Abrasion: 150,000 double rubs, ASTM D-4157, #10 cotton duck, wyzenbeek

• Brush Pill: Class 5, ASTM D 3511

• Flammability: Passes California technical bulletin 117, section E

• Colorfastness to Light: Class 4.0, 40 hours AATCC Test Method 16E

• Crocking: Dry: Class 5, Wet: Class 4.5, AATCC Test Method 8

• Breaking Force (Grab Test): Weft: 234 lbs., Warp: 174 lbs. ASTM D 5034

• Seam Slippage: n/a

• Elongation: Weft: 20%, Warp: 21% UPH 107

• Cordura is a registered trademark of DuPont.

Spirit Millennium Textile

Textile Code: U Textile Grade: 1
Seating Collections: Freedom, Liberty

Spirit Millennium is an anti-microbial and wipe able textile manufactured by Naugahyde. This textile is designed for use in healthcare, education, hospitality and other environments that require surfaces to be durable and easy to maintain. It passes healthcare testing, such as anti-microbial and cleanability tests, and meets fire code requirements.

      Specifications:

• Content: 100% Vinyl

• Weight: 37 oz. / linear yard

• Finish: Mildew, Sulfide, Stain and Oil Resistant

• Abrasion: Wyzenbeek, no abrasion after 250,000 double rubs

• Stain Test: Passes ASTM E-1428, Anti-microbial Pink Stain Test

• Static Dissipative

• Cold Crack: -20°

• Flammability: Passes California Technical Bulletin 117, passes Federal Specification CID A-A-2950, passes Boston

• Fire Code, rated BIFMA Class

• Disinfectability: Formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

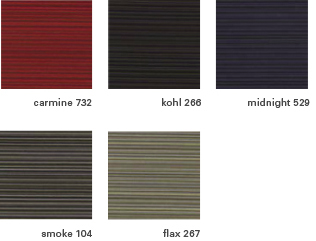

Bridget Strip Textile

Textile Code: Vertical: B, Horizontal: H

Textile Grade: 2
Seating Collections: Freedom, Liberty

Part of Humanscale’s new Movement Collection, Bridget Stripe’s five-colorstripe pattern creates an undisrupted movement across the surface of the fabric and over the shape of the chair in either vertical or horizontal directions. Available in five colorways, Bridget Stripe features a 50-stripe repeat and shifting color sequence to complement a wide variety of environments.

Specifications:

• Content: 78% Wool, 13% Polyester, 9% Nylon

• Width: 55"

• Repeat Size: 1.7" horizontal

• Finish: Soil and stain repellent

• Abrasion: 150,000 double rubs, ASTM D 4157, #10 cotton duck, Wyzenbeek, 75,000, Martindale

• Pilling Resistance: Class 5, ASTM D 4970

• Flammability: Passes California technical bulletin 117, section E

• Colorfastness to Light: Class 4.5, 40 hours, AATCC Test Method 16

• Crocking: Dry: Grade 4.5-5, Wet: Grade 4.5, AATCC Test Method 8

UltraLeather Promessa Textile

Textile Code: E
Textile Grade: 3
Seating Collections: Freedom, Liberty

Ultraleather Promessa, a simulated leather textile from Ultra fabrics, is both wipe able and antimicrobial, and ideally suited for healthcare, hospitality and industrial applications. Offering a pebbled, highly textured finish, Promessa is available in 25 colors that will work beautifully in a wide variety of environments.

• Antimicrobial and wipeable with bleach or normal household cleaners which will not stain or discolor the fabric
• PVC-free and void of plasticizers, heavy metals and formaldehyde, as well as persistent organic pollutants (POPs)
• Surpassed 400,000 double rubs in Wyzenbeek testing
• Greenguard certified and produced in an ISO 9001
• Certified production facility
• Scratch, nick and blemish-resistant

     Specifications:

• Content: 100% Polyurethane surface with 65% Polyester, 35% Rayon backing

• Weight: Approx. 12 oz. per square yard Thickness: Approx. 1.1 mm

• Width: 54”

• Put-up: Approx. 30 yd R.O.T.

     Colorfastness:

• Crocking: AATCC 8, Class 5 dry & 4.5-5 wet

• Light: AATCC 16-3, Class 5

• Gas: AATCC 23, Class 5

• Ozone: AATCC 109, Grade 5

     Antimicrobial:

• NYS 63

• ASTM E 2180

     F/R RATING

• FMVSS 302: Pass

• CA 117 E: Class 1

• UFAC: Class 1

• NFPA 260: Class 1

• ASTM E 84 (adhered): Class A

Can be treated to meet FAR specifications.

This fabric, when used with compatible furniture components, has been shown to perform well under the fire test conditions of California Technical Bulletin 133.

Sensuede Textile

Textile Code: D
Textile Grade: 3
Seating Collections: Freedom, Liberty

Offering style and performance, Sensuede was developed to be the best and most luxurious engineered suede available. The fauxsuede’s soft touch comes from the use of breathable and wrinkle resistant recycled microfibers that are finer than a human hair but are extra-strong, resulting in a very resilient fabric. In keeping with Humanscale’s philosophy of sustainable design, this material was selected because of its environmentally sensitive content and manufacturing process.

     Specifications:

• Contents: 88% Polyester and 12% polyurethane (over 50% recycled polyester microfibers

• Width: 56"

• Repeat: None

• Abrasion: 200,000 double rubs, ASTM D-4157, #10 cotton duck, wyzenbeek

• Brush Pill: Class 5, ASTM D 3511

• Flammability: Passes California technical bulletin 117, section E

• Colorfastness to Light: Class 4, 40 hours AATCC Test Method 16E

• Crocking: Dry: Class 4 to 4.5 , Wet: Class 3 to 4 , AATCC Test Method 8

• Breaking Force (Grab Test): Weft: 121 lbs., Warp: 122 lbs. ASTM D 5034

• Seam Slippage: Warp: 62 lbs., Weft: 69 lbs., ASTM D 434

• Tongue Tear (Tear Resistance): Warp: 5.5 lbs., Weft: 5.4 lbs., ASTM D-2262

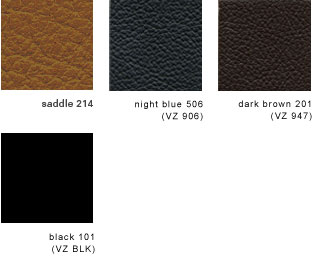

Vicenza Leather Textile

Textile Code: Z
Textile Grade: Leather 0
Seating Collections: Freedom, Liberty

Humanscale has partnered with Spinneybeck, the world’s  leading supplier of quality upholstery leather, to offer our sitting in the finest leathers available.

A lightly corrected, aniline dyed leather produced from European hides, Vicenza receives a special retannage which enriches the leather and tightens the grain. A breathable protective finish offers durability and comfort.

     Specifications:

• Average Hide Size: 45-50 square feet

• Average Thickness: 1.0 mm

• Weight: 2.5 oz. per square foot

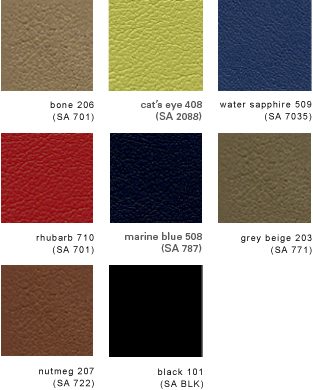

Sabrina Leather Textile

Textile Code: L
Textile Grade: Leather 1
Seating Collections: Freedom, Liberty

Humanscale has partnered with Spinney beck, the world’s leading supplier of quality upholstery leather, to offer our sitting in the finest leathers available. Please refer to your Spinney beck catalog for the full palette of Sabrina colors.

Sabrina is one of Spinneybeck’s most popular full grain leathers, offering a smooth, tight grain and suppleness of hand. It is the favorite of those seeking an elegant, fine-grained leather for high traffic use.

     Specifications:

• Average Hide Size: 45-50 square feet

• Average Thickness: 1.0 mm

• Weight: 2.5 oz. per square foot

Prima Leather Textile

Textile Code: P
Textile Grade: Leather 2
Seating Collections: Freedom, Liberty

Humanscale has partnered with Spinneybeck, the world’s leading supplier of quality upholstery leather, to offer our sitting in the finest leathers available. Please refer to your Spinneybeck catalog for the full palette of Prima colors.

Prima signifies the ultimate in full grain leather. Old world craft combined with premium select raw material create a leather in a class by itself.

     Specifications

• Average Hide Size: 60-65 square feet

• Average Thickness: 1.1 mm

• Weight: 2.75 oz. per square foot

Cylinder height refers to seat height (from floor to compressed front center of seat cushion)

Standard Cylinder: Provides seat height range (17.5"- 23") that accommodates 90% of the population.

High 8" Cylinder: Provides seat height range from 20.25 to 28.25".

High with 18"/21" FootRing Cylinder: Provides seat height range from 20.25"to 28.25" along with height adjustable 18" or 21" diameter chrome-plated foot ring.

Extra High with 18"/21" FootRing:

Provides seat height range from 23" to 33" along with height adjustable 18" or 21" diameter chrome-plated foot ring.
