$346.00

Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach

Now includes Next Generation Tilter 8500. Please see Description for more details.
Product ID 15713
HIGHLIGHTS
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach

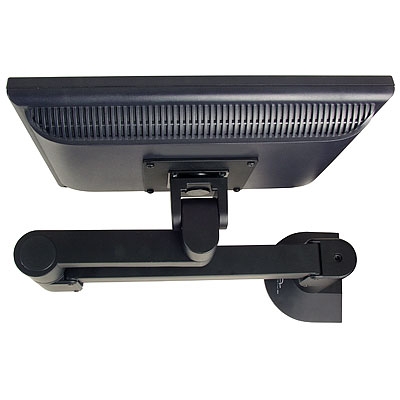

Folds up to occupy just 3'' of space

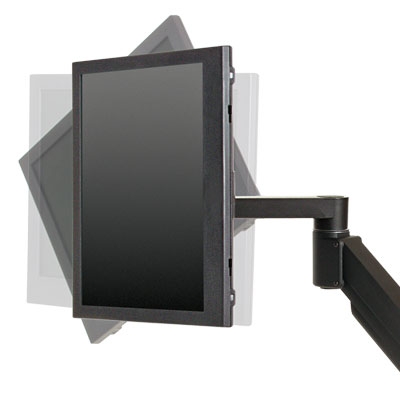

Pivots from landscape to portrait
Innovative FLEXmount
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Innovative 7000 Flexible Flat Panel Radial Arm - 23.4" Reach
Folds up to occupy just 3'' of space
Pivots from landscape to portrait
Innovative FLEXmount

Highlights

  • Monitor arm that can mount a monitor as well as a tablet
  • Mounting: Variety of mounting options available

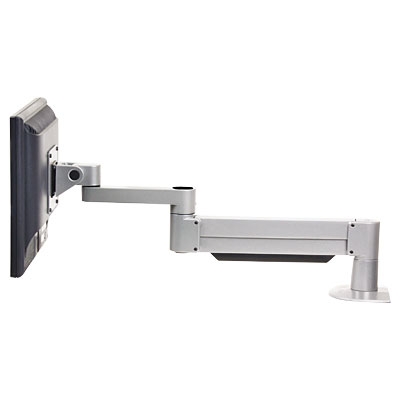

  • Reach: Extends 23.4" horizontally
  • Vertical adjustment: 16" range - 8" up and down from horizontal level
  • Foldability: Retracts to occupy 3" space
  • 3 Models: Cover monitors weighing in the range 3-28 lbs.
  • Please see, if you want a dual monitor arm or want to mount an iPad

Description

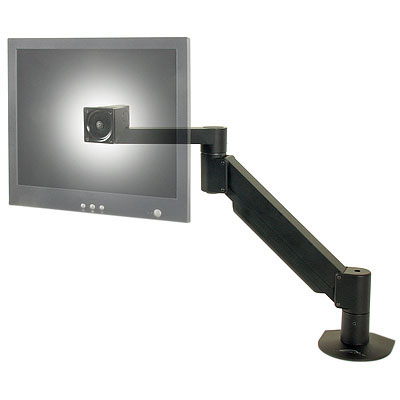

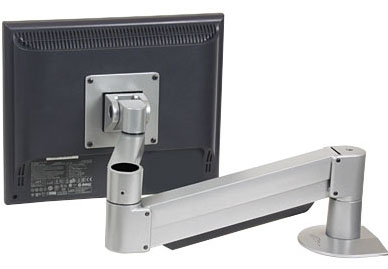

The 7000 LCD Arm suspends your flat panel above your desk, allowing you to quickly change the position of the monitor with just one hand. Reclaim your desk top, while you work in greater ergonomic comfort.  A gas cylinder provides the counterbalance force, which provides a smooth and silent operation.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

 Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter
  Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount



Innovative 8524 Top Down Mount



Innovative FLEXmount

Related Products

Part Number Description
7000-500-NM Vertical range: 16", Horizontal range: 23.4", Weight range: 3 - 10 lbs, No Mount
7000-800-NM Vertical range: 16", Horizontal range: 23.4", Weight range: 10 - 22 lbs, No Mount
7000-1000-NM Vertical range: 16", Horizontal range: 23.4", Weight range: 13 - 28 lbs, No Mount

Technical Drawing

Dimensional Diagram for 7000 Flexible Flat Panel Radial Arm with 24 inch reach

Technical Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Monitor Size Up to 32"
Height Adjustment 16" (+/- 8" from horizontal)
Extension Range 23.4"
Monitor Pivot Landscape / Portrait
Rotation 360 degrees at three joints
Monitor Tilt Up to 190 degrees
Cable Management Cables are concealed in arm
Mount Configurations Top Down Mount & FlexMount among others
Standard VESA Compatibility 75 x 75mm and 100 x 100mm adapter included
Warranty 10 Years

Features

  • 23.4" of horizontal range

  • 16" of vertical range (8" up and down from horizontal)

  • Folds up to occupy just 3'' of space

  • Rotates 360 degrees at three joints

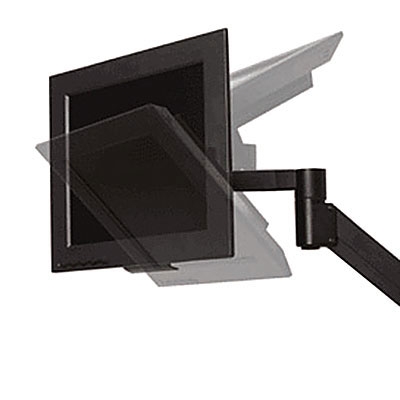

  • Monitor tilter mechanism can tilt up to 190 degrees

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

  • Optional 6" extender tube available to raise monitor (see Extender Tubes under Available Accessories)

Model 7000-500-NM-104 or 7000-800-NM-104 or 7000-1000-NM
Manufacturer Innovative LCD Arms
Part Number 7000-500-NM-104 or 7000-800-NM-104 or 7000-1000-NM
Weight lb(s)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Monitor Size Up to 32
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Height Adjustment 16
Extension 23.4
Pivot Landscape/Portrait
Rotation At three joints 360 degree
Mounting Pattern VESA 75mm, 100mm
Warranty 10 Years
Weight Capacity 2 - 30 lbs (0.9 - 14.1 kg)
Price $200 - $299
