Ergotron 33-323-200 DS100 Triple-Monitor Desk Stand

Ergotron 33-323-200 can mount 3 displays in a horizontal row with maximum screen size and width (including the frame) of 21" each.

Be the first to review this product
Product ID: 15210
Recommended Accessories
List Price: $550.00
Our Price: $319.00
Shipping: $24.51 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

Ergotron 33-323-200 conserves desk space by suspending three flat panels on a single base. Easily view multiple screens at once to increase productivity. DS100’s modular design allows customization to fit your needs. See Accessories for all your options.

Technical Drawing

Technical Drawing for Ergotron 33-323-200 DS100 Triple-Monitor Desk Stand

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 21"

Up to 31 lbs

14.1 kg

- - - 360° MIS-D

Product Information

Part Number 33-323-200
Description DS100 Triple-Monitor Desk Stand (black)
Includes
  • Base

  • 14" pole

  • Paraview bow

  • Two (2) sliding brackets

  • One (1) angled center bracket

  • One (1) flat center bracket

Maximum Outside Width of Display Maximum outside width of display is 20" (51 cm)
Weight Capacity 31 lbs (14 kg) per monitor; 93 lbs (42 kg) total
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Bow Height-adjustable bow

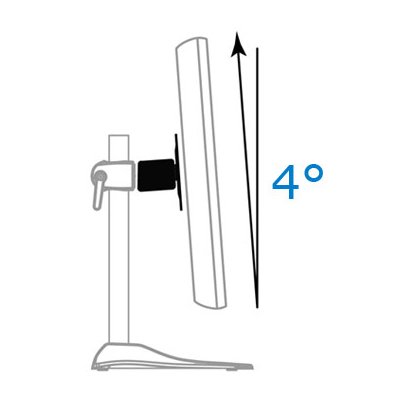

Install Displays with 4°-angle off-set: position them upward, inward or downward for optimized viewing conditions
Shipping Dimensions 31" x 16" x 9" (787 x 406 x 229 mm)
Shipping Weight 20 lbs (9 kg)
Warranty Five (5) years

Benefits

  • View multiple displays simultaneously with patented Paraview Technology

  • Position monitors for maximum productivity

  • Cable management system organizes and routes cables

  • Low-profile base saves desk space

  • Accommodates various LCD sizes; slide displays into place so screen edges align

  • Durable aluminum and steel construction creates an extremely stable platform

Model 33-323-200
Manufacturer Ergotron
Part Number 33-323-200
UPC 698833008258
Color Black
Monitor Size Up to 21". Maximum outside width of display is 20" (51 cm).
Weight Capacity 31 lbs (14 kg) per monitor; 93 lbs (42 kg) total
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 31" x 16" x 9" (787 x 406 x 229 mm)
Shipping Weight 20 lbs (9 kg)
Warranty Five (5) years
Mounting Options Desk Stand
Monitor Arm Types 3 Monitors
