$237.00

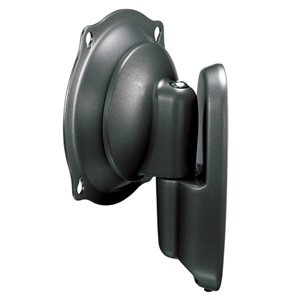

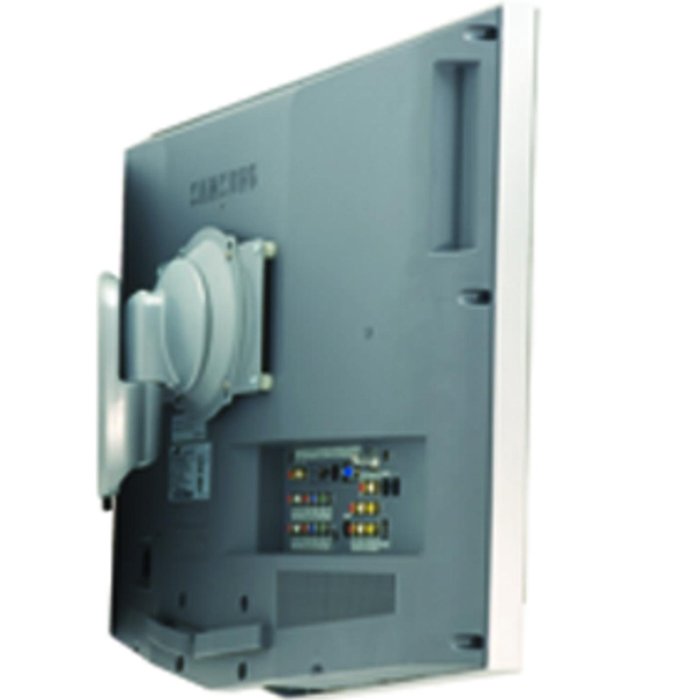

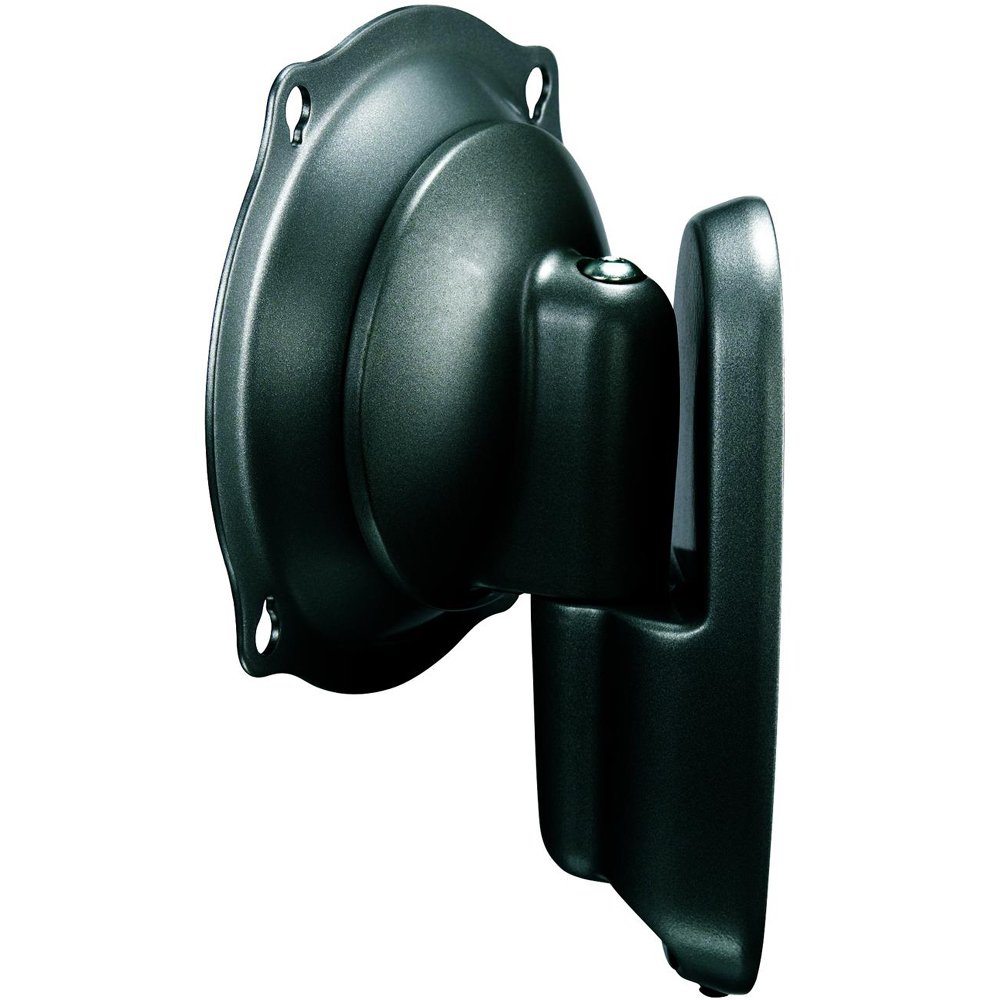

Chief JWP Series Medium Wall Mount with Pivot and Tilt (26-45")

Product ID 15303
Chief JWP Series Medium Wall Mount with Pivot and Tilt (26-45")

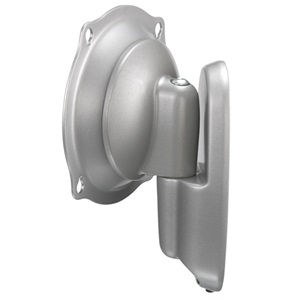

Silver
Chief JWP Series Medium Wall Mount with Pivot and Tilt (26-45")
Chief JWP Series Medium Wall Mount with Pivot and Tilt (26-45")
Silver
Chief JWP Series Medium Wall Mount with Pivot and Tilt (26-45")

Related Products

Part Number

Description

JWPVB

Black Universal Flat Panel Pivot or Tilt Wall Mount for 26 to 45" Displays - 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

JWPVS

Silver Universal Flat Panel Pivot or Tilt Wall Mount for 26 to 45" Displays - 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

JWPUB

Black Pivot or Tilt Wall Mount for 26 to 45" Flat Panel Displays - 100 x 100mm - 400 x 400mm

JWPUS

Silver Universal Pivot or Tilt Wall Mount for 26 to 45" Flat Panel Displays - 100 x 100mm - 400 x 400mm

JWP210B

Black Flat Panel Pivot or Tilt Wall Mount for 26 to 45" Displays - 100 x 100mm, 200 x 100mm, 200 x 200mm

JWP210S

Silver Pivot or Tilt Wall Mount for 26 to 45" Flat Panel Displays - 100 x 100mm, 200 x 100mm, 200 x 200mm

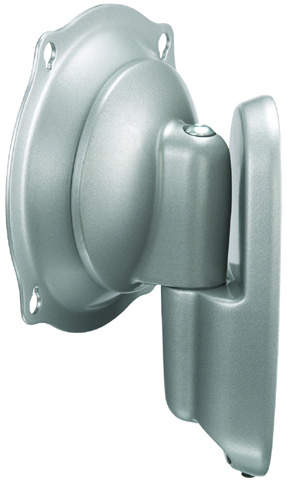

Chief JWPVS Universal Flat Panel Pivot or Tilt Wall Mount

Description

Chief JWP series easily attaches flat panel displays and monitors to the wall. Also provides smooth pivot and tilt adjustments for different viewing angles and ergonomic needs.



Technical Drawing

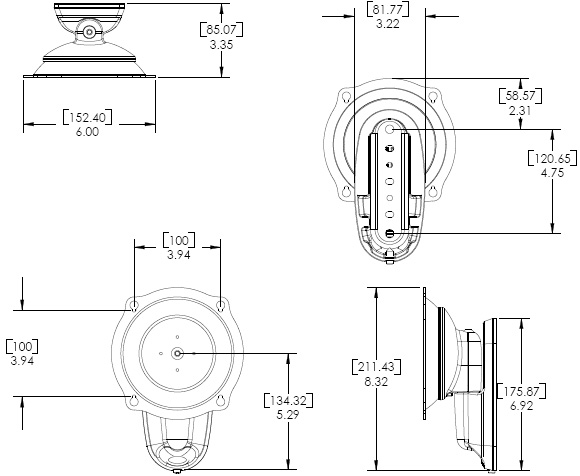

Technical Drawing for Chief JWPVB or JWPVS Flat Panel Pivot or Tilt Wall Mount



MSBV

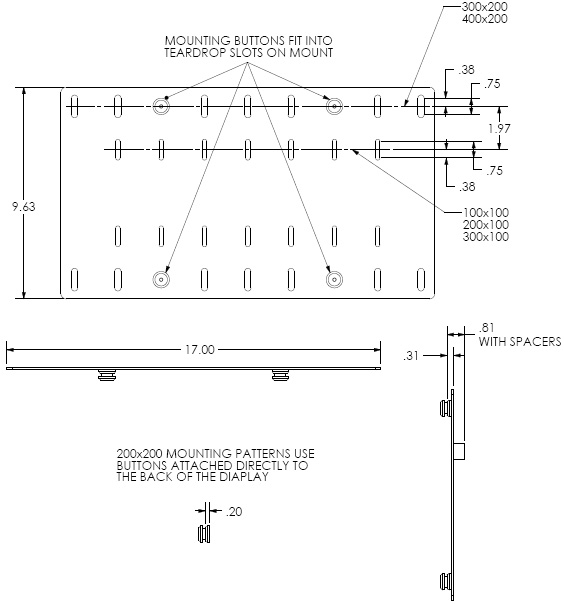

Chief MSBV Technical Drawing

Specifications

Color

Black, Silver

Minimum Depth

3.35" (85.1mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 400 x 400mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

8.3" x 6.0" x 3.4" (211 x 152 x 85mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

JWP210: 10.00 lbs, JWPU: 10.25 lbs, JWPV: 10.00 lbs

Solution Type

Universal

Tilt

+ 15°, - 15°

Typical Screen Sizes

26 - 45"

Wall Stud Compatibility (inches)

Single Stud

Weight Capacity

75 lbs (34.kg)



Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Independently adjustable tension at pivot points for customized control
  • Portrait and landscape screen installation
  • Quick, easy cable management
  • Sleek, attractive design hides all hardware
  • Ships assembled
  • Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
  • MSB interface bracket can be purchased separately for non-VESA compatible screens

Frequently Asked Questions

q What if my screen is not VESA 100 x 100, 100 x 200, or 200 x 200 mm?
a

Chief designs custom interface brackets for non-VESA screens. Simply order the correct MSB bracket using the Cross Reference.

Model JWP Series
Manufacturer Chief Mounts
Part Number JWP Series
UPC 841872064079
Weight lb(s)
Color Black, Silver
Minimum Depth 3.35" (85.1mm)
Mounting Pattern 100 x 100mm - 400 x 400mm
Overall Dimensions 8.3" x 6.0" x 3.4" (211 x 152 x 85mm)
Shipping Weight JWP210: 10.00 lbs, JWPU: 10.25 lbs, JWPV: JWPV: 10.00 lbs
Tilt + 15, - 15 degree
Monitor Size 26 - 45"
Weight Capacity 75 lbs (34.kg)
Mounting Options Wall

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
