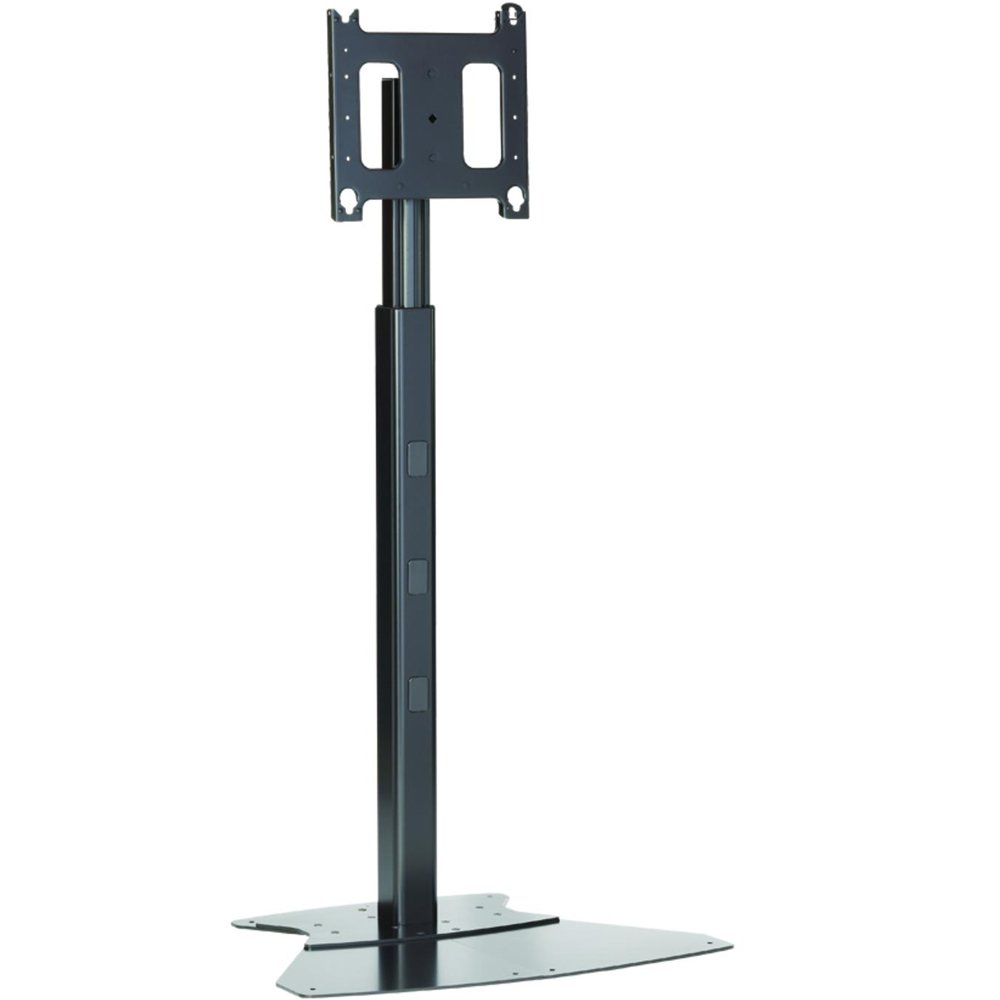

Chief PF1UB or PF1US Large Flat Panel Floor Stand (42-71")

LCD Computer Monitor Flat Panel Display Floor Stand

Product ID 15330

Related Products

Part Number



Black Flat Panel Floor Stand Mount for 42 to 71" Displays


Silver Floor Stand Mount for 42 to 71" Flat Panel Displays



Chief PF1U is a solid, low-profile solution for mounting a flat panel on a floor AV stand.

  • Ideal for digital signage and corporate presentations

  • PF1UB and PF1US ship with a universal interface bracket

  • PF12000B and PF12000S require a PSB interface to be purchased separately

  • Shelf accessory must be ordered separately. PAC710 height-adjustable accessory shelf shown


Technical Drawing

Technical drawing for Chief PF1 series Flat Panel Floor Stand Mount



Center of Display to Floor/Table Range

51.38 - 85.38" (1305 - 2169mm)


Black, Silver

Manual Height Adjustment


Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm


Landscape, Portrait

Overall Dimensions (H x W x D)

94.0" x 36.0" x 30.0" (2388 x 914 x 762mm)

Post-Installation Leveling (Roll)


Shipping Weight

144.00 lbs

Solution Type



+ 15°, - 15°

Typical Screen Sizes

42 - 71"

Weight Capacity

200 lbs (90.7kg)



  • Centris Technology provides effortless, fingertip tilt
  • Screen angle stays set in place until you decide to re-adjust
  • Provides telescoping height adjustment without tools
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Offers quick connect/disconnect wtih no tools necessary
  • Includes integrated security with the addition of a padlock
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
  • Flat, angled base makes corner positioning easy

Frequently Asked Questions

q Is a shelf option available with the floor stand?

Yes. Up to three PAC710 height-adjustable shelves can be used with the floor stand (must be ordered separately).

q Is there an option available for storage and transport of the floor stand in rental and staging applications?

No.The PAC700 travel case is designed specifically for the Chief mobile carts and does not correctly support the floor stands.

q Do I need to order a separate interface bracket?

The PF1UB and PF1US ship with a universal interface bracket, please see MountFinder to ensure your screen is compatible. The MF16000B and MF16000S require an MSB interface bracket to be purchased separately. Please see MountFinder to find the correct MSB interface bracket for your screen.

Model PF1UB, PF1US
Manufacturer Chief Mounts
Part Number PF1UB or PF1US
UPC 841872100654
Weight lb(s)
Center of Display to Floor/Table Range 51.38 - 85.38" (1305 - 2169mm)
Color Black, Silver
Manual Height Adjustment 34"
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 94.0" x 36.0" x 30.0" (2388 x 914 x 762mm)
Shipping Weight 144.00 lbs
Tilt + 15, - 15 degree
Monitor Size 42 - 71"
Weight Capacity 200 lbs (90.7kg)
Mounting Options Floor Stand
