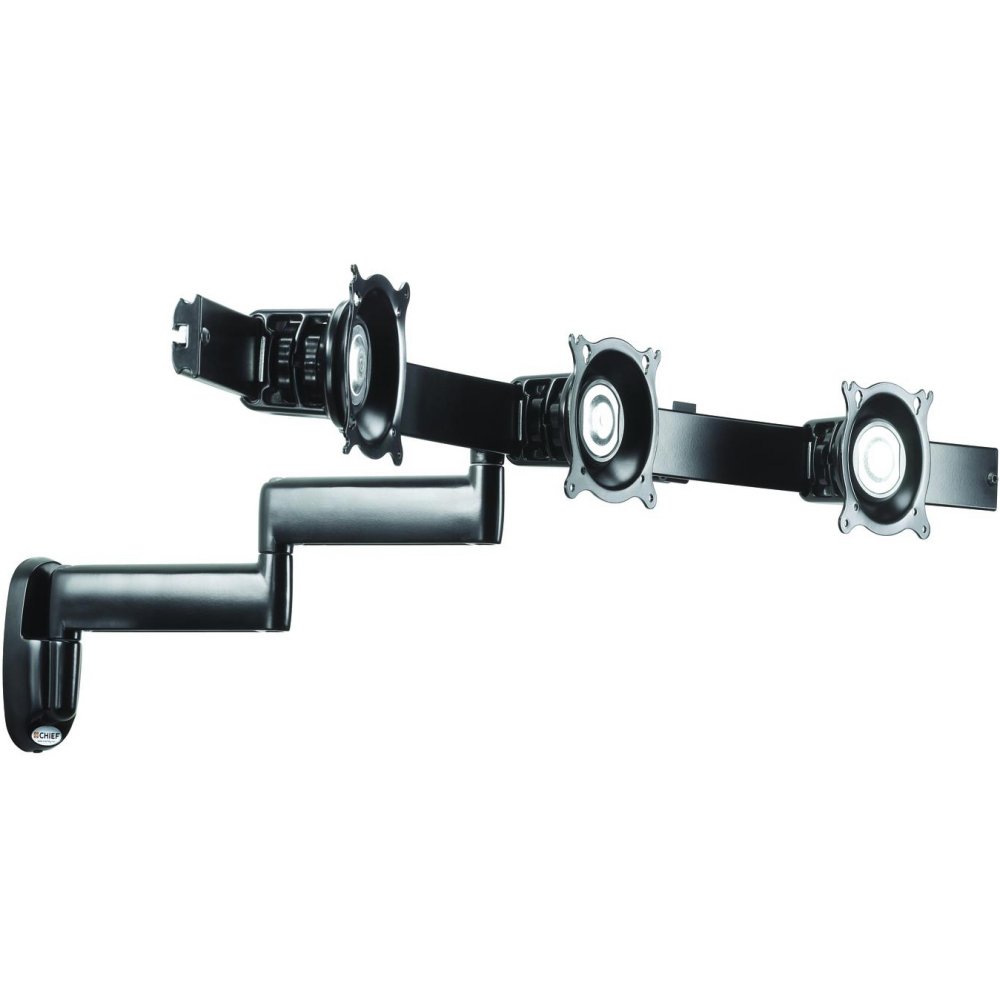

Chief Triple Monitor Wall Mount KWD320B or KWD320S
The KWD320 can be used to mount 3 monitors of 10-18" in screen size. The maximum width of these monitors (including the frame) cannot exceed 18"
Description
Chief's KWD320 triple monitor dual arm wall mount offers the ability to mount multiple screens horizontally and lock them in the same plane for viewing convenience.

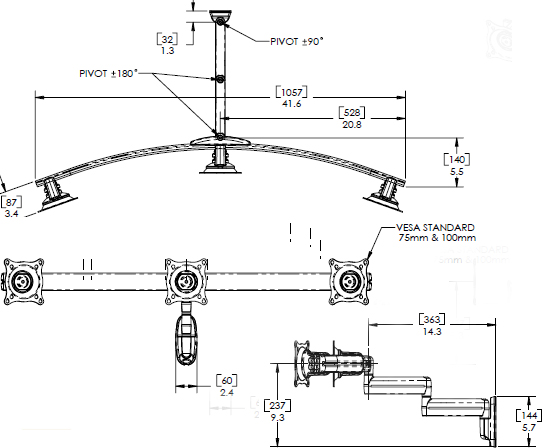

Technical Drawing
Specifications
| Color | Black, Silver |
| Compatible With OFB Furniture Brackets | Yes |
| Maximum Extension | 23.7" (602.mm) |
| Minimum Depth | 7.9" (200.7mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 3 |
| Overall Dimensions (H x W x D) | 14.5" x 41.6" x 7.9" (368 x 1057 x 201mm) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 17.35 lbs (7.87 kg) |
| Solution Type | Universal |
| Tilt | + 15° , - 15° |
| TV Width Range | 10 - 18" (254 - 457mm) |
| Typical Screen Sizes | 10 - 18" |
| Wall Stud Compatibility In | Single Stud |
| Weight Capacity | 10 lbs (4.5 kg) per monitor |
| Orientation | Landscape, Portrait |
Features
Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust
Compatible with Office Furniture: Custom OFB office furniture interface brackets available for most office systems. (OFB brackets sold separately)
Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and easy
Maximum range of motion from low profile to full extension
Tension can be optimized for touch screen use
Independently adjustable tension at pivot points for customized control
Side-to-side pivot adjustment up to 180° depending on installation
Built-in cable management
VESA 75 x 75 mm and 100 x 100 mm compatible (Interface brackets available for non-VESA compliant monitors)
Patented Centris Extreme Tilt. Tilts -75/+10 for an ultimate ergonomic solution
Product Options/Accessories
31177ARM Desk/Wall Anti-Theft Lockdown Stand
$102.75
KSA1005 Security Hardware Kit (non Height-Adjustable)
$74.00
$29.60
KWK110B Keyboard Wall Mount
$992.00
$396.80
Chief KSA1022B Wall Track Accessory
$444.00
$177.60
KSA1021 Keyboard Tray
$294.00
$117.60
KSA1024 Quick Release Bracket
$124.00
$49.60
KRA300 KONTOUR Laptop Tray, K1 Mounts
$178.00
$71.20
| Model | KWD320B, KWD320S |
| Manufacturer | Chief Mounts |
| Part Number | KWD320B, KWD320S |
| UPC | 841872045009 |
| Weight | 23.00 lb(s) |
| Mounting Options | Wall |
| Monitor Arm Types | 3 Monitors |
| Color | Black and Silver |
| Maximum Extension | 23.7" (602.mm) |
| Minimum Depth | 7.9" (200.7mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 14.5" x 41.6" x 7.9" (368 x 1057 x 201mm) |
| Shipping Weight | 17.35 lbs (7.87 kg) |
| Tilt | + 15 degree, - 15 degree |
| TV Width Range | 10 - 18" (254 - 457mm) |
| Screen Size | 10 - 18 in |
| Weight Capacity | 10 lbs (4.5 kg) per monitor |
| Number of Monitors | 3 Monitors |
| Orientation | Landscape, Portrait |
Be the first to review this product
|
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
