Black Flat Panel Dual Horizontal Monitor LCD Arm Wall Mount
Silver Wall Mount Flat Panel Dual Horizontal Monitor LCD Arm

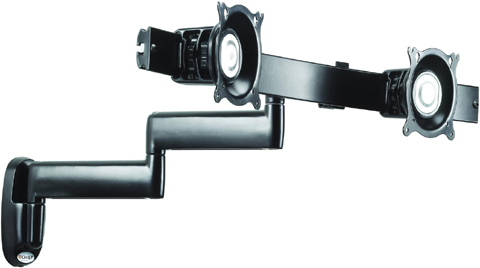

Chief KWD 220S or KWD 220B Wall Mount
Flat Panel Dual Horizontal Monitor LCD Arm
Features of Chief KWD 220:
1. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions
using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.
2. Compatible with Office Furniture: Custom OFB office furniture interface brackets available
for most office systems. (OFB brackets sold separately)
3. Ultimate Flexibility: Maximum range of motion from low profile to full extension.
4. Cable Management: Built-in cable management.
5. Smooth tilt adjustment and portrait/landscape rotation.
6. Independently adjustable tension at pivot points for customized control.
7. Tension can be optimized for touch screen use.
8. Side-to-side pivot adjustment up to 180° depending on installation.
9. Easy installation and ships assembled.
10. VESA 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-
VESA compliant monitors)

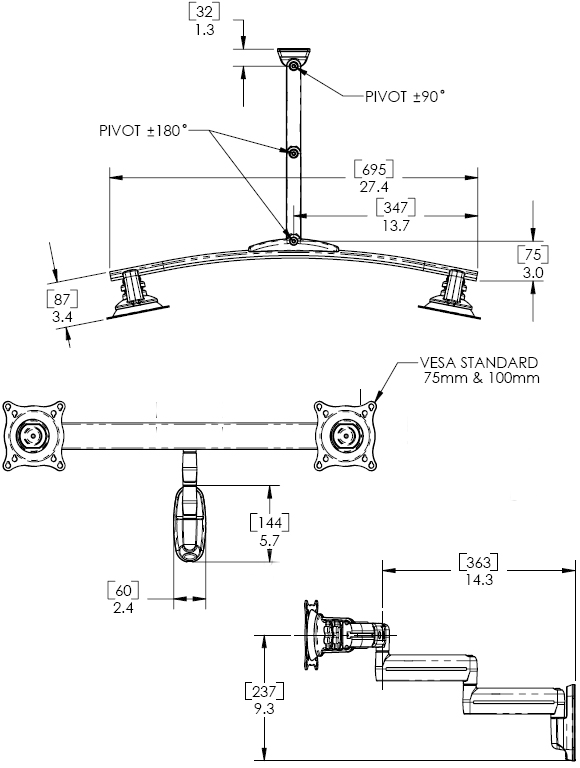

Technical Drawing for Chief KWD-220 Wall Mount
Description of Chief KWD-220S or KWD-220B:
Chief's KWD220 offers the ability to mount multiple screens and lock them in the same plane for viewing convenience.
Perfect for home and office installations of two monitors
6.4" (163 mm)
14.3" (363 mm)
Maximum Width of Monitor:
22.7" (576 mm)
Dimensions (H x W x D):
9.3" x 27.4" x 6.4" (237 x 695 x 163 mm)
Weight Capacity (per monitor):
16.5 lbs (7.5 kg)
Silver or Black
Wood Stud, Brick, Concrete
75 x 75 mm and 100 x 100 mm
