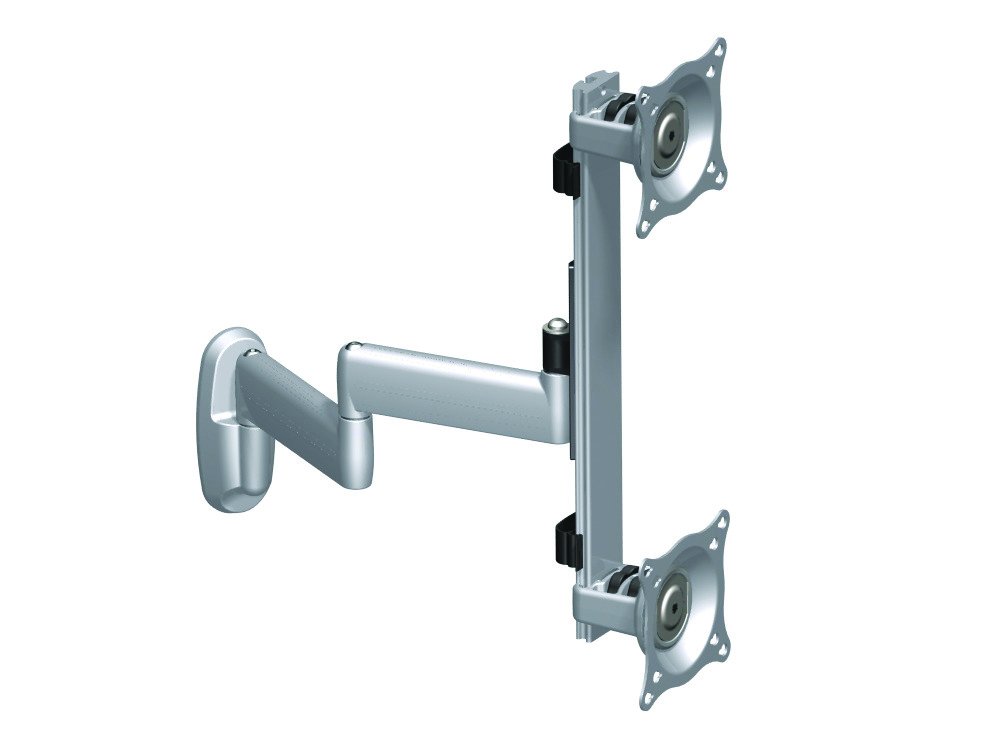

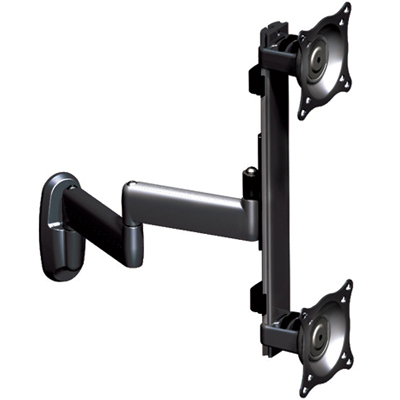

Chief Dual Arm Wall Mount, Vertical Dual Monitor KWD230B

Product ID 15770


Chief KWD230 wall mount offers the ability to mount multiple screens vertically and lock them in the same plane for viewing convenience.

  • Perfect for home and office installations of two monitor.

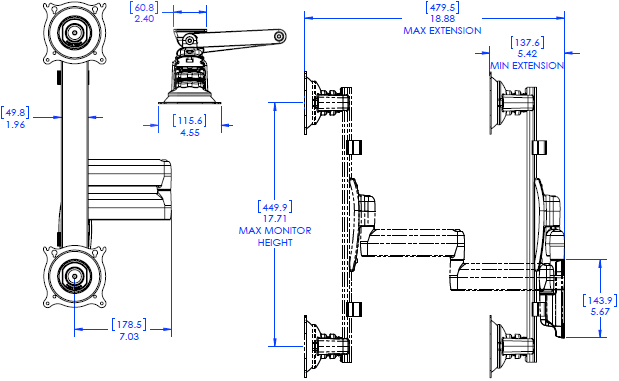

Technical Drawing

Technical Drawing for Chief KWD230 Dual Arm Wall Mount, Vertical Dual Monitor


Color Black
Compatible With OFB Furniture Brackets Yes
Maximum Extension 18.6" (472.4mm)
Minimum Depth 5.93" (150.6mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Overall Dimensions (H x W x D) 19.0" x 9.0" x 5.9" (483 x 229 x 151mm)
Post-Installation Leveling Roll Yes
Shipping Weight 11 lbs (4.99 kg)
Solution Type Universal
Tilt + 15° , - 15°
TV Height Range 10 - 17.7" (254 - 450mm)
Typical Screen Sizes 10 - 30"
Wall Stud Compatibility In Single Stud
Weight Capacity 17 lbs (7.7 kg) per monitor
Orientation Landscape, Portrait


  • Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust

  • Compatible with Office Furniture: Custom OFB office furniture interface brackets available for most office systems. (OFB brackets sold separately)

  • Sliding infinite vertical adjustment with adjustable cable management clips

  • Smooth tilt adjustment and portrait/landscape rotation

  • Independently adjustable tension at pivot points for customized control, tension can be optimized for touch screen use

  • Maximum range of motion from low profile to full extension

  • Side-to-side pivot adjustment up to 180° depending on installation

  • Easy installation and ships assembled

  • Built-in cable management

  • Tool-free cable management covers for a clean, professional look

  • VESA 75 x 75 mm and 100 x 100 mm compatible (Interface brackets available for non-VESA compliant monitors)

Model KWD230B
Manufacturer Chief Mounts
Part Number KWD230B
UPC 841872106304
Weight lb(s)
Mounting Options Wall
Monitor Arm Types 2 Monitors
Color Black
Maximum Extension 18.6" (472.4mm)
Minimum Depth 5.93" (150.6mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 19.0" x 9.0" x 5.9" (483 x 229 x 151mm)
Shipping Weight 11 lbs (4.99 kg)
Tilt + 15 degree, - 15 degree
TV Height Range 10 - 17.7" (254 - 450mm)
Weight Capacity 17 lbs (7.7 kg) per monitor
Orientation Landscape, Portrait
Number of Monitors 2 Monitors
Maximum Monitor Size 30"
Monitor Placement Stacked One Over the Other

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
