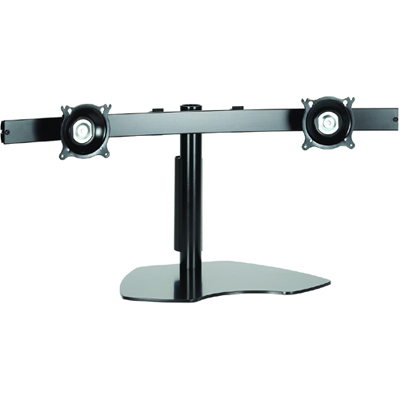

Chief Widescreen Dual Horizontal Table Stand KTP225B

Product ID 15777
Chief Widescreen Dual Horizontal Table Stand KTP225B
Chief Widescreen Dual Horizontal Table Stand KTP225B


Chief KTP225 provides a rock solid, free-standing solution for graphic designers, broadcasters and other users who work with multiple small flat panel monitors.

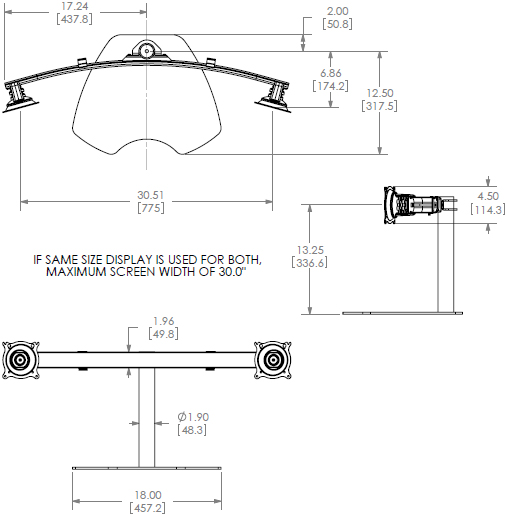

Technical Drawing

Technical Drawing for Chief KTP225B or KTP225S Widescreen Dual Horizontal Table Stand


Color Black, Silver
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Overall Dimensions (H x W x D) 14.5" x 34.5" x 14.5" (368 x 876 x 368mm)
Pole Length 14"
Post-Installation Leveling Roll Yes
Shipping Weight 34 lbs (15.42 kg)
Solution Type Universal
Tilt + 15° , - 15°
TV Height Range 10 - 26" (254 - 660mm)
TV Width Range 10 - 30" (254 - 762mm)
Typical Screen Sizes 10 - 30"
Weight Capacity 35 lbs (15.9 kg)
Orientation Landscape, Portrait


  • Independent adjustment of each screen for proper ergonomic alignment

  • Centris Technology provides smooth, fingertip tilt in all directions

  • Teardrop hole pattern makes mounting the screens quick and easy

  • Heavy-duty, solid steel base and oversize pole for unmatched stability

  • Integrated cable management

  • VESA 75 x 75 mm and 100 x 100 mm compatible

Model KTP225B
Manufacturer Chief Mounts
Part Number KTP225B
UPC 841872106397
Weight lb(s)
Mounting Options Desk Stand
Color Black and Silver
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 14.5" x 34.5" x 14.5" (368 x 876 x 368mm)
Pole Length 14"
Shipping Weight 34 lbs (15.42 kg)
Tilt + 15 degree, - 15 degree
TV Height Range 10 - 26" (254 - 660mm)
TV Width Range 10 - 30" (254 - 762mm)
Screen Size 10 - 30 in
Weight Capacity 35 lbs (15.9kg) per monitor
Orientation Landscape, Portrait
