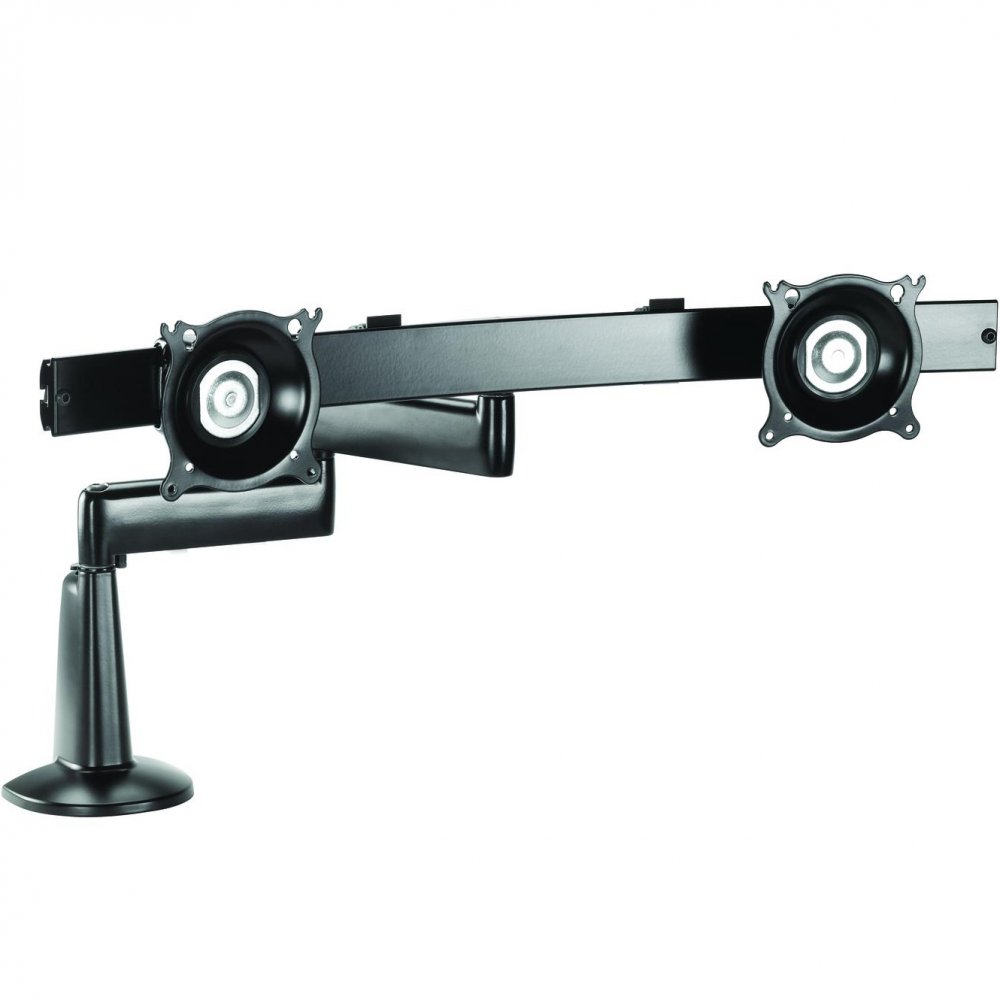

Chief Dual Arm Desk Mount, Dual Monitor KCD220B or KCD220S

Product ID 15779
Chief Dual Arm Desk Mount, Dual Monitor KCD220B or KCD220S
Chief Dual Arm Desk Mount, Dual Monitor KCD220B or KCD220S


Chief KCD220 offers the ability to ergonomically mount multiple displays.

Also check out the Kontour K2C22H products, which provide additional manual height adjustment on the column and other improved features and performance.

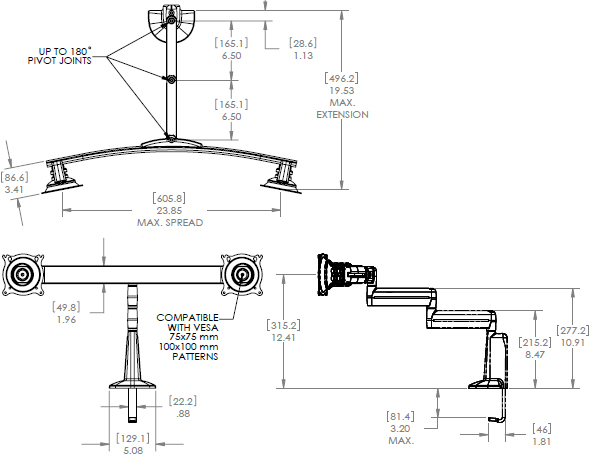

Technical Drawing

Technical Drawing for Chief Dual Arm Desk Mount, Dual Monitor KCD220B or KCD220S


Color Black, Silver
Desktop Thickness Range 0.5 - 3.5" (13 - 89mm)
Grommet Hole Size Range 0.38 - 3" (10 - 76mm)
Maximum Extension 20.5" (520.7mm)
Minimum Depth 6.4" (162.6mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Overall Dimensions (H x W x D) 13.5" x 27.3" x 6.4" (343 x 694 x 163mm)
Post-Installation Leveling Roll Yes
Shipping Weight 23 lbs (10.43 kg)
Solution Type Universal
Tilt + 15°, - 15°
TV Width Range 10 - 22.7" (254 - 577mm)
Typical Screen Sizes 10 - 24"
Weight Capacity 17 lbs (7.7 kg) per monitor
Orientation Landscape, Portrait


  • Centris Technology provides smooth, fingertip tilt in all directions

  • Screen angle stays set until you decide to re-adjust

  • Clamp option allows mount to be installed from the top of the mounting surface

  • Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt

  • Clean look with minimal hardware visible from underside of work surface

  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use

  • Quick, easy cable management with infinitely adjustable cable management clips

  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

  • Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm)

Model KCD220B, KCD220S
Manufacturer Chief Mounts
Part Number KCD220B, KCD220S
UPC 841872044705
Weight lb(s)
Mounting Options Desk
Number of Monitors 2 Monitors
Monitor Arm Types 2 Monitors
Color Black and Silver
Desktop Thickness Range 0.5 - 3.5
Grommet Hole Size Range 0.38 - 3
Maximum Extension 20.5
Minimum Depth 6.4
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 13.5
Shipping Weight 23 lbs (10.43 kg)
Tilt + 15 degree, - 15 degree
TV Width Range 10 - 22.7
Screen Size 10 - 24 in
Weight Capacity 17 lbs (7.7 kg)
Orientation Landscape, Portrait
Maximum Monitor Size 24
Monitor Placement Side-by-Side
Price $300 - $399
