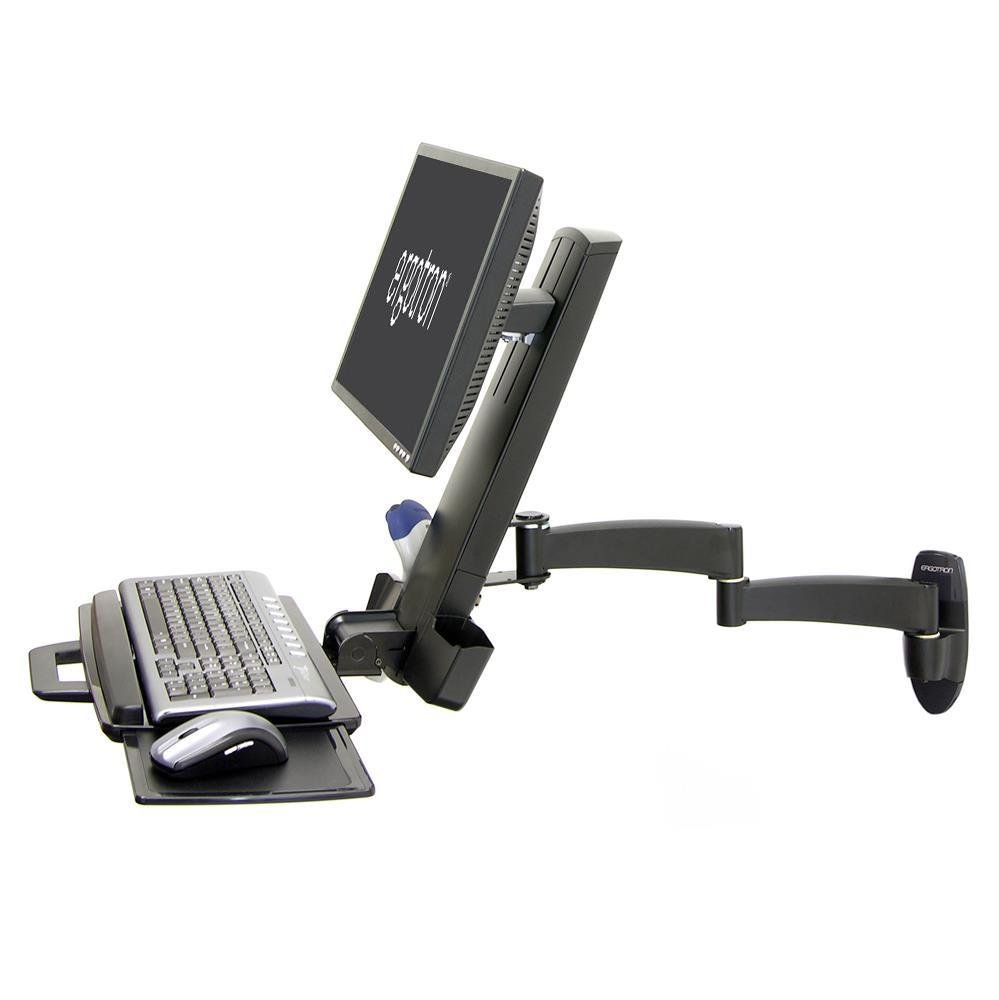

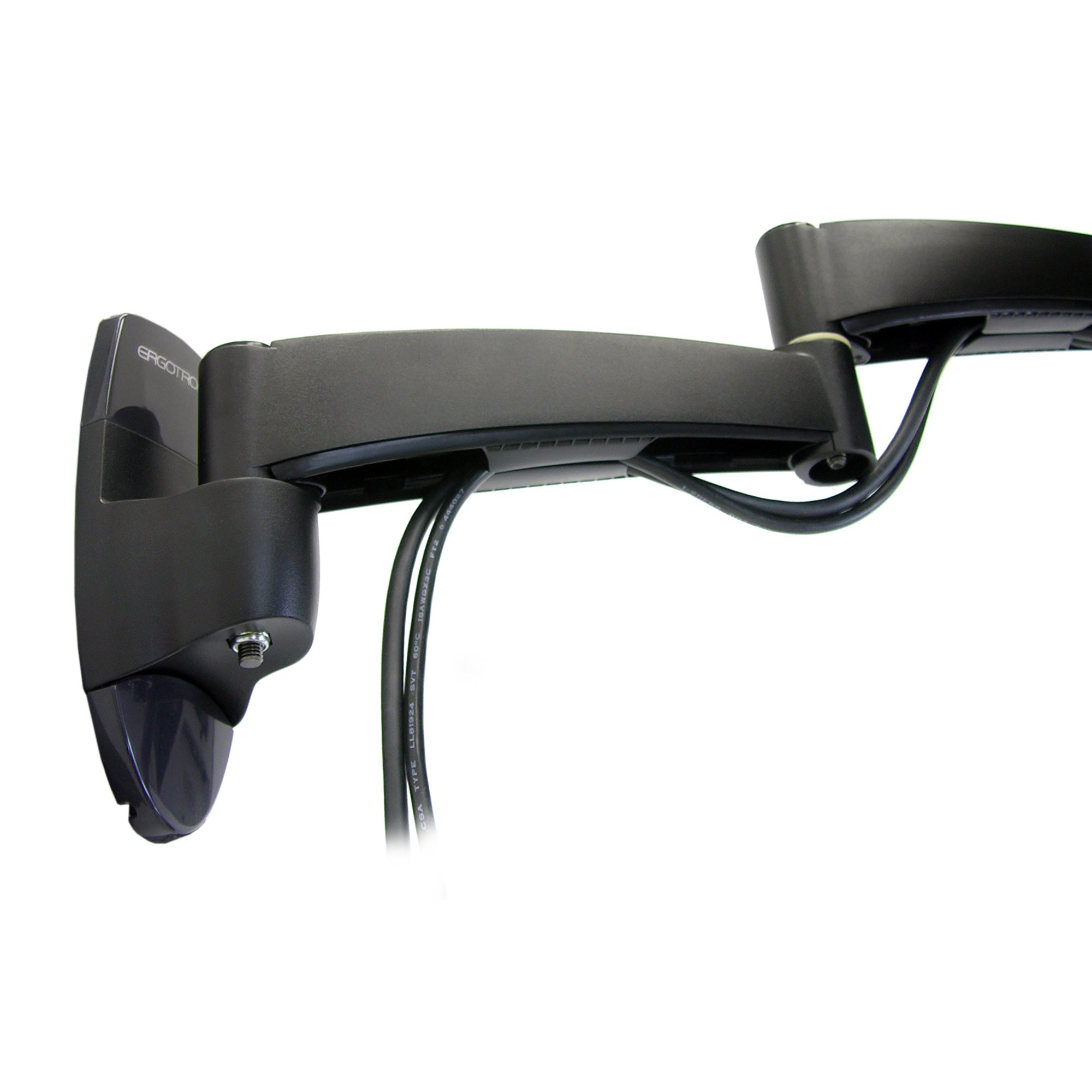

Ergotron 45-230-200 - 200 Series Combo Arm (black)

4 out of 5 (based on 1 review)
Product ID: 15805
Highlights
  • Wall Mount Combo Arm: Holds monitor, bar code scanner, keyboard tray, wrist rest, mouse
  • 24" screen size: Mounts monitors up to 24" in screen size
  • 6-18 lbs weight: Carries a monitor in the weight range 6-18 lbs
  • 5" height adjustment: Monitor adjusts 5" vertically, keyboard height is fixed
  • 39" horizontal extension: keyboard extends 39" horizontally

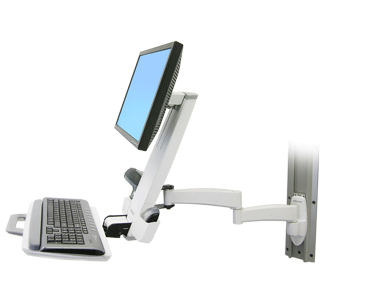

  • Please see, if you want this arm in white color
Options
List Price: $785.00
Our Price: $459.00
Shipping: $25.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Animation of Ergotron 200 Series Combo Arm Black

Description

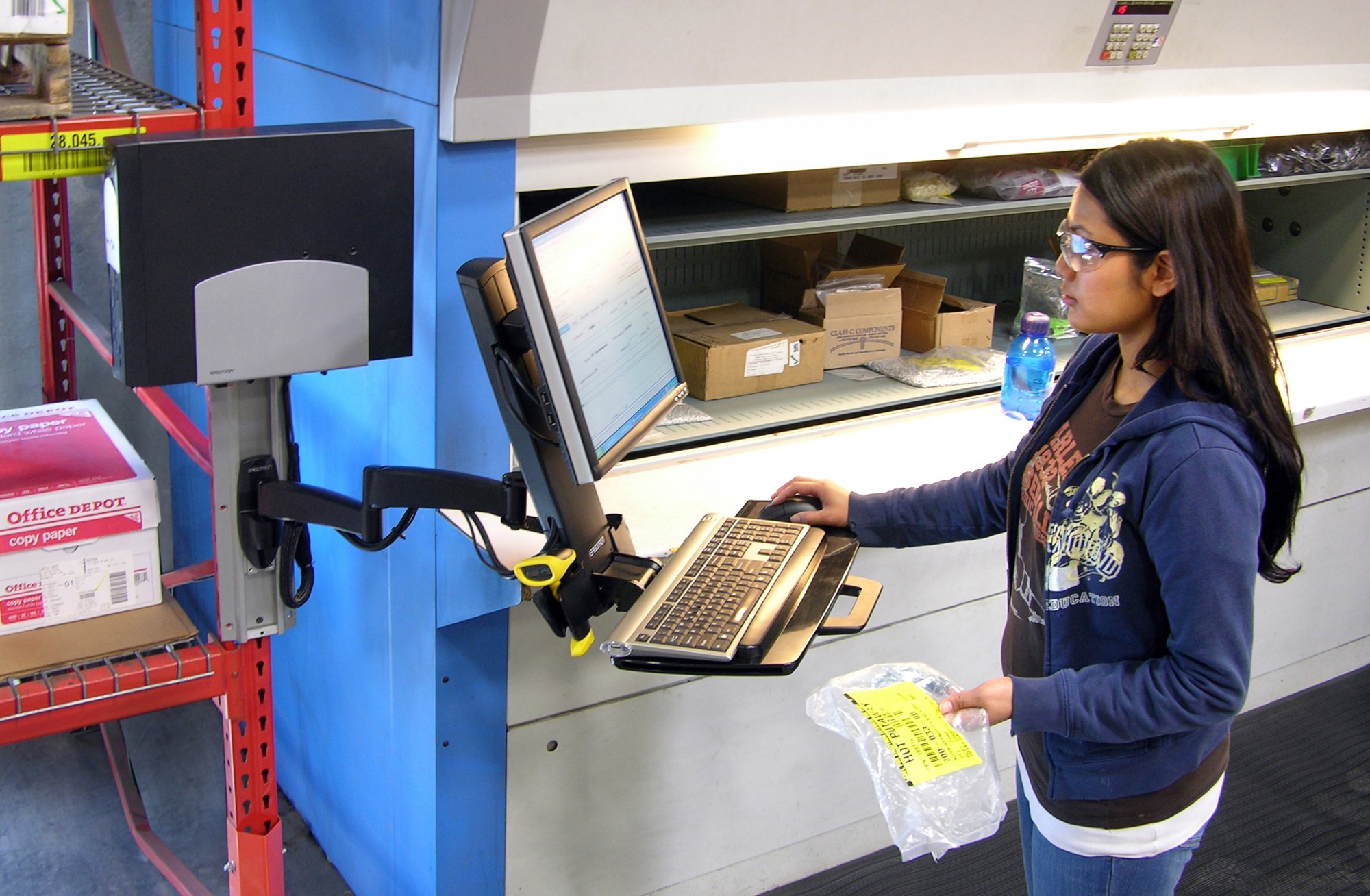

The Ergotron 45-230-200, a wall mounting combo arm, for monitor and a keyboard is perfect for public areas like hospital corridors or manufacturing floors, where temporary data access is important. Adjustability is the highlight of this arm as the distance between the keyboard and monitor can be changed as per your need and the keyboard can be extended out up to 39" and folded up when not in use.

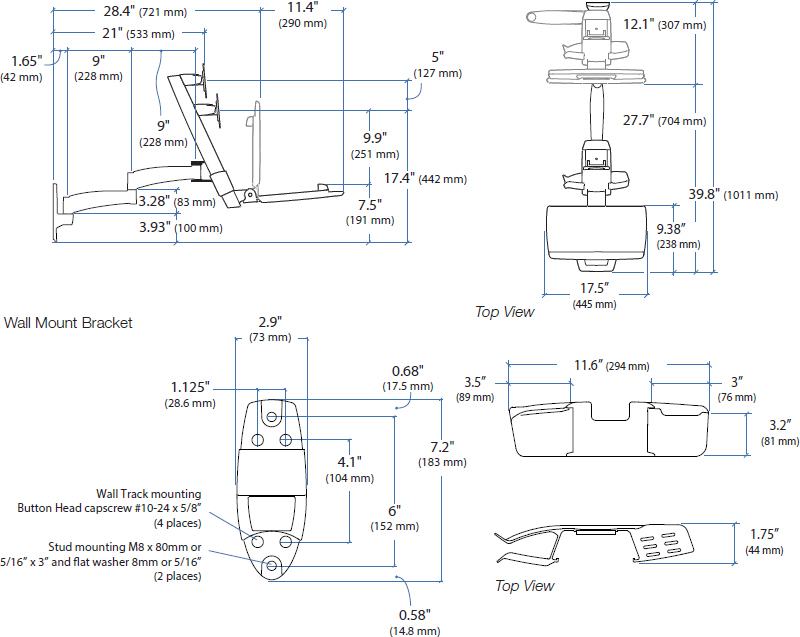

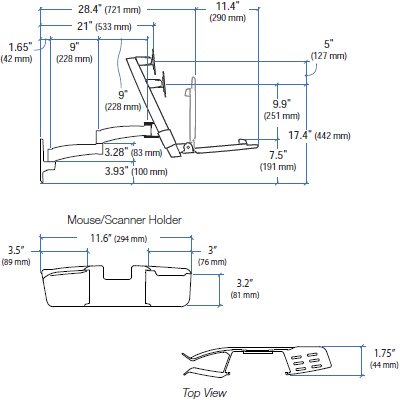

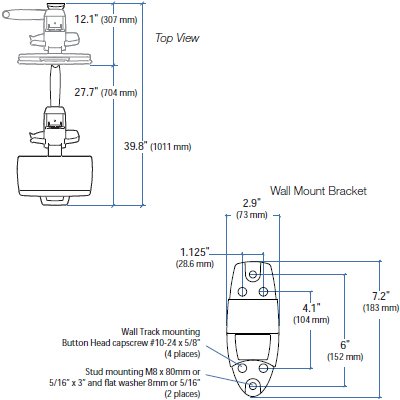

Technical Drawing

Technical drawing for Ergotron 45-230-200 - 200 Series Combo Arm (black)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

6 - 18 lbs

2.7 - 8.2 kg

5"

13 cm

30° 360° 360° MIS-D

Product Information

Part Number 45-230-200
Description 200 Series Combo Arm (black)
Includes
  • 200 Combo Arm
  • Wall mount bracket
  • Height-adjustable LCD mount
  • Wrist rest
  • Scanner and mouse holder
  • Integrated keyboard tray with left/right mouse tray
  • Handle
  • VESA mounting kit
  • Cable ties
Weight Capacity Display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg). Monitor depth greater than 2" (5 cm) may diminish capacity.
Lift Height of display adjusts 5" (13 cm); height of keyboard tray is fixed.
Monitor up/down Tilt +25°/-5°
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Mouse and Scanner Holder Integrated mouse and barcode scanner holder provide easy access
Keyboard Tray
  • Integrated fold-down keyboard tray with right/left mouse tray (includes built-in mouse pad surface).
  • Negative-tilt keyboard tray adjustable 0 to -10 degrees.
Exterior Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel.

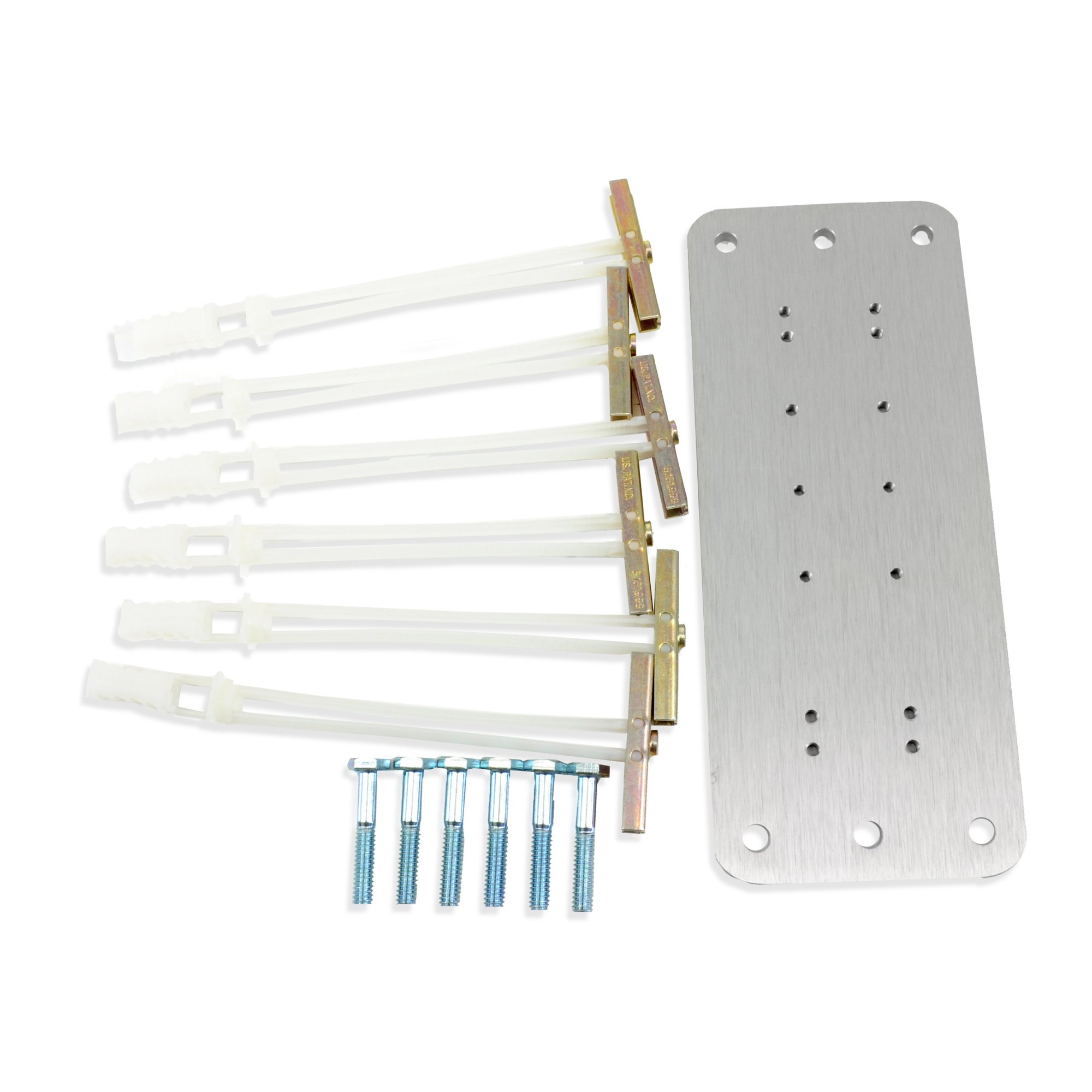

Mounting Options Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. Separately ordered Wall Track or Wall Plate accessory is recommended to strengthen installation by distributing weight over a larger surface area.
Shipping Dimensions 12.4"H x 20"W x 23.6"D (315 x 508 x 605 mm)
Shipping Weight 22.7 lbs (10.3 kg)
Warranty Five (5) years

Benefits

  • Easily position flat panel monitor and keyboard for maximum comfort and productivity
  • Distance between screen and keyboard is adjustable
  • Five-inch (13 cm) LCD height adjustment
  • Rugged steel construction
  • Extremely easy to clean; promotes infection control
  • Barcode scanner holder provides easy access to hand-held scanner

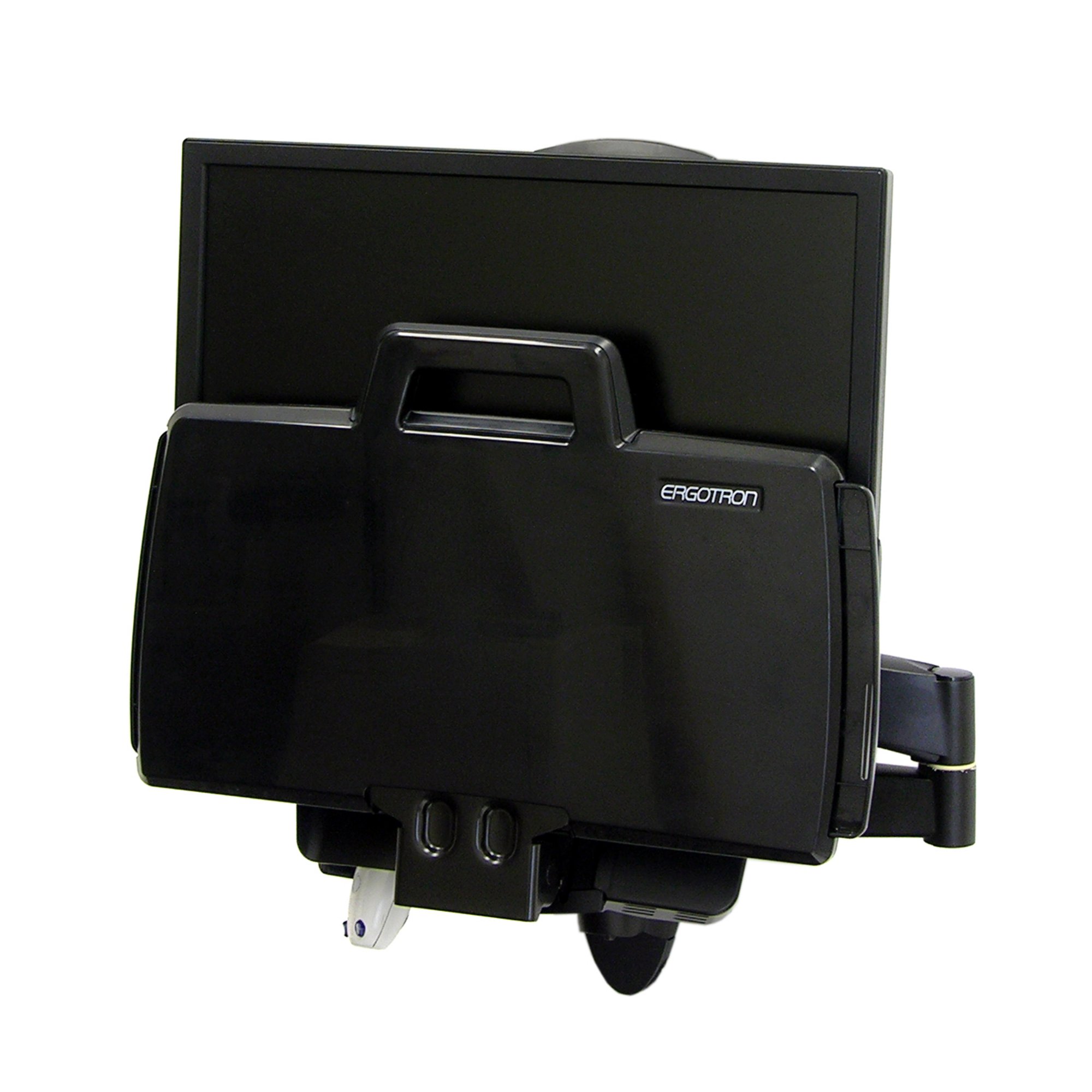

  • Extends keyboard out up to 39" (99 cm); fold equipment back out of the way when not in use. With the keyboard folded up, total system depth is as little as 12.1" (31 cm)
  • Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
  • Constant Force, patented lift technology provides fluid, one-touch adjustment of LCD
  • Clean, concealed and neat routing of cables through the expansive cable management system
Model 45-230-200
Manufacturer Ergotron
Part Number 45-230-200
UPC 698833010565
Color Black
Weight Capacity Display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg). Monitor depth greater than 2" (5 cm) may diminish capacity.
Monitor Size Up to 24"
Lift (13 cm) 5 in
Tilt Up +25 degree/down -5 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Weight 22.7 lbs (10.3 kg)
Shipping Dimensions 12.4"H x 20"W x 23.6"D (315 x 508 x 605 mm)
Warranty Five (5) years
Mounting Options Wall
Pan 360 degree
Rotation 360 degree
Monitor Arm Types Monitor/Keyboard
Excellent! !, Jul 7, 2017
by Irfan S, Abu Dhabi
This is perfect as per our requirement. We are planning to order more.
