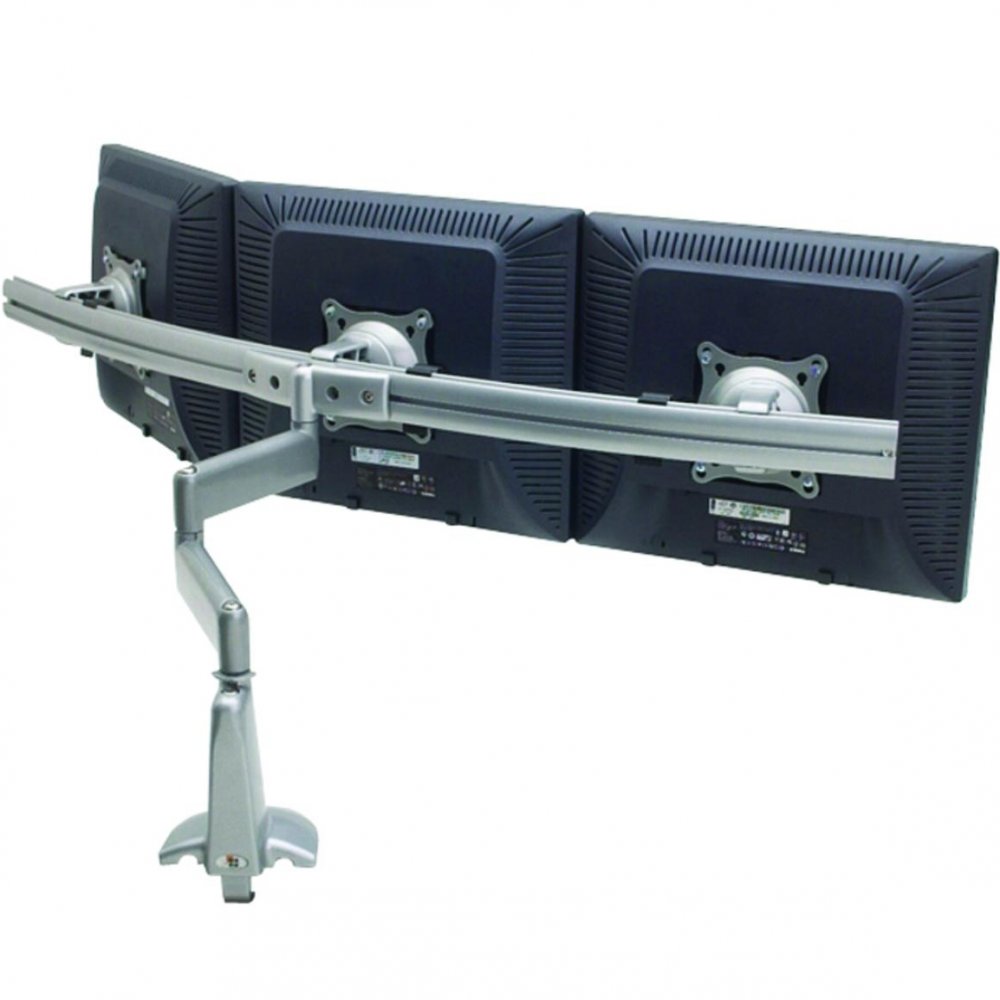

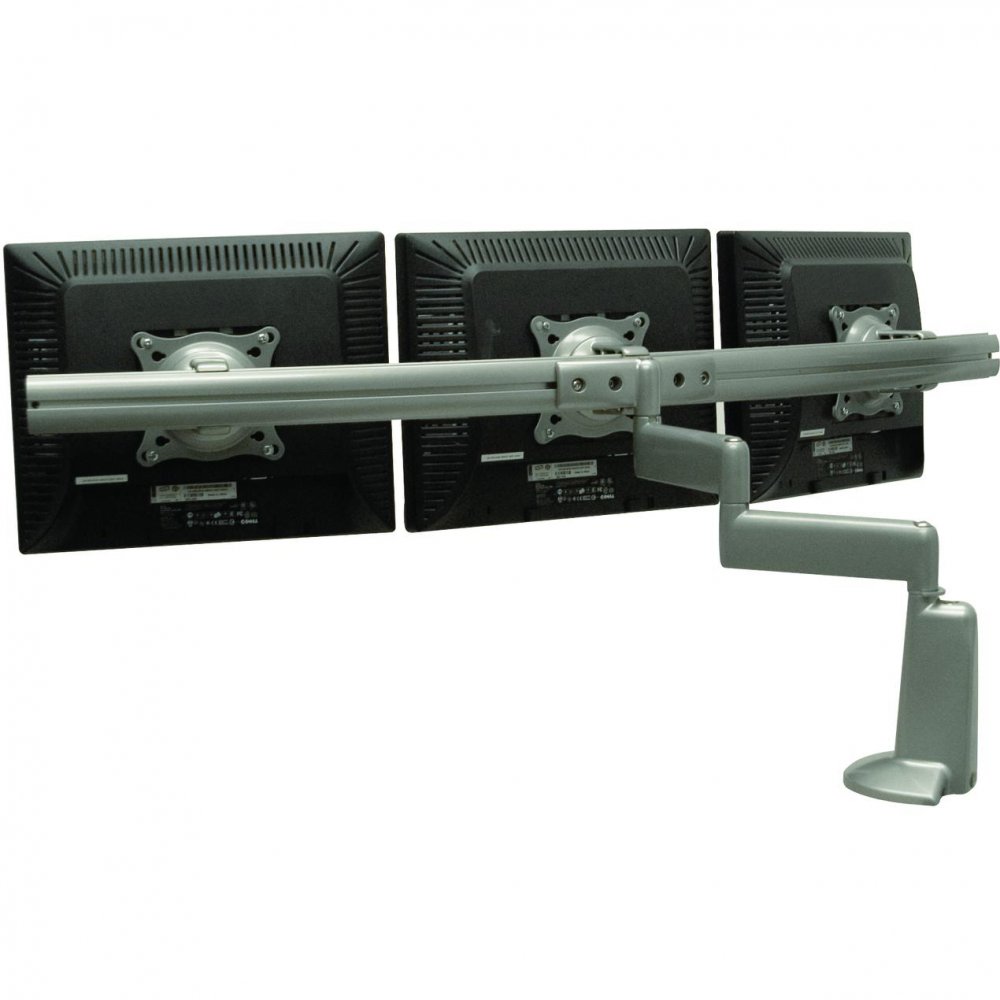

Chief Dual Arm Desk Mount, Triple Monitor KCD320B or KCD320S

This Chief product can handle 3 monitors with screen sizes of up to 18" and width of up to 18" each (including the frame). The weight capacity per monitor cannot exceed 10 lbs.

Product ID 15814


Chief KCD320 offers the ability to ergonomically mount multiple displays.
Wall Mount application: Chief KCD320 arm can be installed on wall but the weight capacity may be the issue. (It has 40 lbs weight capacity - the weight 13 lbs of the array bar = 27 lbs weight capacity/3 monitors). That means that the weight of each monitors can not exceed 9 lbs/each.

Technical Drawing

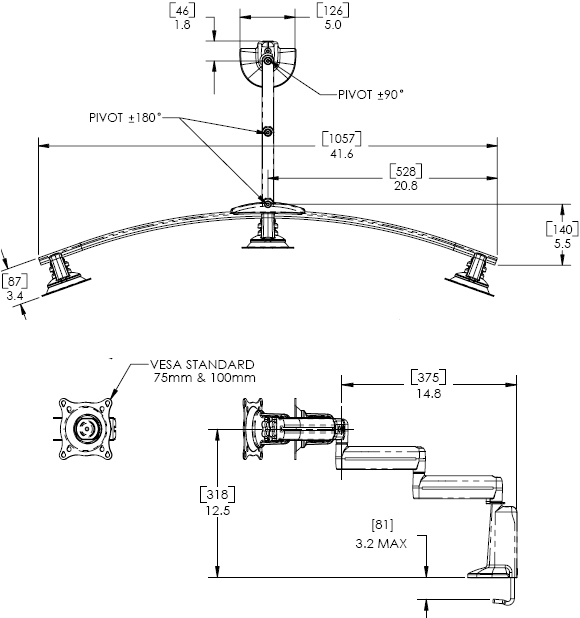

Technical Drawing for Chief Dual Arm Desk Mount, Triple Monitor KCD320B or KCD320S


Color Black, Silver
Desktop Thickness Range 0.5 - 3.5" (13 - 89mm)
Grommet Hole Size Range 0.38 - 3" (10 - 76mm)
Maximum Extension 23.7" (602mm)
Minimum Depth 7.9" (200.7mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 3
Overall Dimensions (H x W x D) 13.5" x 41.6" x 7.9" (343 x 1057 x 201mm)
Post-Installation Leveling Roll Yes
Shipping Weight 18.35 lbs (8.32 kg)
Solution Type Universal
Tilt + 15°, - 15°
TV Width Range 10 - 18" (254 - 457mm)
Typical Screen Sizes 10 - 18"
Weight Capacity 10 lbs (4.5 kg) per monitor
Orientation Landscape, Portrait


  • Centris Technology provides smooth, fingertip tilt in all directions

  • Screen angle stays set until you decide to re-adjust

  • Clamp option allows mount to be installed from the top of the mounting surface

  • Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt

  • Clean look with minimal hardware visible from underside of work surface

  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use

  • Quick, easy cable management with infinitely adjustable cable management clips

  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

  • Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm)

Model KCD320B, KCD320S
Manufacturer Chief Mounts
Part Number KCD320B, KCD320S
UPC 841872044651
Weight lb(s)
Mounting Options Desk
Monitor Arm Types 3 Monitors
Color Black and Silver
Desktop Thickness Range 0.5 - 3.5" (13 - 89mm)
Grommet Hole Size Range 0.38 - 3" (10 - 76mm)
Maximum Extension 23.7" (602mm)
Minimum Depth 7.9" (200.7mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 13.5" x 41.6" x 7.9" (343 x 1057 x 201mm)
Tilt + 15 degree, - 15 degree
TV Width Range 10 - 18" (254 - 457mm)
Screen Size 10 - 18 in
Weight Capacity 10 lbs (4.5kg) per monitor
Shipping Weight 18.35 lbs (8.32 kg)
Number of Monitors 3 Monitors
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 1
(5 out of 1)
Excellent product; mounting structure a bit confusing

by Michelle A, Florida, May 08, 2015

We purchased three of these monitor arms for three monitor mounting. It works just as advertised and we are very pleased with its structure. However, the mounting structure was a bit confusing. We ordered the base grommet mount style (none of the additional hardware options were needed). When we got them and the tech installing them was clipping them to the back of the desk, we realized that technically you could use these for a grommet or for a back of desk install. They have the plastic lip around the base to fit a grommet, but in the event your desk doesn't have that, they still function okay. I guess that was good since we were told our new desks would have grommet holes, when in fact they don't. All in all very satisfied with this product.
