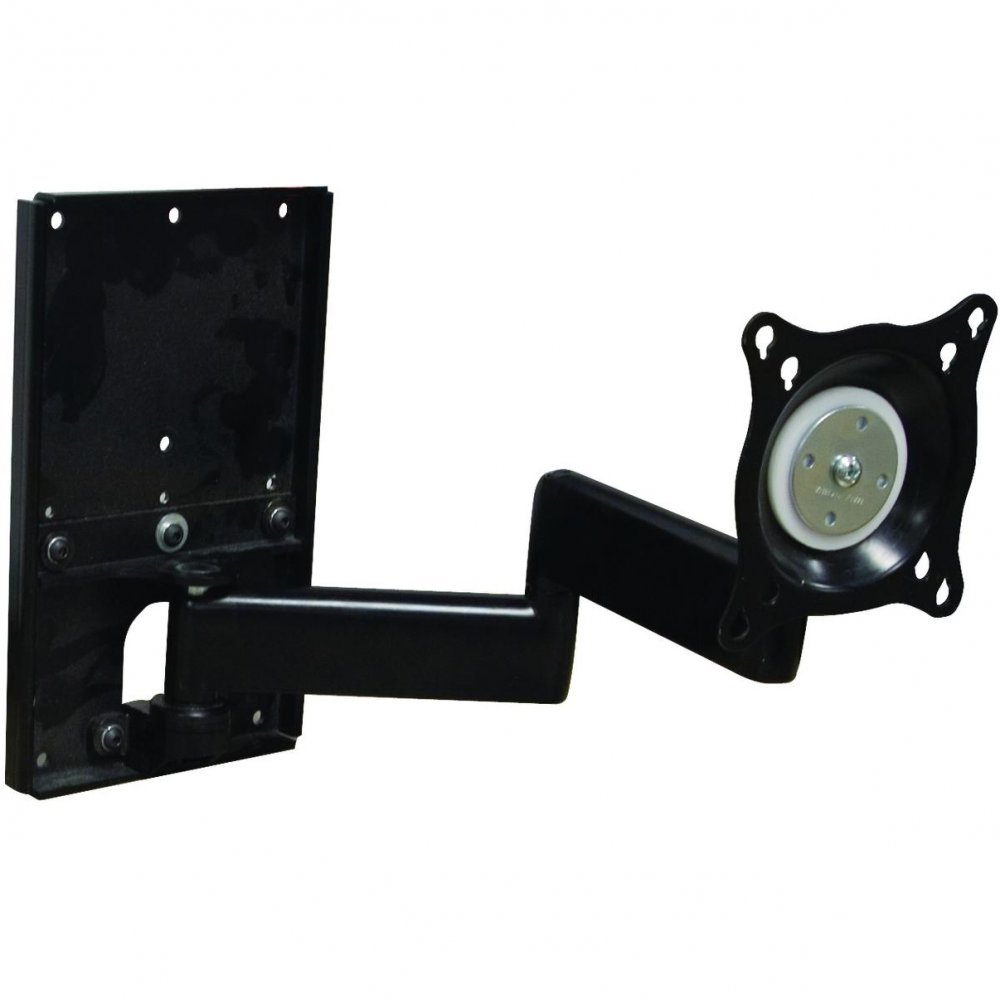

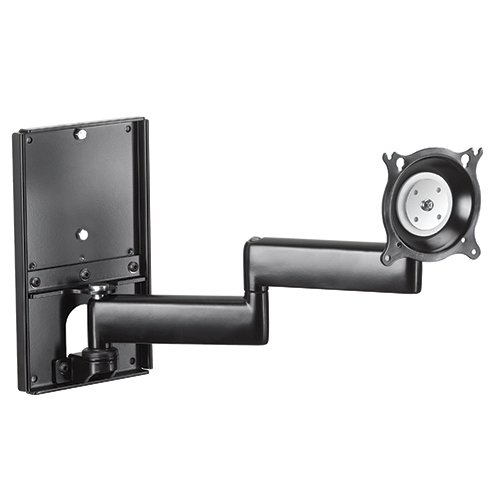

Chief Dual Arm Metal Stud Wall Mount KWDSK110B or KWDSK110S

Wall Mount LCD Monitor Arm

Product ID 15816


Chief KWDSK110 easily installs the KWD dual swing arm wall mount to a single stud.

  • Ergonomic solution for the home or office, providing excellent adjustability

  • Folds in close to the wall for a low-profile appearance

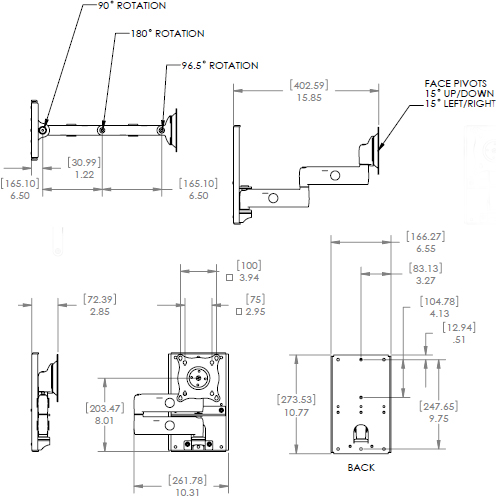

Technical Drawing

Technical Drawing for Chief Dual Arm Metal Stud Wall Mount KWDSK110


Color Black and Silver
Maximum Extension 15.8" (401.3mm)
Minimum Depth 2.85" (72.4mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Number of Monitors 1
Overall Dimensions 10.8" x 10.3" x 2.9" (274 x 262 x 72mm)
Post-Installation Leveling Roll Yes
Shipping Weight 8.9 lbs (4.04 kg)
Solution Type Universal
Tilt + 15°, - 15°
Typical Screen Sizes 10 - 30"
Wall Stud Compatibility In Single Stud
Weight Capacity 40 lbs (18.1 kg)
Orientation Landscape, Portrait


  • Mounts a dual swing arm to single steel stud

  • Centris Technology provides smooth, fingertip tilt

  • Independently adjustable tension at pivot points for customized control

  • Extends over 15" (381mm) to achieve the ideal viewing angle

  • Quick, easy cable management

  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

Frequently Asked Questions

q Can I use this mount with the anchors on a standard drywall installation?

No. Chief only recommends this product with anchors mounted to steel studs as it was tested.

Model KWDSK110B, KWDSK110S
Manufacturer Chief Mounts
Part Number KWDSK110B, KWDSK110S
UPC 841872106519
Weight lb(s)
Mounting Options Wall
Monitor Arm Types 1 Monitor
Color Black and Silver
Maximum Extension 15.8" (401.3mm)
Minimum Depth 2.85" (72.4mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 10.8" x 10.3" x 2.9" (274 x 262 x 72mm)
Shipping Weight 8.9 lbs (4.04 kg)
Tilt + 15 degree, - 15 degree
Screen Size 10 - 30 in
Weight Capacity 40 lbs (18.1kg)
Number of Monitors 1 Monitor
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
