$98.00

Chief Adjustable Extension Column 1.5" OD, Various Lengths

Product ID 15867

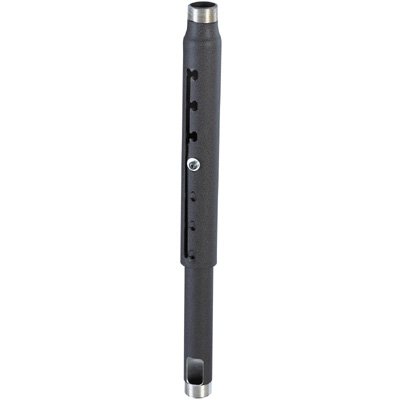

Chief Adjustable Extension Column 1.5" OD, Various Lengths

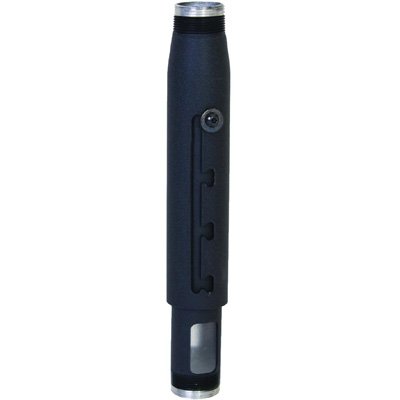

Chief CMS006009S Speed-Connect 6-9 inch Adjustable Extension Column Silver
Chief CMS006009W Speed-Connect 6-9 inch Adjustable Extension Column White
Chief CMS012018S Collapsed Speed-Connect 12-18 inch Adjustable Extension Column Silver
Chief CMS018024S Speed-Connect 18-24 inch Adjustable Extension Column Silver
Chief CMS0203 Speed-Connect 2-3 feet Adjustable Extension Column Black
Chief CMS0305 Speed-Connect 3-5 feet Adjustable Extension Column Black
Chief CMS012018 Collapsed Speed-Connect 12-18 inch Adjustable Extension Column Black
Chief CMS012018 Speed-Connect 12-18 inch Adjustable Extension Column Black
Chief Adjustable Extension Column 1.5" OD, Various Lengths
Chief CMS006009S Speed-Connect 6-9 inch Adjustable Extension Column Silver
Chief CMS006009W Speed-Connect 6-9 inch Adjustable Extension Column White
Chief CMS012018S Collapsed Speed-Connect 12-18 inch Adjustable Extension Column Silver
Chief CMS018024S Speed-Connect 18-24 inch Adjustable Extension Column Silver
Chief CMS0203 Speed-Connect 2-3 feet Adjustable Extension Column Black
Chief CMS0305 Speed-Connect 3-5 feet Adjustable Extension Column Black
Chief CMS012018 Collapsed Speed-Connect 12-18 inch Adjustable Extension Column Black
Chief CMS012018 Speed-Connect 12-18 inch Adjustable Extension Column Black

Related Products

Part Number

Description

CMS006009

Black 6 - 9" (152 - 228 mm) Speed Connect Adjustable Extension Column

CMS006009S

Silver 6 - 9" (152 - 228 mm) Speed Connect Adjustable Extension Column

CMS009012

Black 9 - 12" (228 - 304 mm) Speed Connect Adjustable Extension Column

CMS009012S

Silver 9 - 12" (228 - 304 mm) Speed Connect Adjustable Extension Column

CMS012018

Black 12 - 18" (304 - 457 mm) Speed Connect Adjustable Extension Column

CMS012018S

Silver 12 - 18" (304 - 457 mm) Speed Connect Adjustable Extension Column

CMS018024

Black 18 - 24" (457 - 609 mm) Speed Connect Adjustable Extension Column

CMS018024S

Silver 18 - 24" (457 - 609 mm) Speed Connect Adjustable Extension Column

CMS0203

Black 2 - 3' (609 - 914 mm) Speed Connect Adjustable Extension Column

CMS0203S

Silver 2 - 3' (609 - 914 mm) Speed Connect Adjustable Extension Column

CMS0305

Black 3 - 5' (914 - 1524 mm) Speed Connect Adjustable Extension Column

CMS0305S

Silver 3 - 5' (914 - 1524 mm) Speed Connect Adjustable Extension Column

CMS0406

Black 4 - 6' (1219 - 1828 mm) Speed Connect Adjustable Extension Column

CMS0406S

Silver 4 - 6' (1219 - 1828 mm) Speed Connect Adjustable Extension Column

CMS0507

Black 5 - 7' (1524 - 2133 mm) Speed Connect Adjustable Extension Column

CMS0507S

Silver 5 - 7' (1524 - 2133 mm) Speed Connect Adjustable Extension Column

CMS0608

Black 6 - 8' (1828 - 2438 mm) Speed Connect Adjustable Extension Column

CMS0608S

Silver 6 - 8' (1828 - 2438 mm) Speed Connect Adjustable Extension Column

CMS0709

Black 7 - 9' (2133 - 2743 mm) Speed Connect Adjustable Extension Column

CMS0709S

Silver 7 - 9' (2133 - 2743 mm) Speed Connect Adjustable Extension Column

CMS0810

Black 8 - 10' (2438 - 3048 mm) Speed Connect Adjustable Extension Column

CMS0810S

Silver 8 - 10' (2438 - 3048 mm) Speed Connect Adjustable Extension Column

CMS0911

Black 9 - 11' (2743 - 3352 mm) Speed Connect Adjustable Extension Column

CMS0911S

Silver 9 - 11' (2743 - 3352 mm) Speed Connect Adjustable Extension Column

CMS1012

Black 10 - 12' (3048 - 3658 mm) Speed Connect Adjustable Extension Column

CMS1012S

Silver 10 - 12' (3048 - 3658 mm) Speed Connect Adjustable Extension Column



Chief CMS006009 or CMS006009S Speed Connect Adjustable Extension Column



Specifications

Certifications

TV Certified, UL Listed

Color

Black

Notes

TAA Compliant

Overall Dimensions (H x W x D)

CMS006009: 9" x 2.3" x 2.3", CMS009012: 12" x 2.3" x 2.3", CMS012018: 18" x 2.3" x 2.3", CMS018024: 24" x 2.3" x 2.3", CMS0203: 36" x 2.3" x 2.3", CMS0305: 60" x 2.3" x 2.3", CMS0406: 72" x 2.3" x 2.3", CMS0507: 84" x 2.3" x 2.3", CMS0608: 96" x 2.3" x 2.3", CMS0709: 108" x 2.3" x 2.3", CMS0810: 120" x 2.3" x 2.3", CMS0911: 136" x 2.3" x 2.3", CMS1012: 148" x 2.3" x 2.3"

Shipping Weight

CMS006009/CMS009012: 2 lbs, CMS012018: 3 lbs, CMS018024: 4 lbs, CMS0203: 5 lbs, CMS0305: 8 lbs, CMS0406: 9 lbs, CMS0507: 10 lbs, CMS0608: 12 lbs, CMS0709: 12.4 lbs, CMS0810: 14 lbs, CMS0911: 15 lbs, CMS1012: 17 lbs

Weight Capacity

500 lbs (226.8 kg)



Technical Drawing

Technical Drawing for Chief Speed Connect Adjustable Extension Column



CMS Extension Columns

Model

Minimum Length (inch)

Maximum Length (inch)

CMS006009 6 9
CMS009012 9 12
CMS012018 12 18
CMS018024 18 24
CMS0203 24 36
CMS0305 36 60
CMS0406 48 72
CMS0507 60 84
CMS0608 72 96
CMS0709 84 108
CMS0810 96 120
CMS0911 108 132
CMS1012 120 144

All pipes can be adjusted in 1" increments. All columns are made of aluminum and can support up to 500 lbs.



Description

Save installation time and maximize security with these adjustable extension columns.



Features

  • Provides height adjustment in 1" increments
  • Notched design for adjustment without disassembly
  • Includes set screw for add stability
  • Consists of 1.5" NPT column, threaded on both ends
  • Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • TAA Compliant
Model CMS006009, CMS009012, CMS012018, CMS018024, CMS0203, CMS0305, CMS0406, CMS0507, CMS0608, CMS0709, CMS0810, CMS0911, CMS1012
Manufacturer Chief Mounts
Part Number CMS006009, CMS009012, CMS012018, CMS018024, CMS0203, CMS0305, CMS0406, CMS0507, CMS0608, CMS0709, CMS0810, CMS0911, CMS1012
UPC 841872092614
Weight lb(s)
Color Black
Overall Dimensions CMS006009: 9" x 2.3" x 2.3", CMS009012: 12" x 2.3" x 2.3", CMS012018: 18" x 2.3" x 2.3", CMS018024: 24" x 2.3" x 2.3", CMS0203: 36" x 2.3" x 2.3", CMS0305: 60" x 2.3" x 2.3", CMS0406: 72" x 2.3" x 2.3", CMS0507: 84" x 2.3" x 2.3", CMS0608: 96"x2.3"x2.3"
Shipping Weight CMS006009/CMS009012: 2 lbs, CMS012018: 3 lbs, CMS018024: 4 lbs, CMS0203: 5 lbs, CMS0305: 8 lbs, CMS0406: 9 lbs, CMS0507: 10 lbs, CMS0608: 12 lbs, CMS0709: 12.4 lbs, CMS0810: 14 lbs, CMS0911: 15 lbs, CMS1012: 17 lbs
Weight Capacity 500 lbs (226.8 kg)
