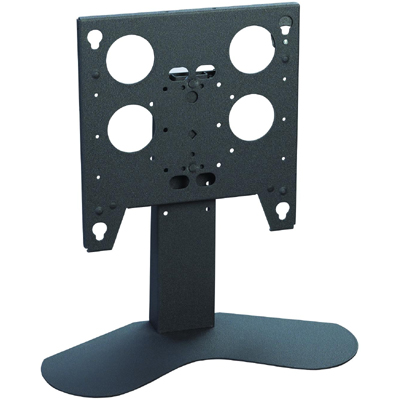

Chief PTSU Large Flat Panel Table Stand for 32-50" Display
Description
Stylish solutions for residential, commercial and business applications, chief PTSU table stand provides a wide variety of features for most large flat panel table top installations.

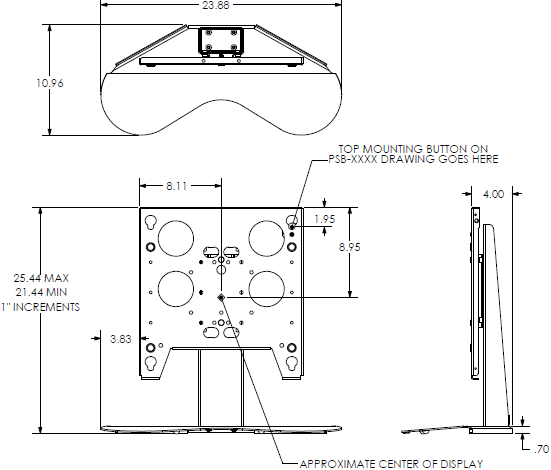

Technical Drawing
Specifications
| Color | Black |
| Manual Height Adjustment | 4" (102 mm) |
| Mounting Method | Free Standing |
| Post-Installation Leveling Roll | Yes |
| Overall Dimensions (H x W x D) | 21.4" x 23.9" x 11.0" (545 x 607 x 278mm) |
| Shipping Weight | 35 lbs (15.88 kg) |
| Solution Type | Universal |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Typical Screen Sizes | 32 - 50" |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Landscape |
Features
Q-Latch Mounting System for easy installation, stable mounting, quick release and optional security
Low-profile base
4" of display height adjustments in 1" increments to allow for difference screen heights up to 32"
PTSU universal version available which includes universal PSBUB interface. PTS2000B is available but must order PTS2000B and PSBXXXX custom or universal interface separately
Product Options/Accessories
Frequently Asked Questions
No, the PTS Table Stand ships as a complete assembly that includes the interface bracket.
The PTS can accommodate a 32" maximum outside height dimension of screen. It is designed to accommodate most 30"-50" screens.
| Model | PTSU |
| Manufacturer | Chief Mounts |
| Part Number | PTSU |
| UPC | 841872074641 |
| Weight | lb(s) |
| Color | Black |
| Manual Height Adjustment | 4" (102 mm) |
| Mounting Options | Free Standing |
| Post-Installation Leveling Roll | Yes |
| Overall Dimensions | 21.4" x 23.9" x 11.0" (545 x 607 x 278mm) |
| Shipping Weight | 35 lbs (15.88 kg) |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Monitor Size | 32 - 50" |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Landscape |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
