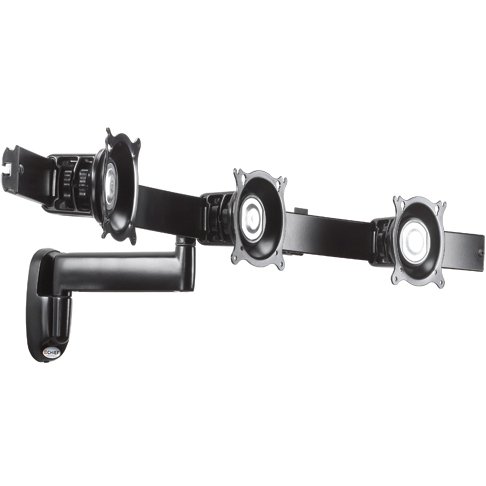

Chief Single Arm Wall Mount, Triple Monitor KWS320B or KWS320S

Three monitors can be mounted on the KWS320B and KWS320S with the maximum screen size of 18" and width of 18" (including the frame) each. None of the 3 monitors can weigh more than 10 lbs

Product ID 15961


Chief KWS320 wall mount offers the ability to mount multiple screens horizontally and lock them in the same plane for viewing convenience.

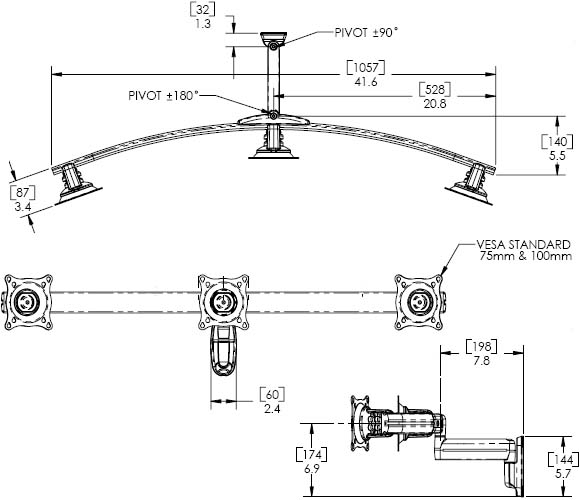

Technical Drawing

Technical Drawing for Chief Single Arm Wall Mount, Triple Monitor KWS320B or KWS320S


Color Black and Silver
Compatible With OFB Furniture Brackets Yes
Maximum Extension 16.2" (411.5mm)
Minimum Depth 7.9" (200.7mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 3
Post-Installation Leveling Roll Yes
Shipping Weight 17.35 lbs (7.87 kg)
Solution Type Universal
Tilt + 15°, - 15°
TV Width Range 10 - 18" (254 - 457mm)
Typical Screen Sizes 10 - 18"
Wall Stud Compatibility In Single Stud
Weight Capacity 10 lbs (4.5 kg)
Orientation Landscape, Portrait


  • Centris Technology provides smooth, fingertip tilt in all directions

  • Screen angle stays set until you decide to re-adjust

  • Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use

  • Quick, easy cable management with infinitely adjustable cable management clips

  • VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)

Model KWS320B, KWS320S
Manufacturer Chief Mounts
Part Number KWS320B, KWS320S
UPC 841872044569
Weight lb(s)
Color Black, Silver
Maximum Extension 16.2" (411.5mm)
Minimum Depth 7.9" (200.7mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 9.1" x 41.6" x 7.9" (231 x 1057 x 201mm)
Tilt +15 degree, -15 degree
TV Width Range 10 - 18" (254 - 457mm)
Screen Size 10 - 18 in
Weight Capacity 10 lbs (4.5kg) per monitor
Mounting Options Wall
Monitor Arm Types 3 Monitors
Shipping Weight 17.35 lbs (7.87 kg)
Number of Monitors 3 Monitors
Orientation Landscape, Portrait
