Peerless PSTA-028 or PSTA-028-W Ultra Short Throw Projector Mount Arm for Ultra Projectors up to 50 lbs
Important Note: All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless projector mount
Related Products:
Part Number |
Description |
PSTA-028 |
Black Ultra Short Throw Projector Mount for Projectors up to 50 lbs, from Wall 0-28" |
PSTA-028-W |
White Ultra Short Throw Projector Mount for Projectors up to 50 lbs, from Wall 0-28" |

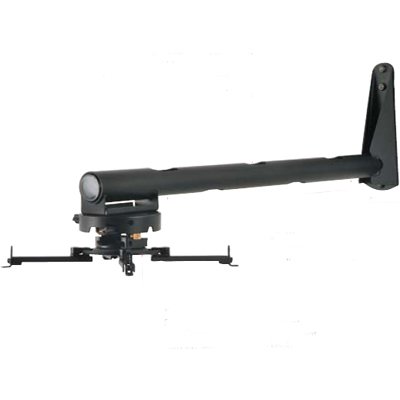

Peerless PSTA-028 or PSTA-028-W Ultra Short Throw Projector Mount for Projectors up to 50 lbs (22 kg)
| |||
|
|||
|
|||

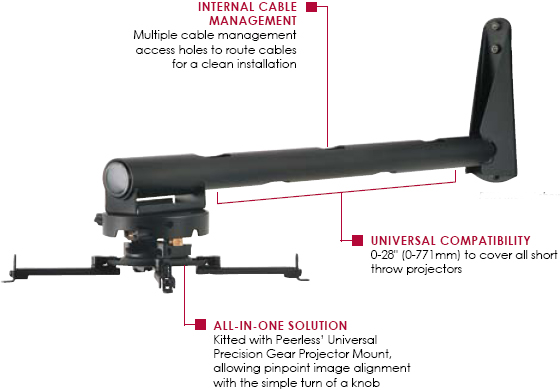

Features of Peerless PSTA028 or PSTA028W:
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||

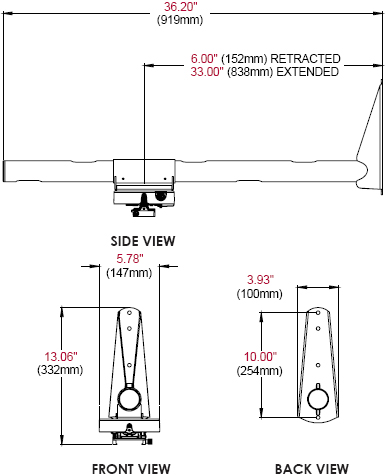

Technical Drawing of Peerless PSTA-028 Ultra Short Throw Projector Mount
|
|||
|
|||
|
|||
Description of Peerless PSTA-028-W:
|
|||

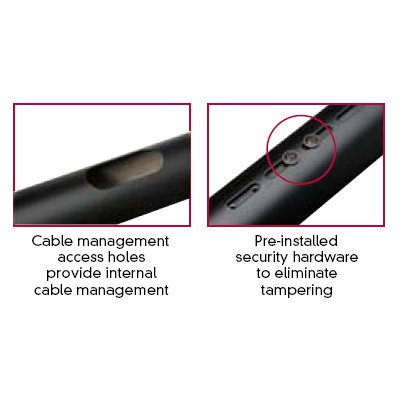

This Universal Ultra-Short Throw Projector Mount (PSTK models) provides flexibility to install into a single stud or a double stud application and gives up to 6” (152 mm) of lateral adjustment for perfect projector placement any time. In addition, the universal sliding carrage design of the arm is easily adjustable to accommodate ultra-short throw projector distance requirements. Complimentary to the universal design of the ultra-short throw projector arm this comprehensive package comes with Peerless Universal Precision Gear Projector Mount that makes image alignment as easy as a simple turn of a knob. Tying the installation together is its internal cable management system that is the oasis of a clean clutter free installation. Peerless delivers a comprehensive solution in one package for any ultra-short throw projector installation. |
|||
|
|||
|
|||
Specifications of Peerless PSTA-028-W or PSTA-028:
| |||
Mounting Pattern: |
Up to 17.63" (448 mm) |
||
Distance From Wall: |
0 - 28" (0 - 711 mm) |
||
Tilt: |
±20° |
||
Swivel: |
±15° |
||
Roll: |
±10° |
||
Mounting Surfaces: |
Wood stud, concrete, cinder block and metal stud (Metal stud accessory required) |
||
Product Dimensions (W x H x D): |
3.93" x 11" x 36.20" (100 x 279 x 919mm) |
||
Product Weight: |
11 lbs (4 kg) |
||
Load Capacity: |
50 lbs (22 kg) |
||
Finish: |
Scratch resistant fused epoxy |
||
Package Size (W x H x D): |
17.13" x 4.75" x 45.75" (435 x 120 x 1162mm) |
||
Package Ship Weight: |
12.24 lbs (5.5 kg) |
||
Package UPC Code: |
735029262848 |
||
Package Contents: |
|
||
Units in Package: |
1 |
||
|
|||
Literature (Please open the following documents for more technical information) |
|||
|
|||
Peerless PSTA-028 or PSTA-028-W Ultra Short Throw Projector Mount - Catalog Page |
|
||
Peerless PSTA 028 or PSTA 028 W Ultra Short Throw Projector Mount - Technical Drawing |
|
||
Peerless PSTA028 or PSTA028W Ultra Short Throw Projector Mount - Installation and Assembly |
|
Product Options/Accessories



Model | PSTA-028, PSTA-028-W |
Manufacturer | Peerless Mounts |
Part Number | PSTA-028, PSTA-028-W |
UPC | 735029262848 |
Weight | 12.00 lb(s) |
Color | Black or White |
Dimensions (W x H x D) | 3.93" x 11" x 36.20" (100 x 279 x 919mm) |
Weight | 11 lbs (4 kg) |
Weight Capacity | 50 lbs (22 kg) |
Mounting Pattern | Up to 17.63" (448 mm) |
Distance From Wall | 0"-28" (0-711 mm) |
Tilt | ±20 degree |
Swivel | ±15 degree |
Roll | ±10 degree |
Mounting Surfaces | Wood stud, concrete, cinder block and metal stud (Metal stud accessory required) |
Shipping Weight | 12.24 lbs (5.5kg) |
Shipping Dimensions | 17.13" x 4.75" x 45.75" (435 x 120 x 1162mm) |
