Peerless PSTK-028 or PSTK-028-W Short Throw Projector Mount Arm up to 50 lbs

Important Note: All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless projector mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15997
Options
List Price: $319.00
Our Price: $298.00
Shipping: $28.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

PSTK-028

Black Ultra Short Throw Projector Kit (Includes PRG-UNV and Wall Plate), from Wall 0-28", up to 50 lbs

PSTK-028-W

White Ultra Short Throw Projector Kit (Includes PRG-UNV and Wall Plate), from Wall 0-28", up to 50 lbs

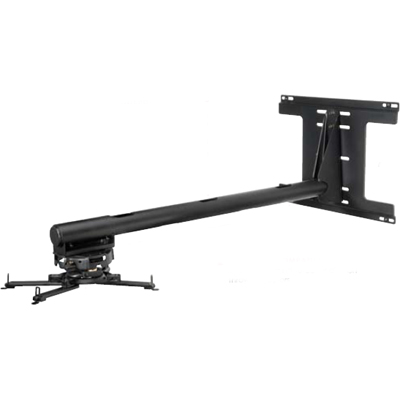

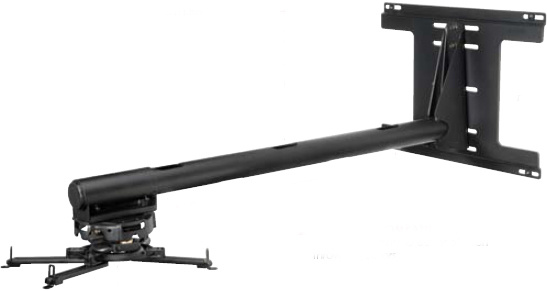

Peerless PSTK-028 or PSTK-028-W Ultra Short Throw Projector Kit for Projectors up to 50 lbs (22 kg)




Peerless PSTK 028 or PSTK 028 W Ultra Short Throw Projector Kit









Features of Peerless PSTK028 or PSTK028W:



  • Sliding carriage design allows projector mount to glide into place at any location on the short throw arm.

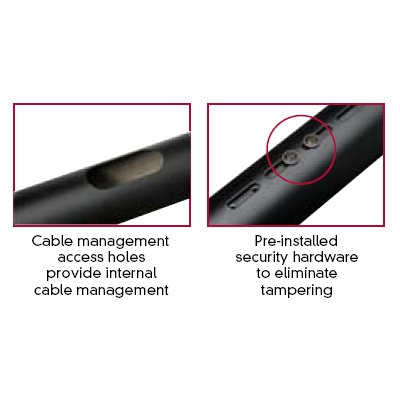

  • Access slots allow for all internal cable management.

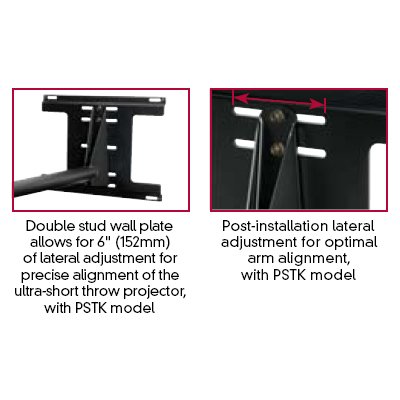

  • Double stud wall plate allows for 6" (152 mm) of lateral adjustment for precise alignment of the ultra-short throw projector.

  • Pre-installed security screws lockdown short throw arm and prevent tampering.

  • Kitted with Peerless’ Universal Precision Gear Projector Mount (PRG-UNV), patent-pending precision gears that provide exact projector image alignment.

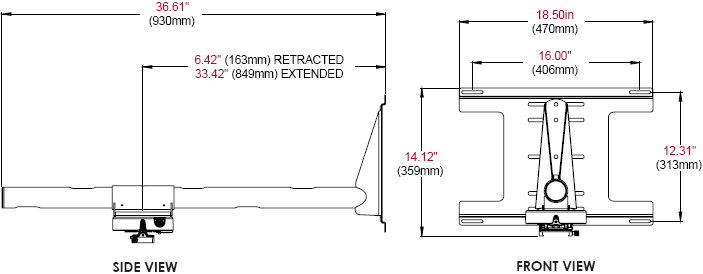

Technical Drawing of Peerless PSTK-028 Ultra Short Throw Projector Kit



Technical Drawing of Peerless PSTK-028 Ultra Short Throw Projector Kit









Description of Peerless PSTK-028-W:



This Universal Ultra-Short Throw Projector Mount (PSTK models) provides flexibility to install into a single stud or a double stud application and gives up to 6” (152 mm) of lateral adjustment for perfect projector placement any time. In addition, the universal sliding carrage design of the arm is easily adjustable to accommodate ultra-short throw projector distance requirements. Complimentary to the universal design of the ultra-short throw projector arm this comprehensive package comes with Peerless Universal Precision Gear Projector Mount that makes image alignment as easy as a simple turn of a knob. Tying the installation together is its internal cable management system that is the oasis of a clean clutter free installation. Peerless delivers a comprehensive solution in one package for any ultra-short throw projector installation.









Specifications of Peerless PSTK-028-W or PSTK-028:



Color:

Black and White

Mounting Pattern:

Up to 17.63" (448 mm)

Distance From Wall:

0 - 28" (0 - 711 mm)

Tilt:

±20°

Swivel:

±15°

Roll:

±10°

Mounting Surfaces:

Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)

Product Dimensions (W x H x D):

18.50" x 13.11" x 36.62" (470 x 333 x 930mm)

Product Weight:

16 lbs (7 kg)

Load Capacity:

50 lbs (22 kg)

Finish:

Scratch resistant fused epoxy

Package Size (W x H x D):

17.13" x 4.75" x 45.75" (435 x 120 x 1162mm)

Package Ship Weight:

16.26 lbs (7.3kg)

Package Contents:

  • Short throw arm

  • PRG-UNV

  • Installation hardware

  • Assembly instructions

  • PSTK Model also includes double stud wall plate

Units in Package:

1







Literature (Please open the following documents for more technical information)




Peerless PSTK-028 or PSTK-028-W Ultra Short Throw Projector Kit - Catalog Page

- pdf

Peerless PSTK 028 or PSTK 028 W Ultra Short Throw Projector Kit - Technical Drawing

- pdf

Peerless PSTK028 or PSTK028W Ultra Short Throw Projector Kit - Installation and Assembly

- pdf





Model PSTK-028, PSTK-028-W
Manufacturer Peerless Mounts
Part Number PSTK-028, PSTK-028-W
UPC 735029263043
Weight 16.00 lb(s)
Color Black or White
Dimensions (W x H x D) 18.50" x 13.11" x 36.62" (470 x 333 x 930mm)
Weight 16 lbs (7 kg)
Weight Capacity 50 lbs (22 kg)
Mounting Pattern Up to 17.63" (448 mm)
Distance From Wall 0"-28" (0-711 mm)
Tilt ±20 degree
Swivel ±15 degree
Roll ±10 degree
Mounting Surfaces Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)
Shipping Weight 16.26 lbs (7.3 kg)
Shipping Dimensions 17.13" x 4.75" x 45.75" (435 x 120 x 1162 mm)
