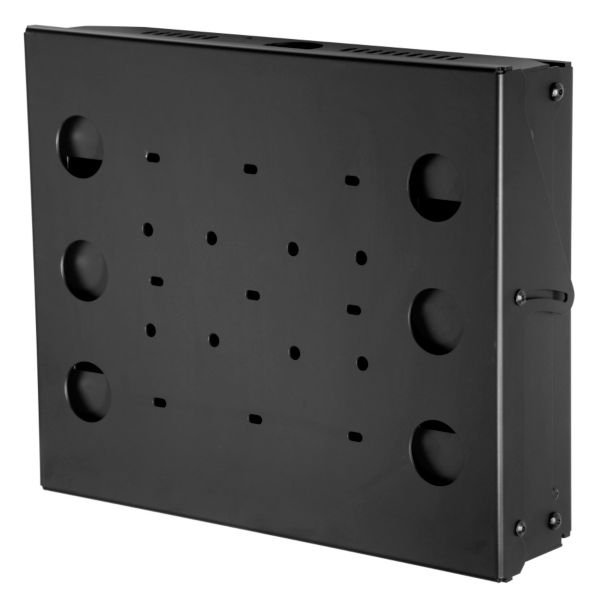

Peerless DST360 Single Box Solution to Digital Signage & Public Space
Description
Peerless DST360 offers a "single-box" solution to digital signage and public space flat panel installations. This versatile solution enables ceiling or wall mounting, providing plenty of space for a computer or media box storage. Designed for easy-assembly, this mount incorporates step-by-step installation instructions and a security option ensuring the display stays in place. Enhancing effectiveness of the mounted display, this product, when installed in a ceiling mounted application, incorporates a built-in swivel 360 degrees that positions the display at the perfect angle.
Technical Drawing
Specifications
| Color | Black |
| Minimum to Maximum Screen Size | 26" to 60" |
| Finish | Powder Coat |
| Security Features | Security Hardware |
| VESA Pattern | 200 x 100, 200 x 200, 300 x 300 |
| Distance from Wall | 4.28" (109mm) |
| Swivel Yaw | 360 degree |
| Tilt | Up to 20 degree |
| Weight Capacity | 150 lbs (68kg) |
| Dimensions | 18.63" x 15.27" x 4.28" (473 x 388 x 109mm) |
| Weight | 31.5 lbs (14.29kg) |
| Shipping Dimensions | 24.5" x 12.25" x 27.75" (622 x 311 x 705mm) |
| Shipping Weight | 40.5 lbs (18.37kg) |
| Warranty | Limited 5 year |
| Package Contents |
|
| UPC Code | 735029264521 |
Features
Security screws prevent tampering and theft
Built-in swivel up to 360º allows for optimum viewing angle for ceiling mount applications only
Includes hardware for installation to wood and metal studs, concrete or cinder block
Mounts to single stud or 16" stud centers (wall application)
Rated to 150 lbs (68kg) display max using dual metal stud, or 60 lbs (27.22kg) display max using single metal studs
Built in adaptor plate supports VESA 100 x 100, 200 x 100, 200 x 200 and 300 x 300mm
Works with all PLP-style VESA mounting hole adaptor plates
Access panel opens to a full 20º for serviceability, replacement, repair or maintenance
Clean profile design hides wiring and mount within enclosed wall plate
Available area within mount for housing a computer or media controller device 15" x 9" x 3" (381 x 229 x 76mm)
Flat and tilt wall mount functionality (up to 20º tilt)
Universal mounting in either portrait or landscape orientation
Ideal for wall or ceiling mounted applications
Product Options/Accessories
| Model | DST360 |
| Manufacturer | Peerless Mounts |
| Part Number | DST360 |
| UPC | 735029264521 |
| Mounting Options | Wall |
| Mounting Options | Ceiling |
| Color | Black |
| Finish | Powder Coat |
| Monitor Size | 26" to 60" |
| VESA | 200 X 100, 200, 300 |
| Weight Capacity | 150 lbs (68kg) |
| Distance From Wall | 4.28" (109mm) |
| Swivel | 360 degree |
| Tilt | Up to 20 degree |
| Dimensions | 18.6" x 16.5" x 4.3" (472 x 419 x 109mm) |
| Weight | 31.5 lbs (14.29kg) |
| Shipping Dimensions | 24.5" x 12.25" x 27.75" (622 x 311 x 705mm) |
| Shipping Weight | 40.5 lbs (18.37kg) |
| Warranty | Limited 5 year |
