$517.00

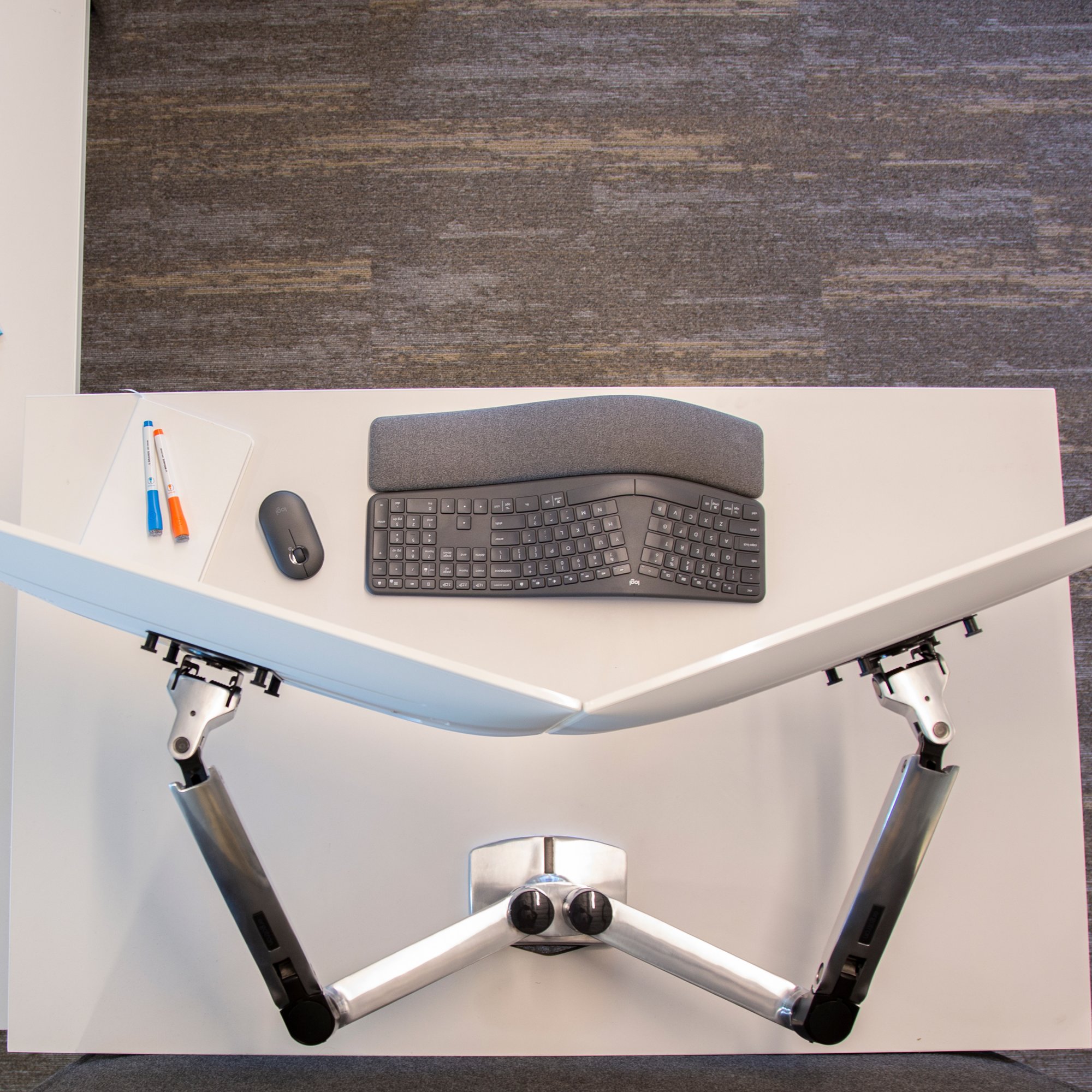

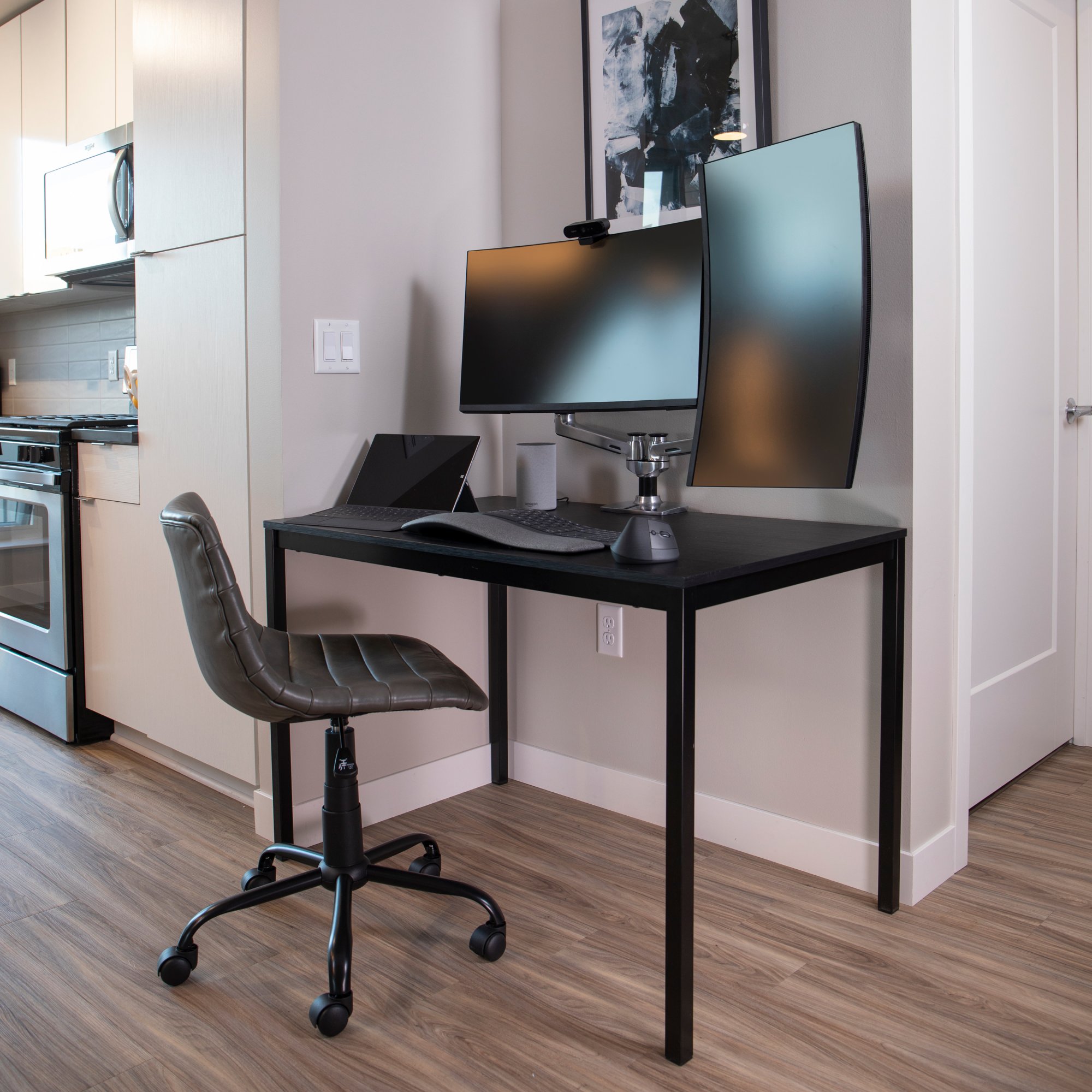

Ergotron 45-245-026 LX Dual Side-by-Side Arm

Please note: Larger displays ( 23" - 27" ) cannot be positioned in a stacking orientation. They can only be placed side by side.

Product ID 16108
HIGHLIGHTS
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Technical drawing
Technical drawing
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Technical drawing
Technical drawing
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm
Ergotron 45-245-026 LX Dual Side-by-Side Arm

Highlights

  • Desk mounting dual monitor arm in polished aluminum color
  • Side-by-side arm: Positions monitors side-by-side
  • Screen size: Monitor screen size cannot exceed 27"
  • Weight: Each monitor can weigh in the range 5-20 lbs
  • Horizontal extension: Monitors extend 20"
  • Vertical lift: Adjusts 13" vertically
  • Independent adjustment: Monitors can be adjusted independent of each other
  • Please see, if you want flexibility to stack your monitors vertically or place side by side
  • See if you want the desk mounting dual monitor arm in matte black
Animation of Ergotron 45-245-026 LX Dual Arm
Ergotron LX Desk Mount Folding Arm

Description

Ergotron 45-245-026 allows you to position dual monitors side by side for increased productivity. It also lifts the monitors above the desktop creating valuable desk space.

Durable steel and polished aluminum construction. Create a fully adjustable side-by-side monitor configuration that lifts both LCD screens up to where they’re easier to see while reclaiming valuable worksurface. Reposition your LCDs with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion. Save time by using multiple applications at once - eliminate toggling back and forth between documents and programs.

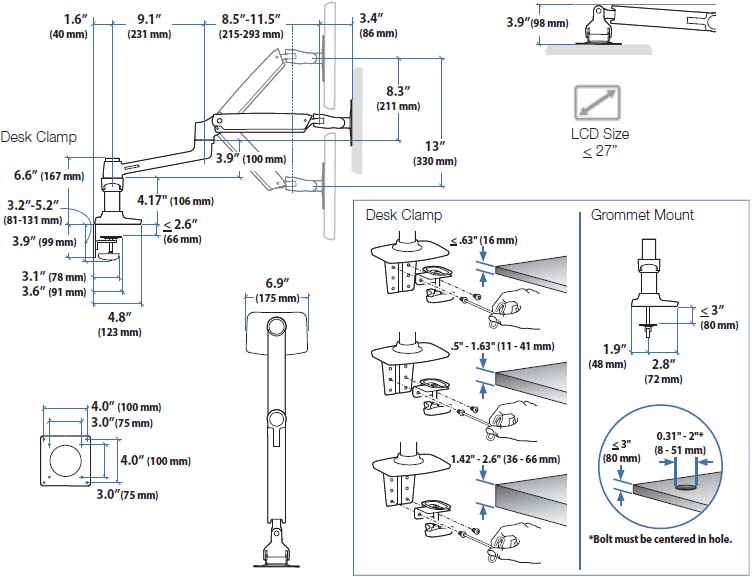

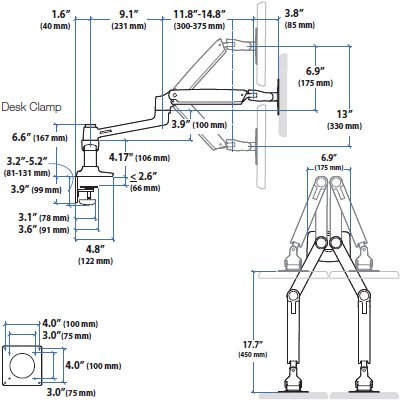

Technical Drawing

Technical drawing for Ergotron 45-245-026 LX Dual Side-by-Side Arm

Technical Specifications

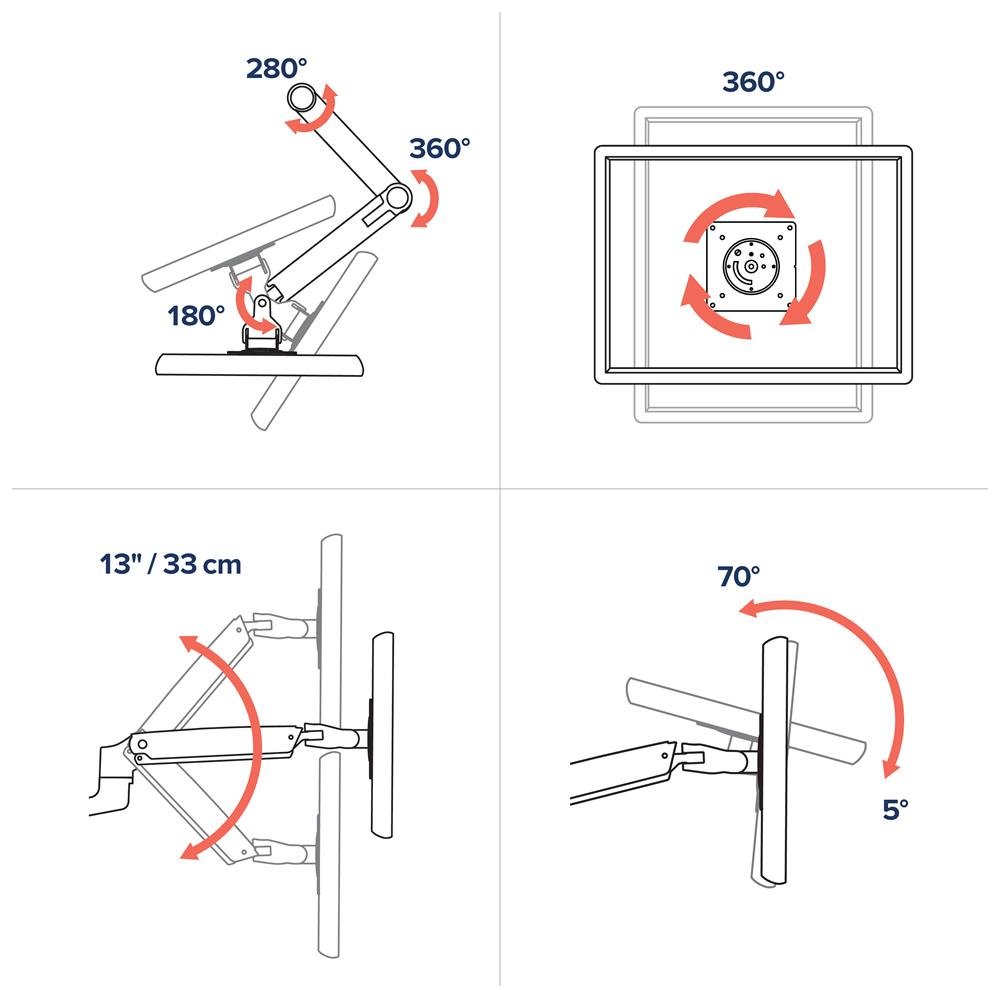

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

14 - 40 lbs

6.4 - 18.1 kg

13"

33 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-245-026
Description LX Dual Monitor Arm, Side-by-Side (polished aluminum)
Includes
  • Two arms
  • Two extensions
  • Pole
  • T-bracket
  • Base
  • Desk clamp
  • Grommet mount
Laptop Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
  • Steel and polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability
Larger Displays Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side
Weight Capacity Individual monitor weight = 7–20 lbs (3.2–9.1 kg); maximum combined weight = 14–40 lbs (6.4–18.1 kg)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

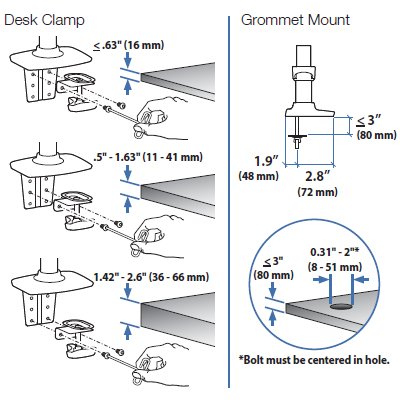

Desk Clamp Attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (8–50 mm) wide and up to 3" (76 mm) thick
Product Weight 13.9 lbs (6.3 kg)
Shipping Dimensions 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
Shipping Weight 17.3 lbs (7.9 kg)
Warranty Ten (10) years

Benefits

  • Position LCD screens for maximum ergonomic comfort with unparalleled range of motion
  • Promotes wellness in any work area.
  • Free up your desktop to increase your workspace.
  • 13-inch (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
  • Extends LCDs out up to 25" (64 cm) with an adjustment range of 18" (46 cm), push your displays out of the way when not in use
  • Experience productivity gains. Check out our Multi-Display Payback Calculator -determine the cost benefit associated with adding a second display
  • Open and view multiple applications and documents, eliminating the need to toggle between applications.
  • Easily turn one or both screens from landscape mode to portrait mode - view entire pages without scrolling
  • Embedded with patented motion technology, these arms enable light-touch adjustments without any knobs or levers

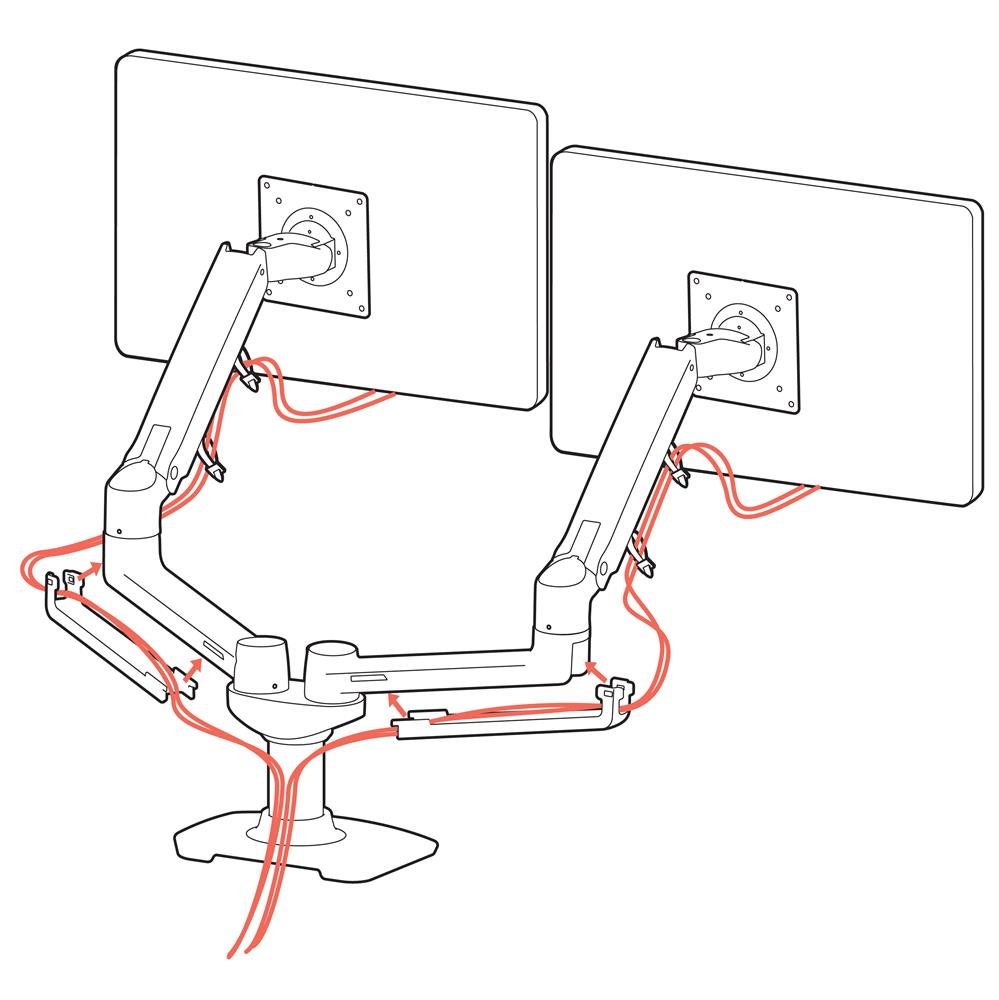

  • Cable management feature routes cables under the arm, out of the way
  • Easy to use - simple installation and effortless operation
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
  • Patented Constant Force lift-and-pivot motion technology

Frequently Asked Questions

q I own an Ergotron 45-245-026 LX Dual Side-by-Side Arm, which I use attached to a Varidesk stand-up desk. I wish that the vertical tube was 10" instead of 4". Do you have a replacement/accessory part like that?
a

Unfortunately this item does not have an interchangeable pole.

q Can I use this arm with one 200mm x 100mm VESA monitor and one 100mm x 100mm VESA monitor?
a

Yes, you can. However the hole pattern on the two VESA plates of this arm is 100 x 100 mm & 75 x 75 mm and you would need to get the VESA Adapter Kit so that the 200x100 VESA hole pattern can fit with the 100x100 hole pattern. Please consider that the weight of this VESA Adapter Kit is 1.8 lbs while calculating the compatibility of your monitors with this arm.

q Does this unit come with desk clamp and a grommet mount?
a

Yes, the LX Dual Side-by-Side Arm includes the desk clamp and Grommet mounts.

Model 45-245-026
Manufacturer Ergotron
Part Number 45-245-026
UPC 698833012033
Weight lb(s)
Color Polished Aluminum
Weight Capacity Individual monitor weight = 7–20 lbs (3.2–9.1 kg); maximum combined weight = 14–40 lbs (6.4–18.1 kg)
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Clamp Thickness Attaches to edge up to 2.6
Grommet Thickness Attaches through hole 5/16
Shipping Dimensions 19.25
Shipping Weight 17.3 lbs (7.9 kg)
Warranty Ten (10) years
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Weight 13.9 lbs (6.3 kg)
Maximum Monitor Size 27
Monitor Placement Side-by-Side
Price $400 - $499

Customer reviews

  • 1 stars 1
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 2
(3.7 out of 3)
This product does not meet my needs.

by John H, Lakewood, Colorado, May 25, 2017

I had hoped with the three joints, the level of flexibility would be adequate. The monitors could not be adjusted to the proper viewing locations due to the proximity to the wall. However, I am unwilling to move my desk any further from the wall.

Love It!

by Karen L, North Carolina, Jun 14, 2016

The dual side-by-side arms are awesome. This unit frees up desk space and the monitors can easily be adjusted to any height, distance or width needed. I would definitely recommend them to anyone using dual monitors. It is easily assembled and the technical support is great if you have questions.

Wonderful Solution for our Reception Desk.

by Jenn C, Texas, Feb 22, 2016

We were looking for a solution to raise the monitors at our reception desk and were having difficulties finding a solution that would work around the reception desk over hang on the top. This solution allows for the monitors to be adjusted forward and up as to accommodate that need. If I had to make one change, I would request that they were able to rise just 2 inches taller.
