Innovative 9183-15 Adjustable Point of Sale Countertop Mount

Product ID 16129


  • Countertop monitor mount for retail, restaurant industry
  • Mounts on top of surface (counter/table)
  • Pole rests entirely on top of counter
  • Pole height range by model: 11"-15", 15"-23", 23"-39"
  • Weight capacity: up to 25 lbs
  • Screws are concealable
  • Looking for mount that passes through counter?


Designed for high-traffic retail environments, Innovative 9183-15 enables monitor height to be adjusted between 11" and 15". 9183-23 enables monitor height to be adjusted between 15" and 23". 9183-39 enables monitor height to be adjusted between 23" and 39". This countertop point-of-sale mounting solution includes an internal cable management system and through counter mount.

Retail environments require retail-ready solutions. Our adjustable countertop POS mount features easy height adjustment, an attractive appearance, internal cable management, and durable construction - all at an appealing price point!

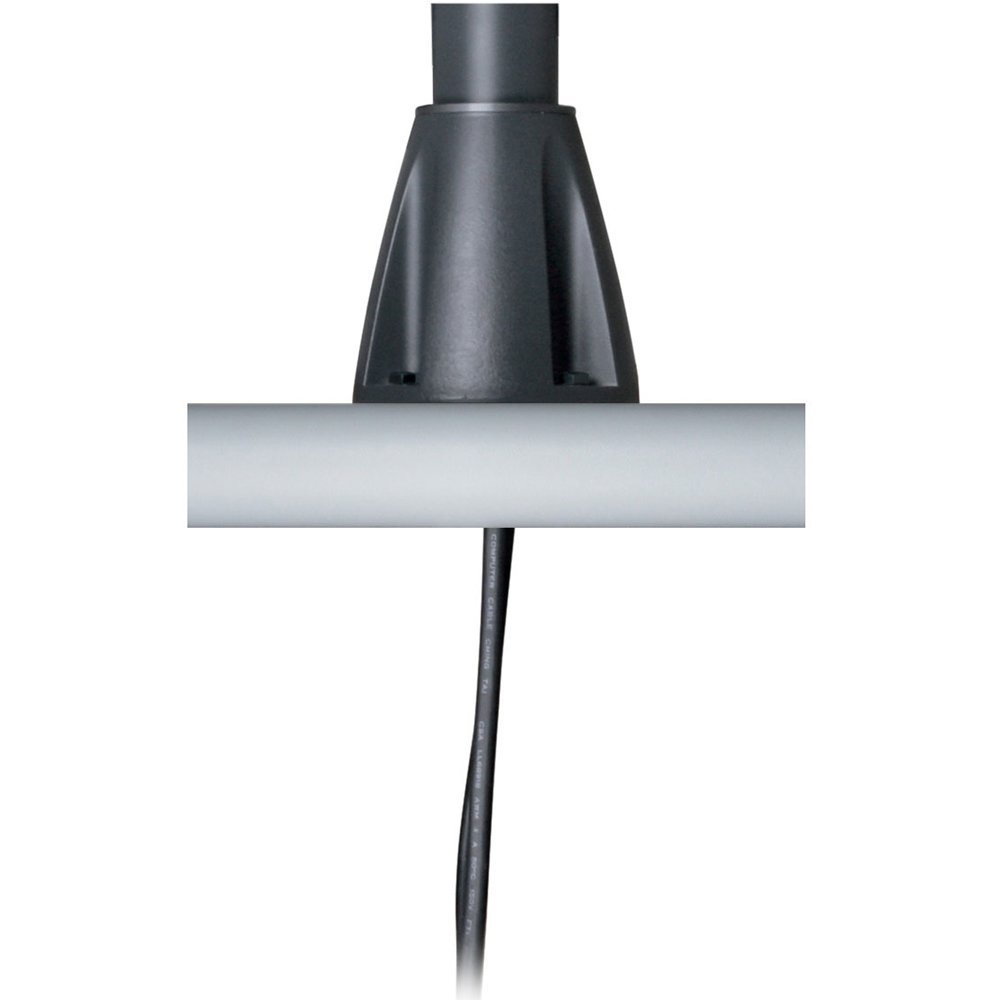

The monitor may be pivoted or turned to suit the user's needs (or may be locked in position if you don't wish to allow adjustment). Height is adjusted via an integrated knob on the tube. Cables are kept entirely out of view (and out of harm's way) - they may either pass through the counter or exit behind the mount.

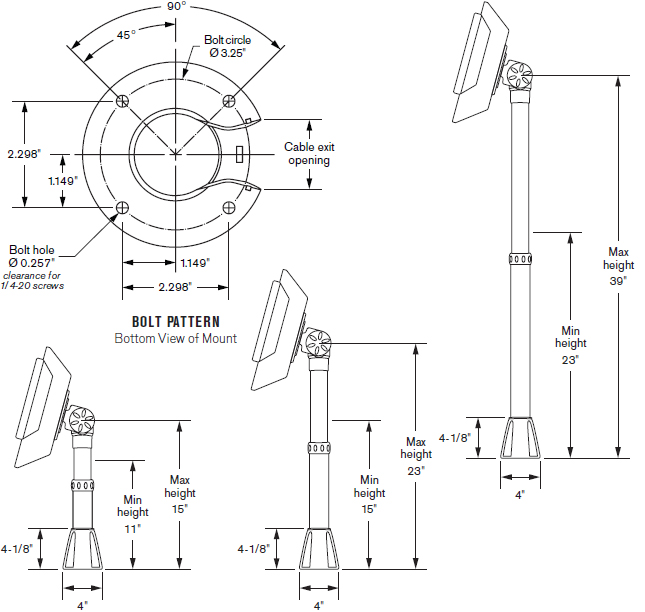

Technical Drawing

Technical Drawing for Innovative 9183 Series Adjustable Point of Sale Countertop Mount

Technical Specifications

Color 162 - Dark Grey, 104 - Vista Black
Height Range
  • 9183-15: 11"-15"

  • 9183-23: 15"-23"

  • 9183-39: 23"-39"

VESA Compatibility VESA-monitor compatible - 75mm & 100mm VESA adapter included; please call for non-VESA options
Monitor Weight Up to 25 lbs


  • Countertop mount supports monitors, signature capture devices, kiosks, and more

  • Quickly adjust monitor height from 11 to 15" or 15 to 23" or 23 to 39" above the counter

  • Monitor mount features internal cable routing; cables may pass through the counter or exit behind the mount

  • POS display mount is made of durable construction and stands up to retail use and abuse

  • VESA-monitor compatible - 75mm & 100mm VESA adapter included; please call for non-VESA options

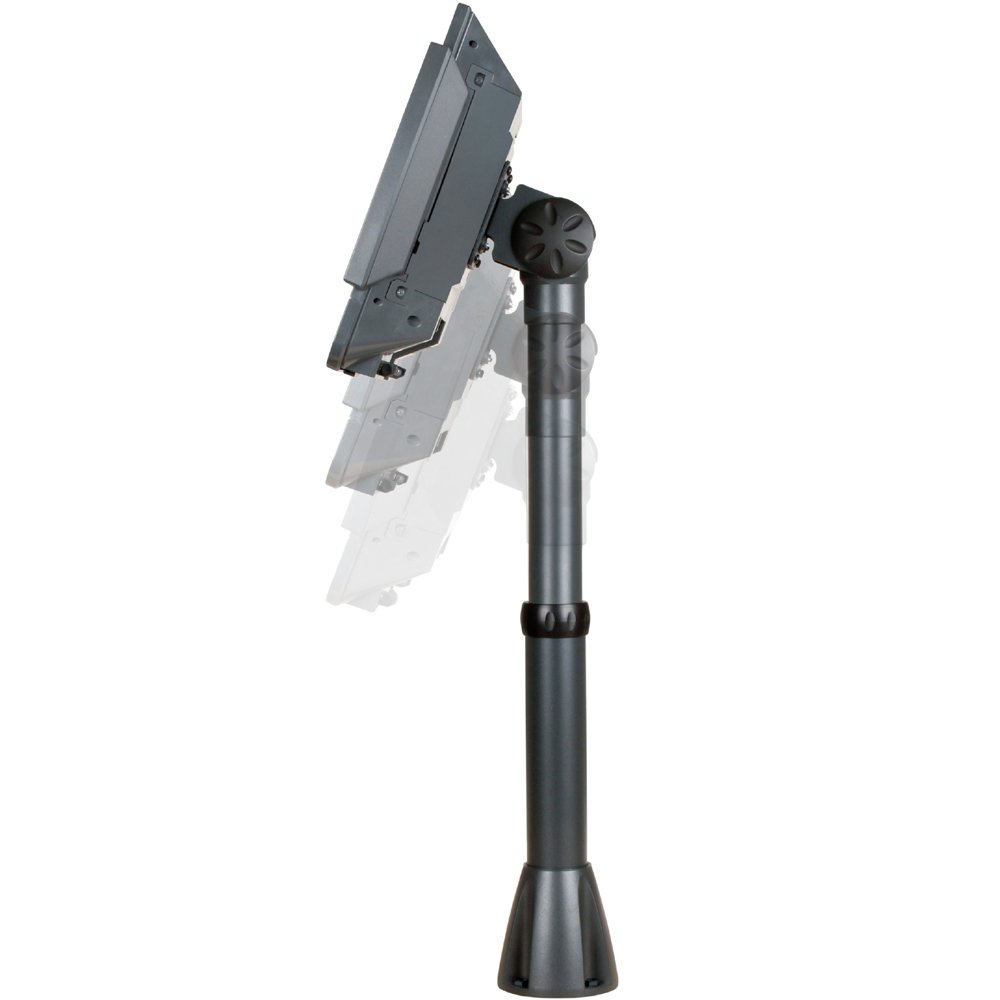

  • Monitor can be pivoted and turned, or locked in place if desired

  • Fast setup

  • Supports monitors up to 25 lbs

Frequently Asked Questions

q Does the base detach from the pole? Basically, I need to trim the pole to be a bit shorter.

Yes, you can remove the pole from the mount and trim the pole, if needed. Please be advised that your warranty will be annulled, once you cut the pole.

Model 9183-15
Manufacturer Innovative LCD Arms
Part Number 9183-15
Mounting Options Desk
Monitor Arm Types 1 Monitor
Height Range 11"-15"
Weight Capacity Up to 25 lbs
Mounting Pattern 75mm & 100mm VESA adapter included, please call for non-VESA options
Color 104 - Vista Black
Dimensions Base: Ø 4"
Shipping Dimensions 18" L x 5.5" W x 5.5" H
Shipping Weight 5 lbs
Warranty 10 Years
