Desk Mount Laptop Arm, ErgoDirect EDL-LXD

Desk Mount Laptop Arm, ErgoDirect EDL-LXD

Product ID 16146
Desk Mount Laptop Arm, ErgoDirect EDL-LXD
Desk clamp and grommet mount
Notebook Tray at work!
Technical drawing
Desk Mount Laptop Arm, ErgoDirect EDL-LXD
Desk clamp and grommet mount
Notebook Tray at work!
Technical drawing



Based on the popular Ergotron LX Desk Mount Arm, we have developed a unique solution - Adjustable Desk Mount Laptop Arm, EDL-LXD.

Made of durable polished aluminum construction, this ErgoDirect laptop arm is a sleek addition to your office. With a 25" vertical extension and 13" height adjustment, this product allows the user to position the laptop according to his/her comfort and need. This leads to increase in productivity as well as ergonomic relief. EDL-LXD is ideal for any office or home office environment.

EDL-LXD is updated version of ED-NB-LXDM.

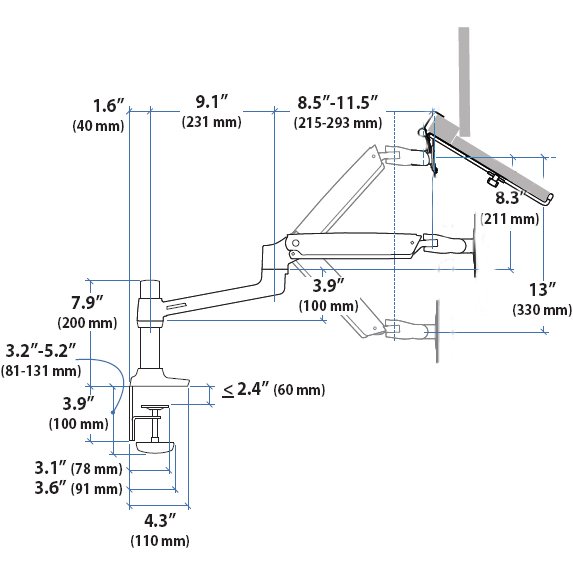

Technical Drawing

Technical Drawing for Ergotron LX Notebook Desk Mount Arm

Product Information

Description Desk Mount Arm (polished aluminum) and Notebook Tray (black)
  • Desk Mount arm
  • Extension
  • Desk clamp and grommet mount bases
  • Laptop Holder
Pole Diameter The Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 5.9".
Improved Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position, perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm, also includes theft deterrent anchor holes for cable locks
Mounting Options Desk Clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick. Grommet Mount attaches through surface holes 0.31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Monitor Depth Monitor depth may affect weight capacity.
Shipping Dimensions 25.5"H x 11.25"W x 7.25"D (65 x 29 x 18 cm)
Shipping Weight 9.75 lbs (4.4 kg)
Warranty Five (5) years


  • The Desk Mount Arm along with the notebook tray provides ergonomic comfort.
  • By adjusting the display according to the user`s needs, reduces shoulder, neck, back and eye stress.
  • The cable management feature clubs the cables under the arm and out of sight and way of the user.
  • The arm extends 25" from the wall, enabling the display to be pushed out of the way, when not in use.
  • The 13" height adjustment of the display makes it suitable for most users.
  • The adjustability of the arm allows the user to move the display away from the desk, clearing the desktop space for non-computer work.

Frequently Asked Questions

q I note that there an option to add a LX 9" Extension arm. What is this option and why would I need it?

The 9" extension is an additional link to the arm and it adds 9" to the horizontal reach. This would be needed if you desire more than 20" horizontal extension.

q What are the dimensions of the notebook tray?

The dimensions of the notebook tray in this product are 9” x 9.25”-15.75”.

Manufacturer Ergotron
Part Number EDL-LXD
Color Polished Aluminum Arm and Black Notebook Tray
Weight Capacity 2.5-12 lbs (1.14–5.45 kg)
Warranty 5 Years
Mounting Options Desk
Pole Diameter The Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 5.9".
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation (P/L) 360 degree
Monitor Arm Types Laptop/Notebook
