The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Premier UNI-STA or UNI-STB Short Throw Projector Wall Mount Arm - extends 7"-27" from Wall

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16237
Options
Our Price: $429.00
Shipping: $38.98 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Related Products:

Part Number

Description

UNI-STA

White Universal Short Throw Projector Wall Mount Arm - extends 7"-27" from wall

UNI-STB

Black Universal Short Throw Projector Wall Mount Arm - extends 7"-27" from wall





General Information



Image of Warranty and Returns





Nationwide Delivery Image

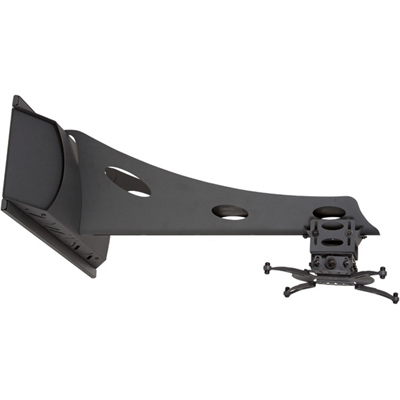

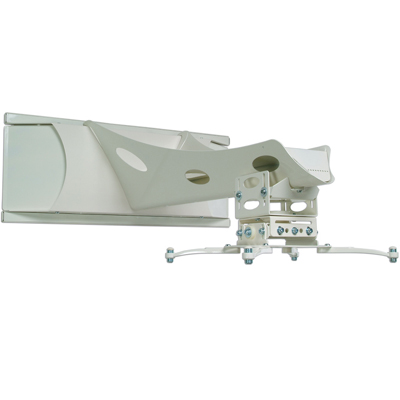

Premier UNI-STA or UNI-STB Universal Short Throw Projector Wall Mount Arm



Premier UNI-STA or UNI-STB Short Throw Projector Wall Mount Arm









Features of Premier UNI STA or UNI STB Short Throw Arm:

    1.  Fits most popular short-throw projectors on the market.



    2.  Extends 27" from the wall.



    3.  Includes wall-mounted GearBox for PC, MAC Mini or control modules.



    4.  Includes universal projector mount (PDS-PLUS).



    5.  For longer-throw projectors, check out model UNI-EXT (includes extension).



    6.  OSHPD & DSA approved (OPA-2440-07).









Technical Drawings for Premier UNISTA or UNISTB Short Throw Projector Mount



Technical drawings for Premier UNI-STA or UNI-STB Universal Short Throw Projector Wall Mount Arm









Description of Premier UNI-STA or UNI-STB:

Premiers universal short-throw projector arm is crafted to support all of the latest short-throw projectors on the market today. Offering more adjustability than any other projector arm on the market, the UNI-STA adjusts from 7" to 27" (up to 67" from the wall when used ordered as Model: UNI-EXT). Best of all, it does not require that a stud be located in the center of your whiteboard/screen (which is hardly ever the case). Happy to mount to a single stud or dual studs at 16", 18" or 24" spacing, the UNI-STA is the most flexible and installer-friendly short-throw arm on the market.







Specifications:

Color:

Black or White

Ship Weight:

UNI-STA: 32 lbs

UNI-STB: 30 lbs

Height:

10.71" (272mm)

Adjustable Depth:

7.01"-27.41" (178mm-696mm)

Adjustable Height:

2.01" (51mm)

Pitch:

+/-16.5°

Roll:

+/-7.5°

Yaw:

+/-41°









Frequently Asked Questions:

What if I need to adjust the height of the projector after installation is complete?
The included adjustable mounting assembly allows for up to 2" of vertical adjustment after the fact. Plus, you can completely remove the assembly and mount direct for even more vertical correction.



Can I add speakers to this mount?
Yes. We offer an audio upgrade package. You can also order the short-throw mount with audio already included.



What if I want to dress the cables out the end of the mounting arm, not the side ports?
The "nose piece" at the end of the arm is perforated. Simply bend back the bottom with pliers and you will have more than enough room for cables, yet maintain a clean looking installation.




Literature (Please open the following documents for more technical information)

Description

File Type

Premier UNI-STA Universal Short Throw Projector Wall Mount Arm - Data Sheet

- pdf

Premier UNI-STA or UNI-STB Short Throw Projector Mount Arm - Specifications

- pdf

Premier UNISTB or UNISTA Short Throw Projector Wall Mount - Installation Manual

- pdf
