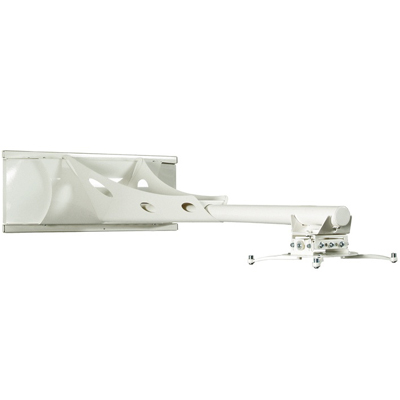

White Universal Short Throw Projector Wall Mount Arm - extends 37"-67" from wall
UNI-EXB

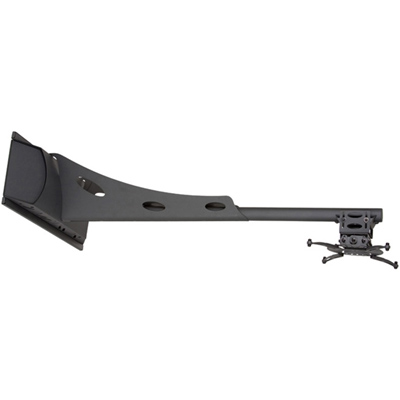

Black Universal Short Throw Projector Wall Mount Arm - extends 37"-67" from wall
General Information
Premier UNI-EXT or UNI-EXB Universal Short Throw Projector Wall Mount Arm
FeaturesofPremier UNI EXT or UNI EXB Short Throw Arm:
1. Extends from 37"-67" from wall.
2. Includes wall-mounted GearBox for PC, Mac Mini or control modules.
3. Mounts to single and dual wood studs (16", 18" and 24") and concrete.
4. Includes universal projector mount (PDS-PLUS).
5. Fast, one person installation.
6. Projectors with shorter throw distances (up to 27") may order UNI-STA.
Technical Drawings forPremier UNIEXT or UNIEXB Short Throw Projector Mount
Description of Premier UNI-EXT or UNI-EXB:
Premiers universal short-throw projector arm extends up to 67" and is crafted to support all of the latest short-throw projectors on the market today. Offering more adjustability than any other projector arm on the market, the UNI-EXT adjusts from 7" to 67" from the wall.
Specifications:
Color:
Black or White
Ship Weight:
UNI-EXT: 50 lbs
UNI-EXB: 40 lbs
Height:
10.71" (272mm)
Adjustable Depth:
36.97"-67.01" (939mm-1702mm)
Adjustable Height:
2.01" (51mm)
Pitch:
+/-16.5°
Roll:
+/-7.5°
Yaw:
+/-41°
Frequently Asked Questions:
What if the studs in the wall are not centered to the screen/ whiteboard? Our slotted GearBox™ wall plate allows for several inches of lateral shift and can fit studs at 16", 18" and 24" spacing. It can even mount to a single stud.
How much equipment can I store in the GearBox? With over 260 cu. in. of interior space, you could fit a device up to 8" x 13" x 2.5" (H x W x D). Ideal for a Mac mini or small control device.
What if I don't know the throw distance needed for my projector? How do I select the right short-throw mounts? Most owners manuals have a throw distance chart that shows the appropriate distance. We assume most users are looking to project a 60"-100" screen and associate accordingly in our mount locator on www.mounts.com.
