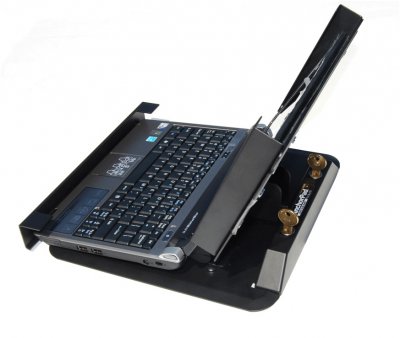

AnchorPad 31177BP Anti-Theft Secure Stand (Battery Pack)
AnchorPad 31177 Theft Prevention Notebook Laptop Security Stand 31177BP
Features of AnchorPad 31177
- Protects laptops from falls, drops and theft.
- Use on table tops, carts, wall mounts.
- Fits most laptops from 9" to 16.5" wide.
- Extremely strong, delivers up to 20,000 lbs anchoring strength.
- Simple to install with no tools required.
- Very high security solution at modest cost.
- Computer easily snaps in and out for authorized user.
- Laptop monitor remains open - monitor tilts back at 120°
- Easily removed by authorized user with no damage to attaching surface.
- Newly designed wing brackets.
- Works with laptops that have external extended capacity battery packs.
Description of AnchorPad 31177

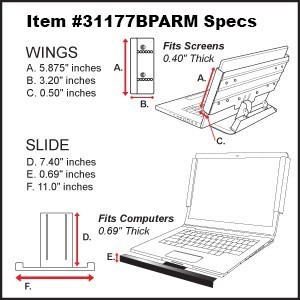

New improvements have increased the security level of the Laptop Security Stand. It provides security hardware solutions for all types of computers and electronics. The new adjustable front slide bracket adds security and prevents lifting of the keyboard. The wing brackets are also adjustable for a perfect fit. If your laptop has an extended battery pack, we recommend the 31177BP. We recommend the 31177ARM with a built-in VESA hole-pattern (75-100mm) if your laptop will be wall or desk-mounted.
|Fits Laptop - Width||From 9" up to 16.5"|
|Fits Laptop - Depth||From 8.75" up to 14"|
|Monitor Thickness||Up to 1"|
|Back Plate Assembly Material||16 gauge steel - with powder coat finish|
|Base Plate Adhesive Mat - Specs (11" W x 10" D)||16 gauge steel - with powder coat finish|
|Lock Bar Mechanism||Die-cast aluminum - with powder coat finish|
|Color||Raven Black with powder coat finish|
|Method of Attachment||1/8" pressure sensitive urethane adhesive foam with up to 20,000 lbs of adhesive strength|
|VESA Compliant||75 mm to 100 mm hole pattern|
|Base Plate Adhesive Mat Removal Procedure||Built in self removal system - hardware included|
|A||1 - 11 in x10 in base plate with high strength adhesive foam (2 weld nuts glued in place)|
|B||1 back plate (paddle bracket and wing brackets attached)|
|C||1 paddle bracket with screw at the bottom|
|D||1 set wing brackets (1 left, 1 right)|
|E||1 slide bracket (attached with two screws)|
|F||1 lock block|
|H||2 wafer locks|
|I||2 weld nuts|
|J||8 bump on`s|
|K||6 screws (2 qty to assemble the paddle bracket to the back plate and 4 qty to assemble the wing brackets to the back plate)|
|L||2 screws (2 qty to assemble the slide bracket to the base plate)|
|M||1 self removal kit|
|N||3 Allen wrenches (1 for paddle bracket, 1 for wing brackets, 1 for slide bracket)|
Security Plate Lockdown Arms associated parts are designed only as theft deterrents, not theft-proof. Ergodirect.com in no event will be held liable for any loss or damage including without limitation, indirect or consequential loss or damage, or any loss or damage whatsoever arising from loss of data or profits arising out of or in connection with the use of this product.
|Part Number||31177, 31177BP|
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Limited Warranty Information
Business Machine Security, Inc. warrants the original purchaser of Business Machine Security, Inc. products that they be free of defects in material and workmanship for life from the date of purchase. User assumes all risk and liability resulting from the use of the products, whether used singly or in combination with other goods. Business Machine Security, Inc. neither assumes nor authorizes any person to assume for it any liability in connection with the sale or use of the products sold and there are no oral agreements or warranties collateral to or affecting this limited warranty. Business Machine Security, Inc.'s only responsibility under this warranty is for the repair or replacement of any Business Machine Security, Inc. product found to be defective during the warranty period. Business Machine Security, Inc. assumes no responsibility whatsoever for special, indirect or consequential damages resulting from the use of Business Machine Security, Inc. products, and specifically assumes no liability for the loss or damage to equipment or data. The remedies set forth in this Limited Warranty are exclusive and the liability of Business Machine Security, Inc. with respect to any contract of sale or anything done in connection therewith, whether in contract, in tort, under any warranty or otherwise shall not, except as expressly provided herein, exceed the price of the equipment or part on which such liability is based. Any damage caused by the improper use, operation beyond capacity, substitution of parts or equipment not approved by Business Machine Security, Inc., improper packaging, failure to observe installation or other instructions, transit, or repair by one other than Business Machine Security, Inc., will not be covered by and shall void this Limited Warranty.
This is the only warranty given, and excludes all other warranties, including any warranty of merchantability or fitness for a particular purpose.
