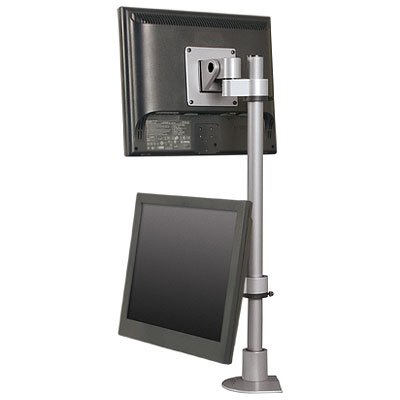

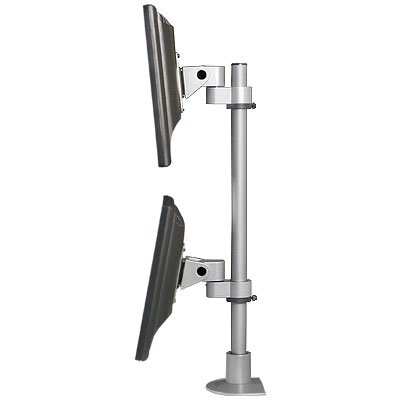

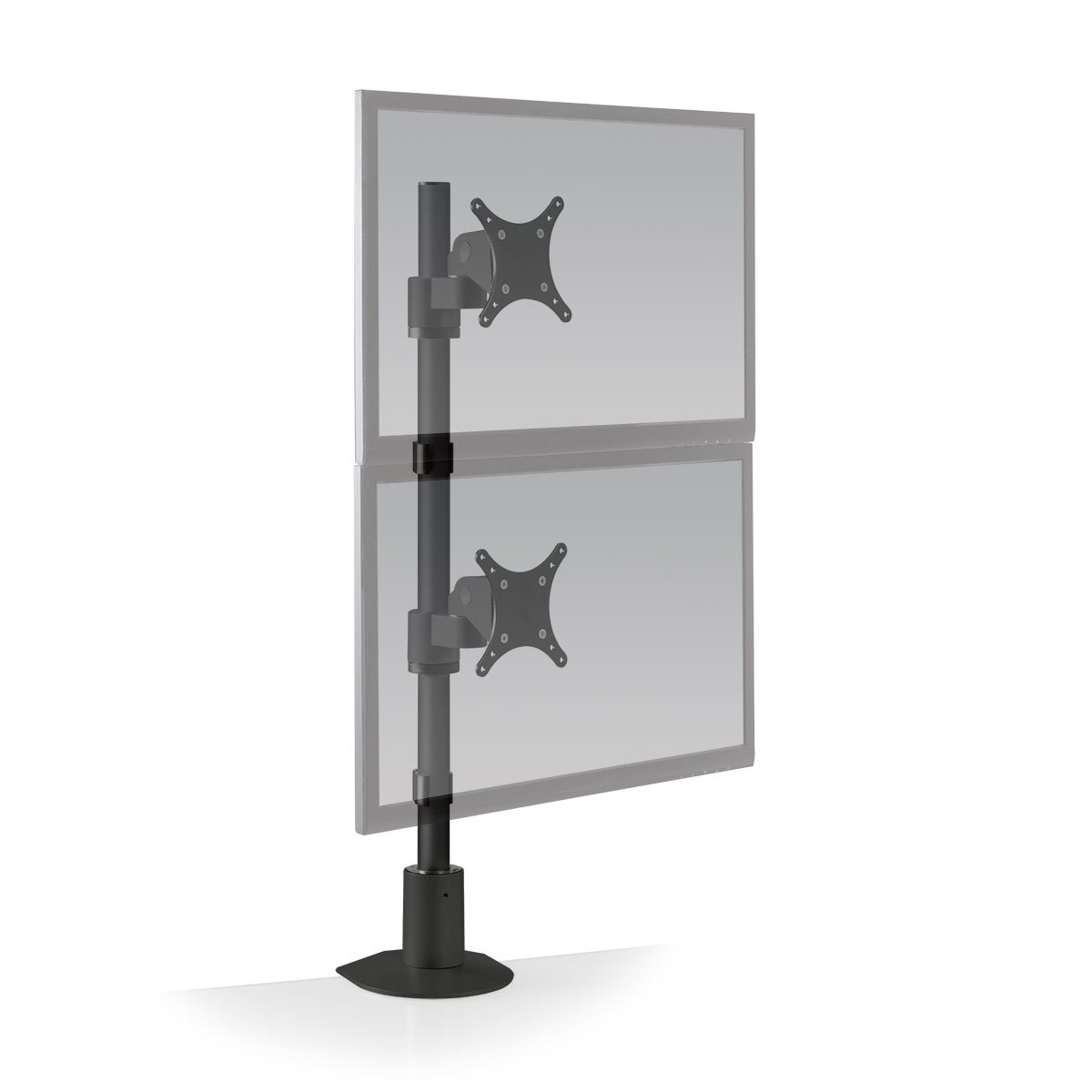

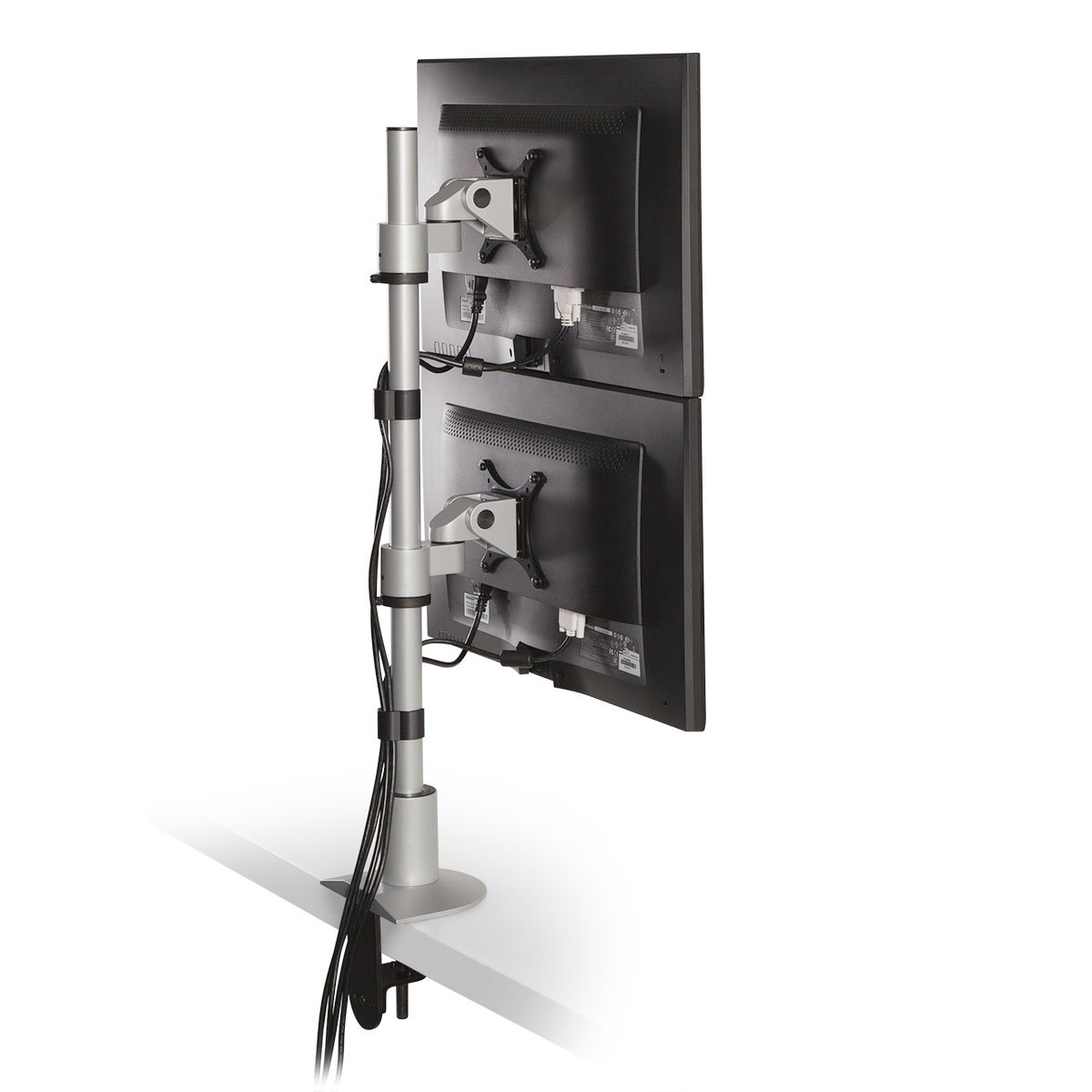

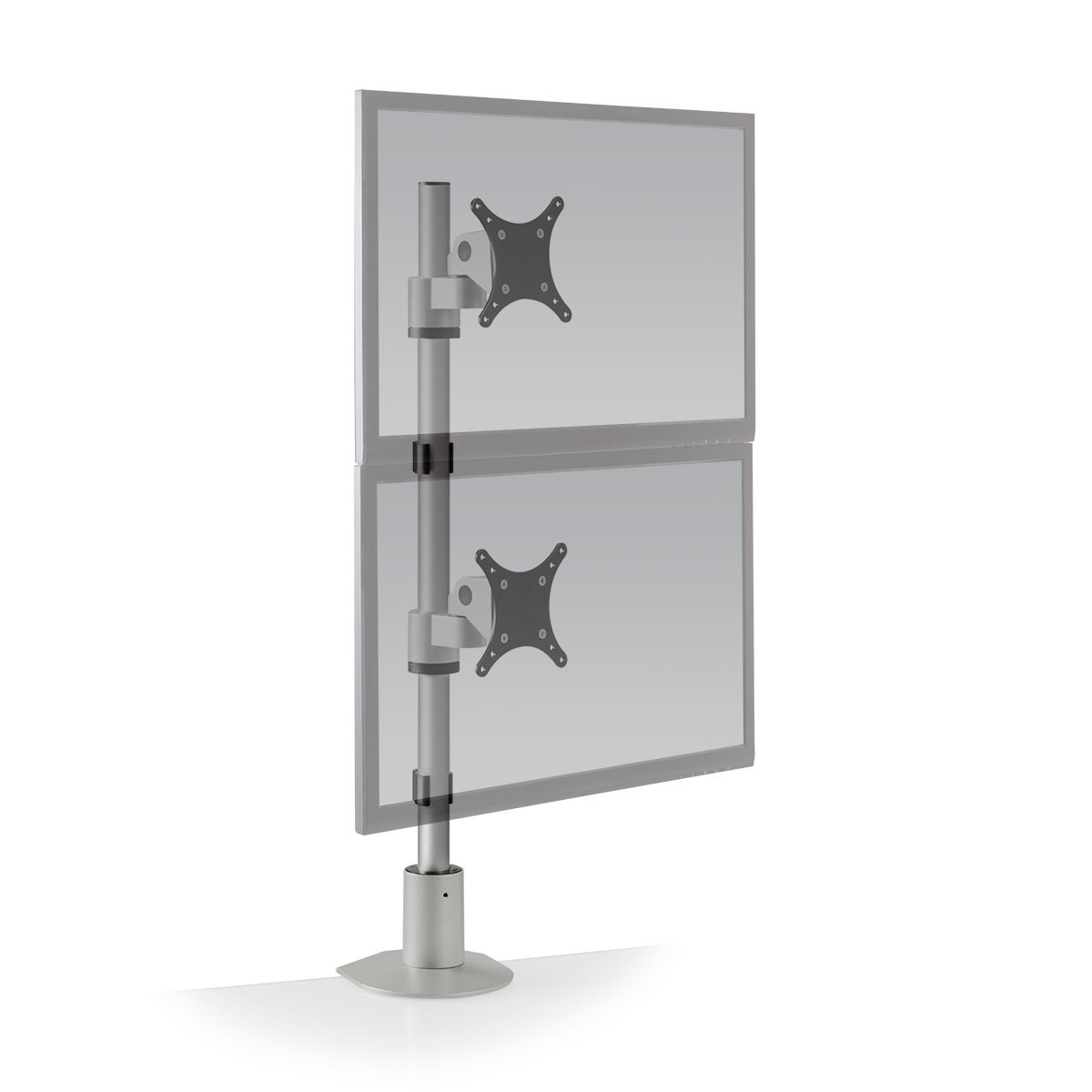

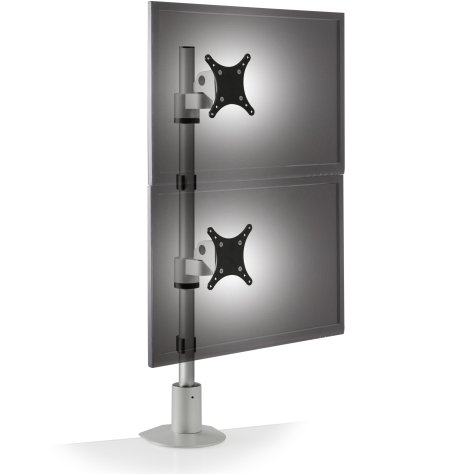

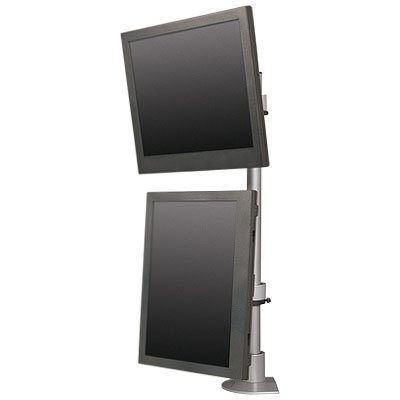

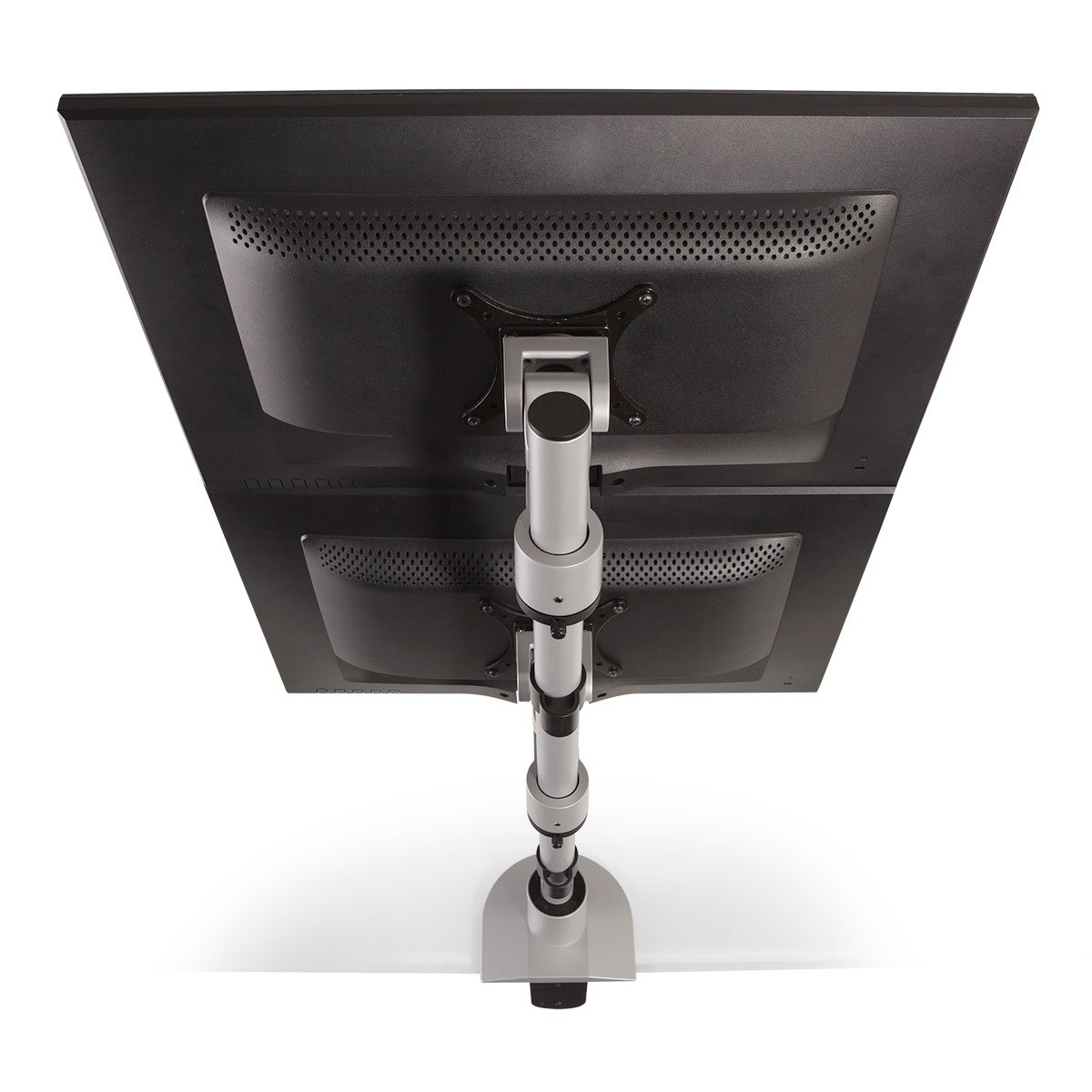

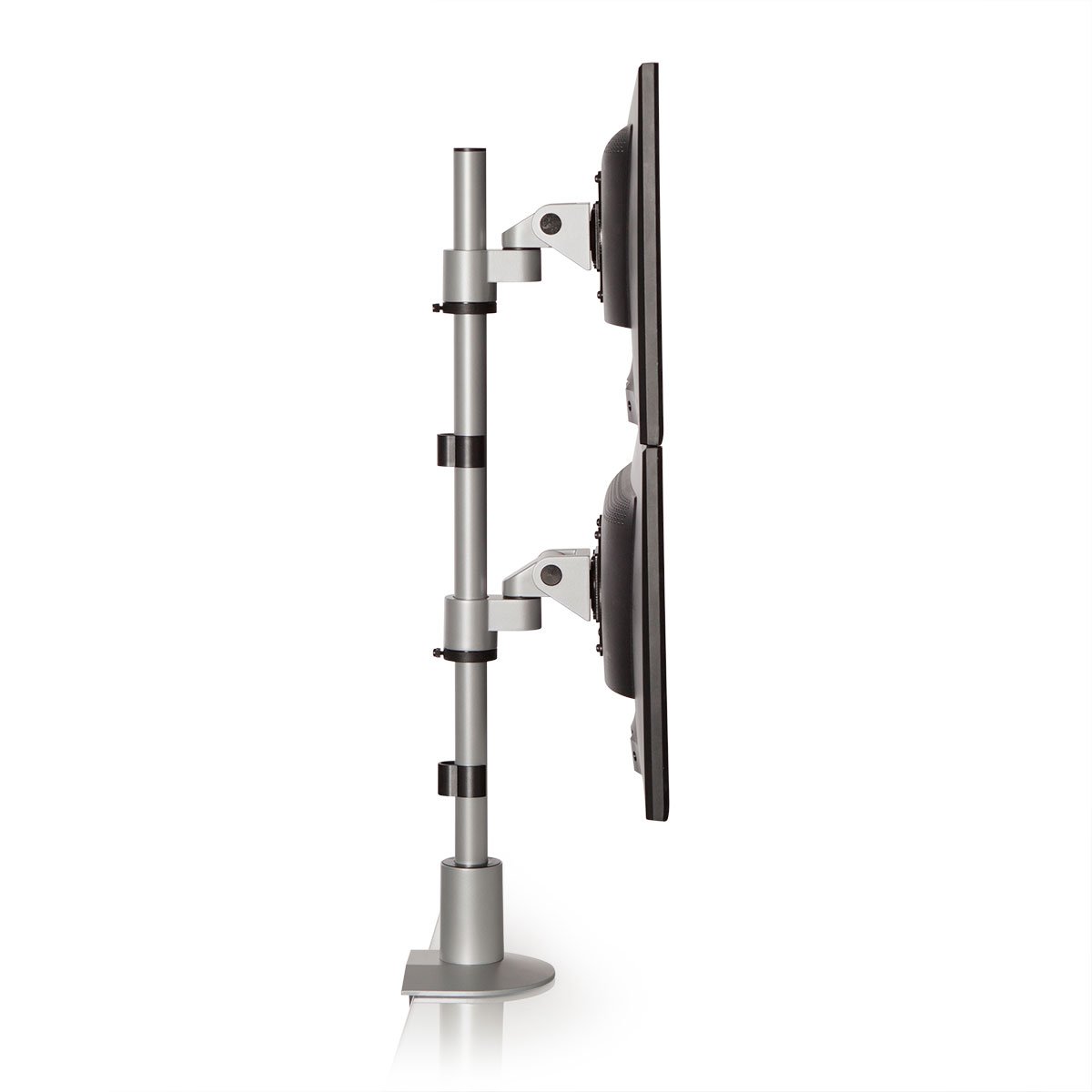

Innovative 9136-D-28 Articulating Dual 28 inch Flat Panel Pole Mount

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 16361


  • Dual monitor pole mount
  • Mount two monitors on top of each other on a pole at any height
  • Usable pole length is 28" but 29.6" before mount
  • Saves space on desk
  • Allows for independent pivot, tilt of each monitor
  • Mount supports up to 45 lbs per monitor

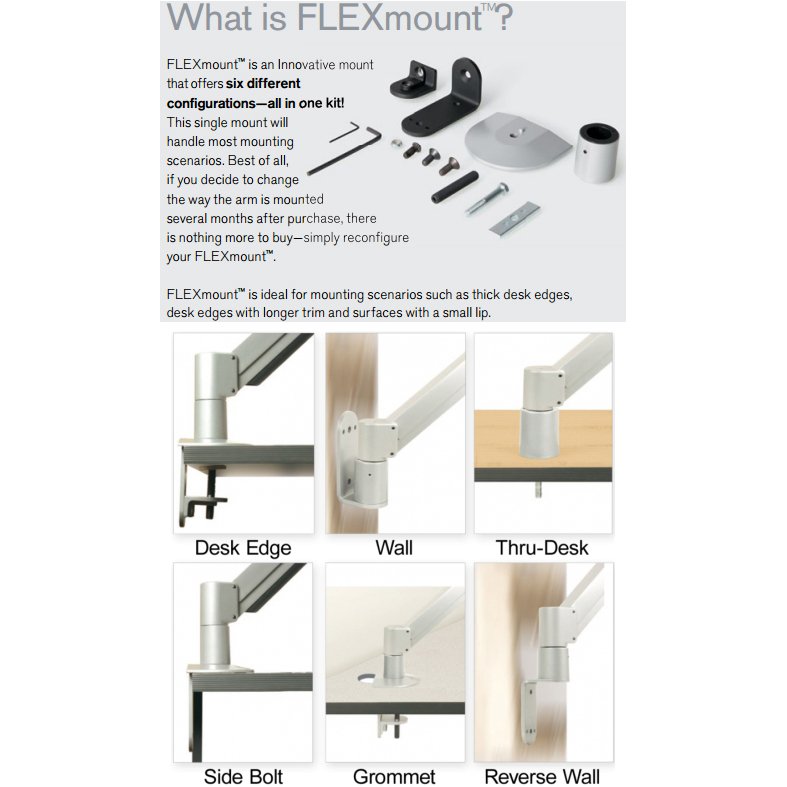

Innovative FLEXmount


Work ergonomically and save space with innovative 9136-D-28 dual pole monitor mount. Each monitor arm moves independently and can be positioned at any height along the 28″ pole mount.

Save desk space by elevating two monitors above the work surface with this handy mount. Innovative 9136-D-28 allows independent pivot and tilt of each monitor. Position at any height along the included 28" pole.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

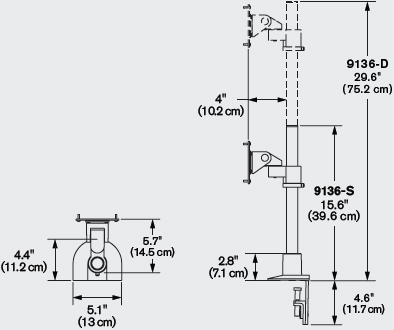

Technical Drawing

Technical Drawing for Innovative 9136-D-28 Articulating Dual 28 inch Flat Panel Pole Mount

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 27"
Extension Range 5.7" (14.5 cm)
Pivot Landscape / Portrait
Rotation One rotation joint
Pole Height 28" (71.12 cm)
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm adapter included
Weight Capacity Up to 45 lbs (20.4 kg) per monitor
Warranty 10 years


  • Dual monitor stand includes FLEXmount with six mounting options

  • Standard 28" pole included. Call for custom size options

  • Articulating flat panel pole mount enables independent pivot, tilt, and rotation of monitors

  • Monitor tilter mechanisms can tilt over 200 degrees

  • Dual monitor mount features adjustable tension at joints, making it ideal for touch-screen applications

  • Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)

  • Flat panel stand is VESA-monitor compatible - 100mm VESA adapter included. Please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

Model 9136-D-28-FM
Manufacturer Innovative LCD Arms
Part Number 9136-D-28-FM
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 2 Monitors
Mounting Options Pole
Color 104 - Vista Black, 124 - Silver
Pole Length 28" (71.12 cm)
Tilt 200 degree
Mounting Pattern VESA 100mm
Weight Capacity Up to 45 lbs (20.4 kg) per monitor
Number of Monitors 2 Monitors
Monitor Size Up to 27"
Extension 5.7" (14.5 cm)
Pivot Landscape / Portrait
Warranty 10 years
Maximum Monitor Size 27"
Monitor Placement Stacked One Over the Other
