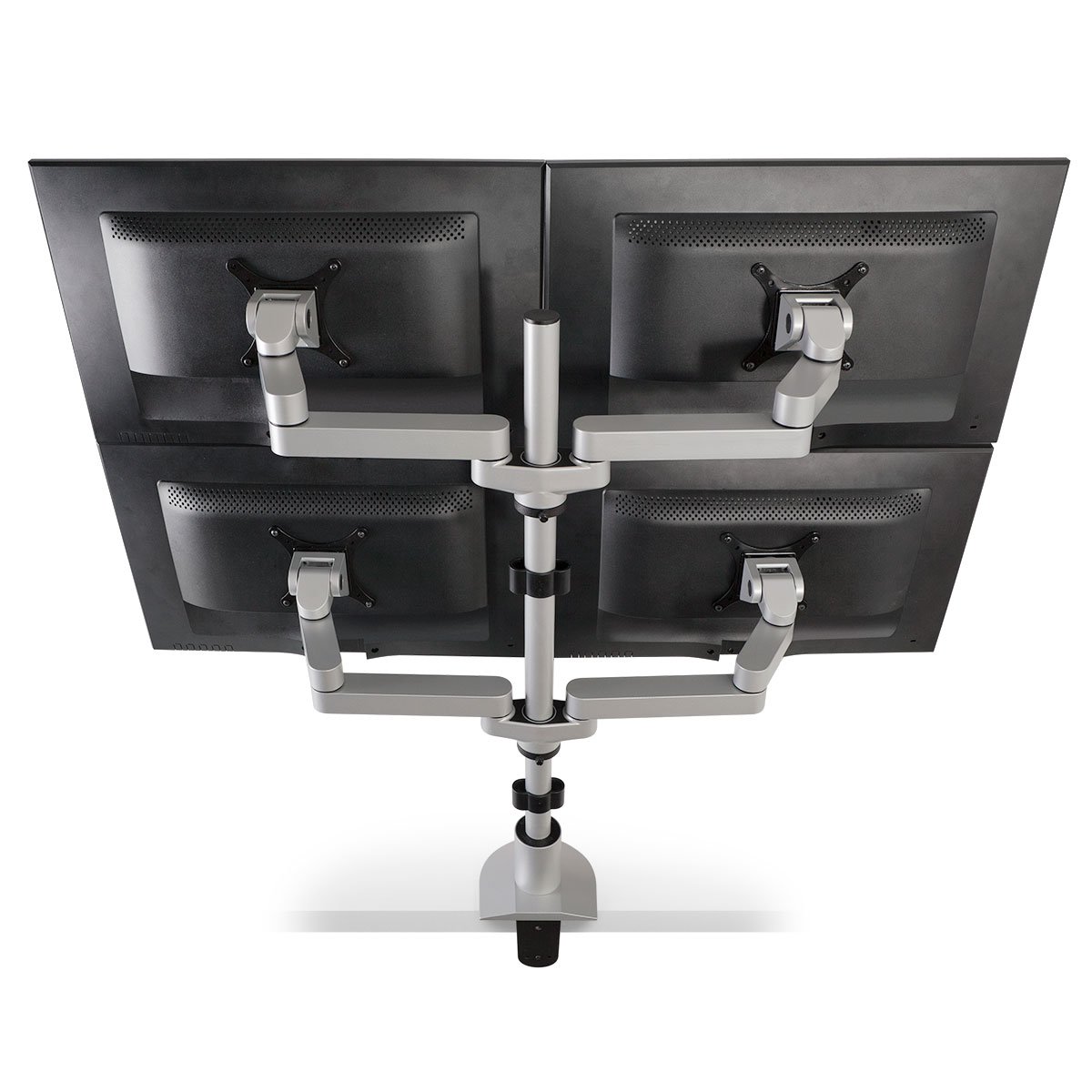

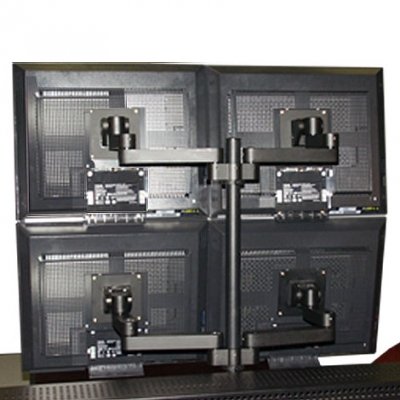

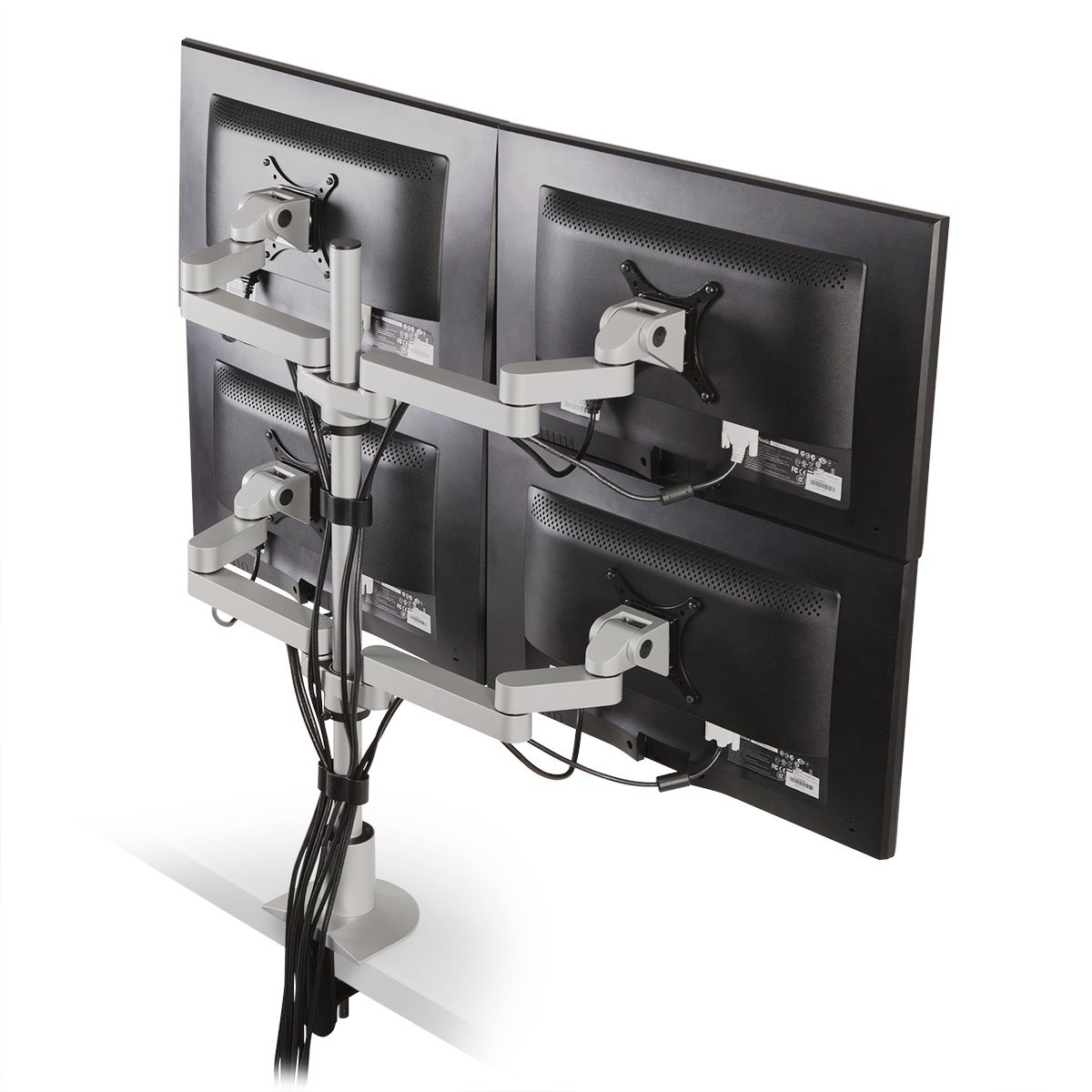

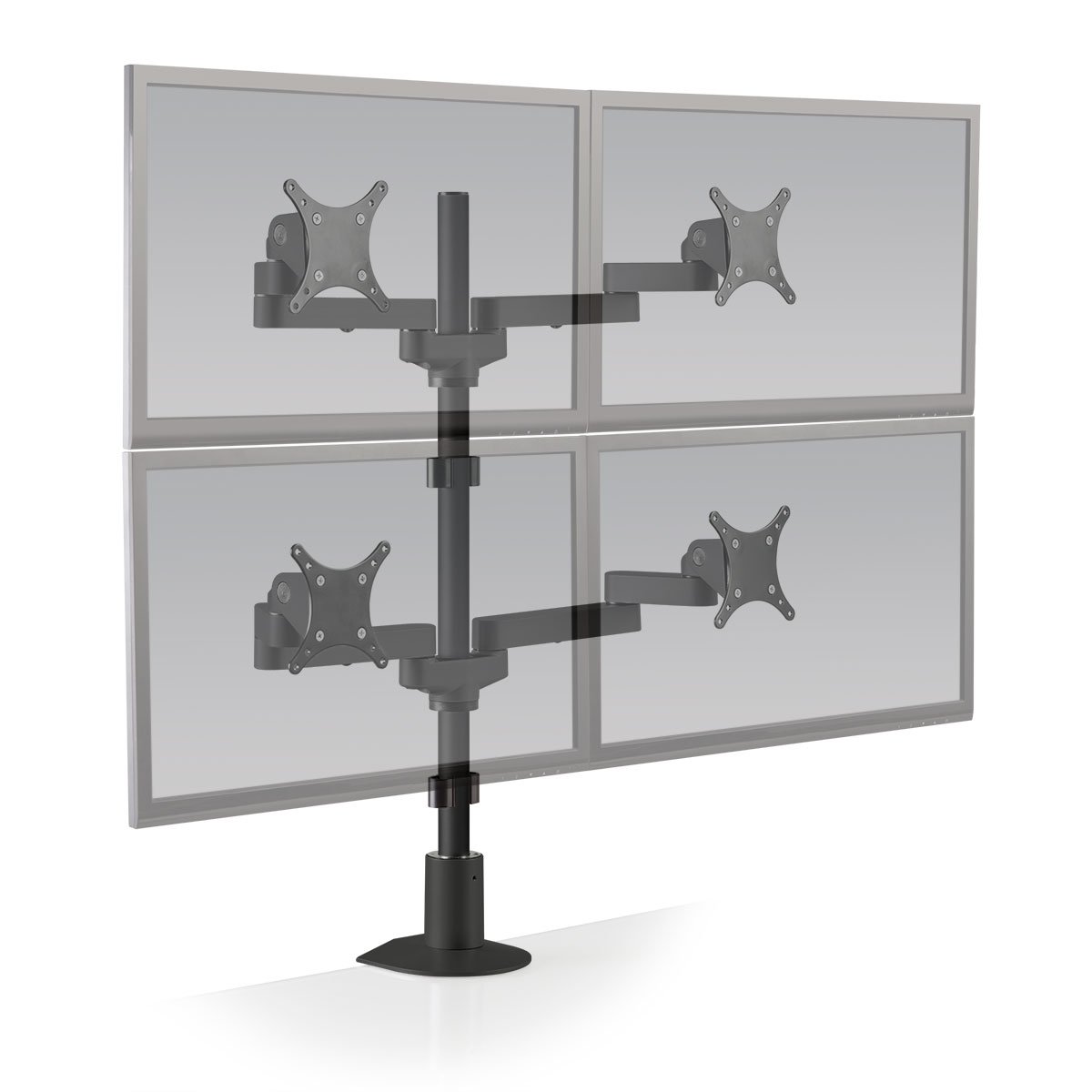

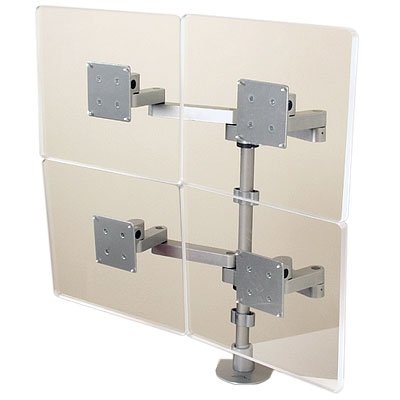

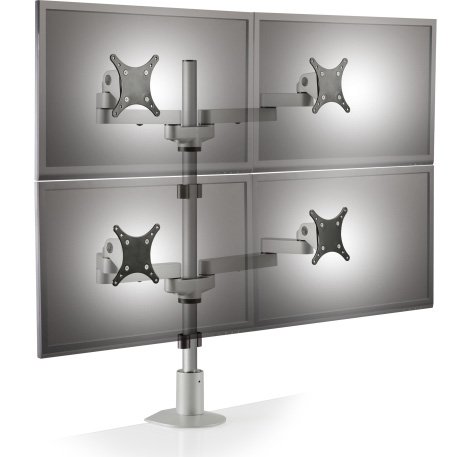

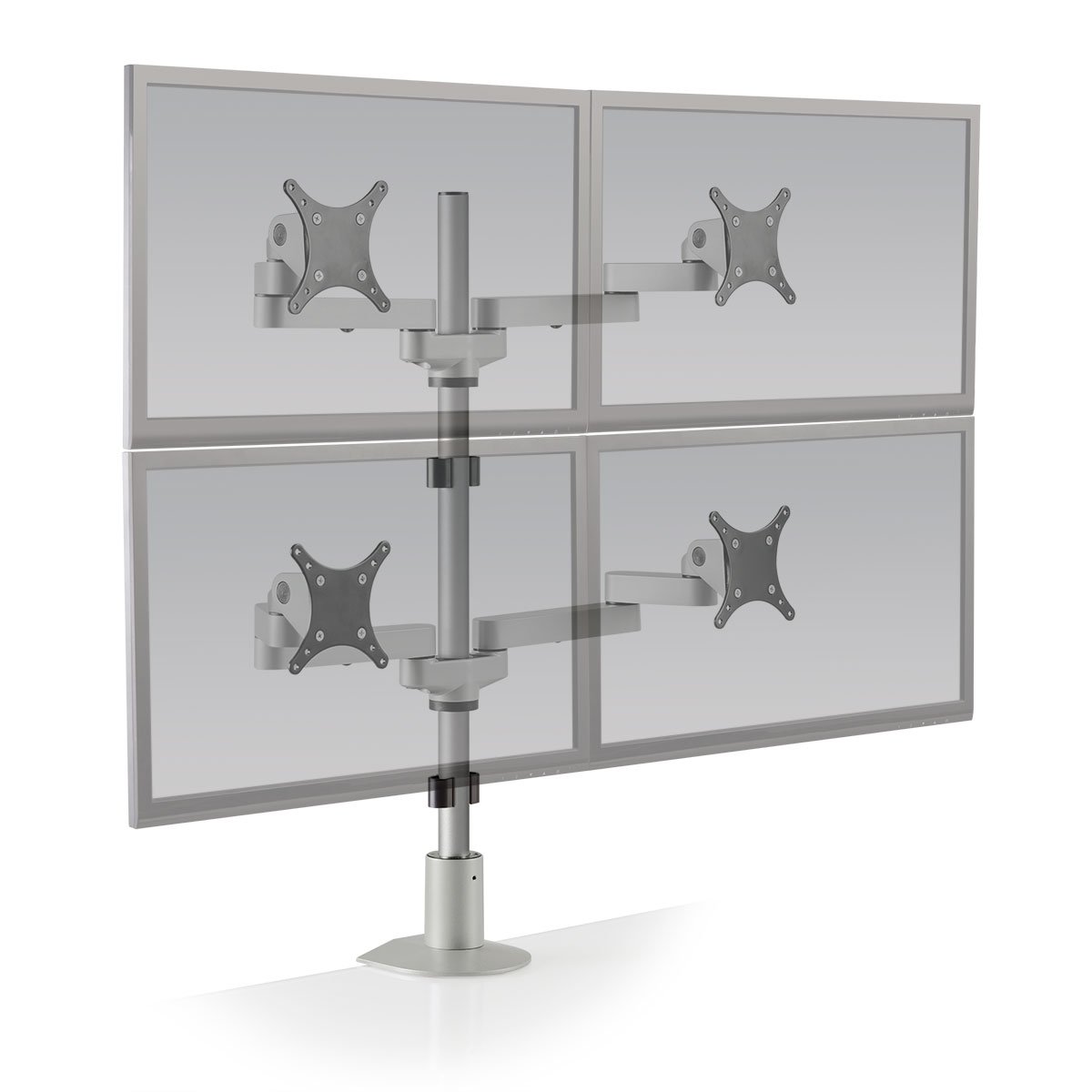

Innovative 9120-D-28 Two-Tier Quad Monitor Arm with 28" Pole

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 16483

Innovative FLEXmount


Innovative 9120-D-28 mounts 4 flat panels in minimal space with this feature-packed mount. Move each monitor independent of the others, in order to get ideal placement for your work surface. Height is adjustable along the included 28" pole and horizontal reach is 14".

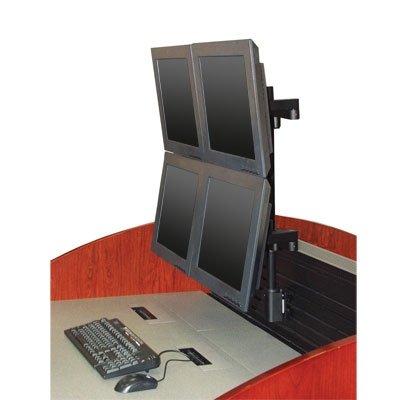

Save space and boost productivity with the 9120-D-28 quad monitor setup. Mount four flat panel monitors side by side and position each monitor independently, allowing for easy adjustment and placement.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

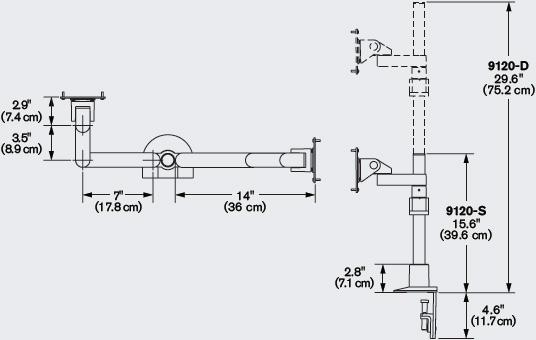

Technical Drawing

Technical Drawing for Innovative 9120-D-28 Two-Tier Quad Monitor Arm with 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 27"
Extension Range 14" (36 cm)
Pivot Landscape / Portrait
Rotation Three rotation joints
Pole Height 28" (71.12 cm)
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm adapter included
Weight Capacity Up to 20 lbs (9.0 kg) per monitor
Warranty 10 years

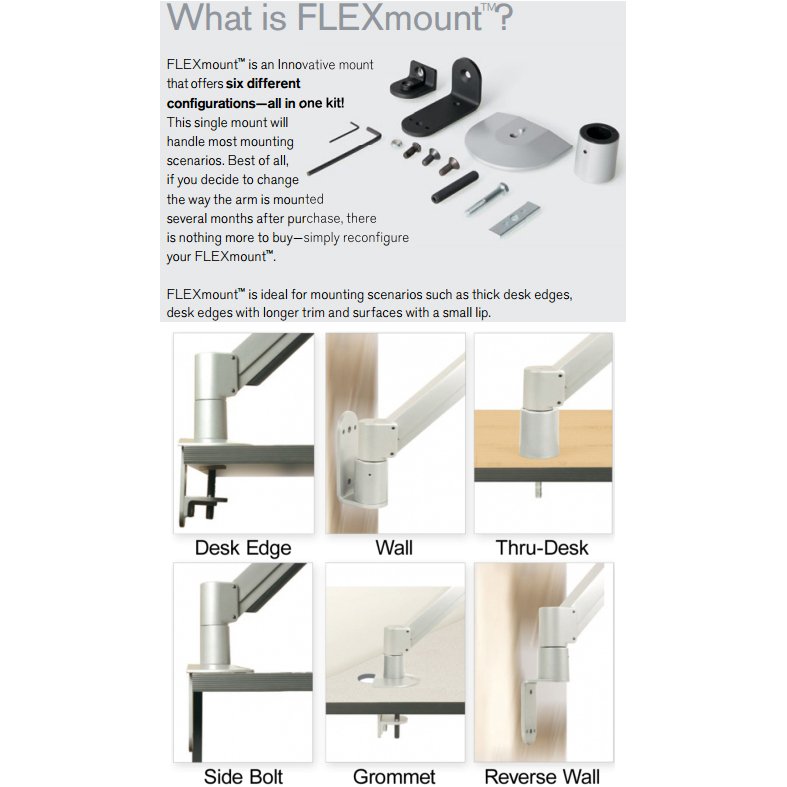

  • FLEXmount with six mounting options is available for quad flat panel monitor stand

  • Standard 28" pole included with quad monitor mount; call for custom size options

  • Monitors easily positioned for maximum comfort and productivity

  • Adjust each monitor independently

  • Quad flat panel mount features a space-saving design that allows approximately 3" of space behind the monitor

  • Friction control system provides smooth adjustment while adjusting the position of the arm

  • VESA-monitor compatible - 100mm VESA adapter included. Please call for non-VESA options

  • Quad monitor mount can be combined with all Innovative mount options (sold separately)

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

Model 9120-D-28
Manufacturer Innovative LCD Arms
Part Number 9120-D-28
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 4 Monitors
Color 104: Vista Black and 124: Silver
Horizontal Range 14" from back of pole
Pole Length 28" (71.12 cm)
Mounting Pattern VESA 100mm
Weight Capacity Up to 20 lbs per monitor
Number of Monitors 4 Monitors
Monitor Size Up to 27"
Extension 14" (36 cm)
Pivot Landscape / Portrait
Tilt 200 degree
Warranty 10 years
