Chief PNRIWUB Large In-Wall Swing Arm Mount - 22" Extension

Must order the PAC501 In-Wall Accessory.

Product ID 16521

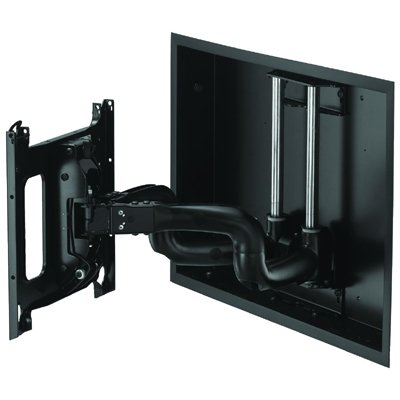

Chief PNRIWUB Universal Flat Panel In-Wall Swing Arm Wall Mount for 42" to 71" Displays

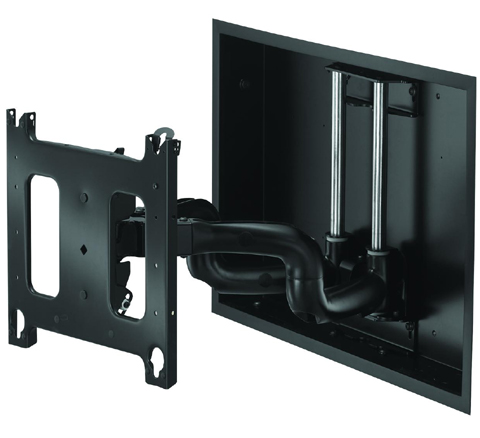

Chief PNRIW is a dual arm in-wall swing arm mount designed to create a low-profile installation.

  • Must order a PAC501 In-Wall Accessory (No separate interface bracket necessary for the PNRIWUB, this comes with the PSBUB)

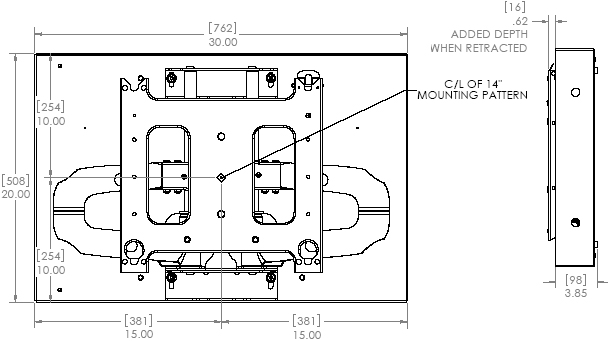

Technical Drawing

Technical Drawing for Chief PNRIWUB Flat Panel In-Wall Swing Arm Wall Mount for 42" to 71 " Displays




UL Listed



Maximum Extension

22" (558.8mm)

Minimum Depth

0.6" (15.2mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm


Must order PAC501B In-Wall Box separately


Landscape, Portrait

Overall Dimensions (H x W x D)

20.0" x 30.0" x 4.5" (508 x 762 x 114mm)

Pivot (numerical value)

+/- 76.5° (depending on screen width)

Post-Installation Leveling (Roll)


Shipping Weight

61.70 lbs

Solution Type



+ 2°, - 15°

Typical Screen Sizes

42 - 71"

Wall Stud Compatibility (inches)


Weight Capacity

200 lbs (90.7kg)



  • Ships fully assembled to save on installation time
  • Easily installs into PAC501 to create an ultra low profile installation

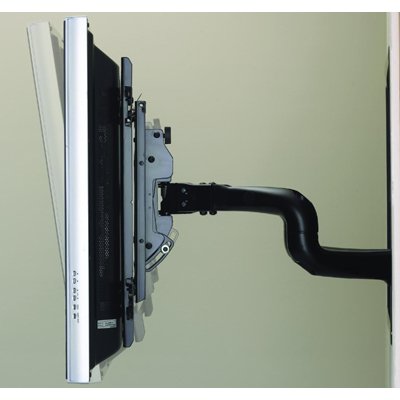

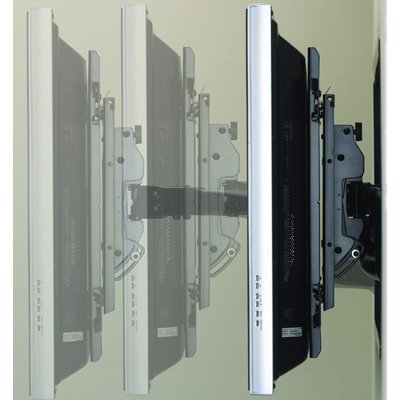

  • Extends over 22" (569 mm) for viewing from any angle
  • Must order PAC501 In-Wall Accessory separately
Manufacturer Chief Mounts
Part Number PNRIWUB
UPC 841872109237
Mounting Options In-Wall
Color Black
Maximum Extension 22" (558.8mm)
Minimum Depth 0.6" (15.2mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 20.0" x 30.0" x 4.5" (508 x 762 x 114mm)
Pivot +/- 76.5° (depending on screen width)
Shipping Weight 61.70 lbs
Tilt + 2, - 15 degree
Monitor Size 42 - 71"
Wall Stud 16"
Weight Capacity 200 lbs (90.7kg)
