Chief PWRIWUB Large In-Wall Swing Arm Mount - 22" Extension

Must order a PAC501B In-Wall Accessory.

Product ID 16522


  • In-wall swing arm for 37 - 55" screens
  • Maximum extension: 22"
  • Weight capacity: 125 lbs
  • Requires PAC501B in-wall accessory under option 1
  • Chief PWRIWUB comes with PSBUB, the universal interface bracket. No need to order a separate bracket for this arm

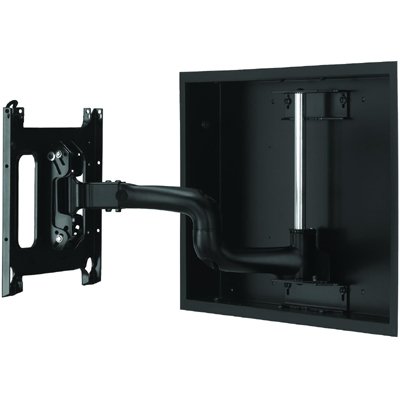

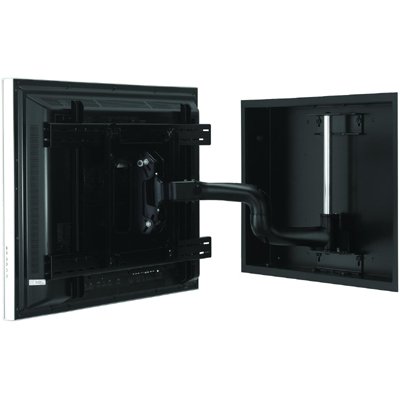

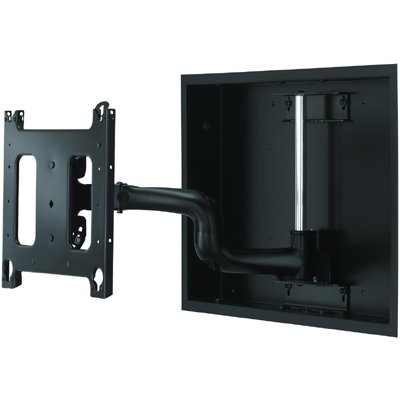

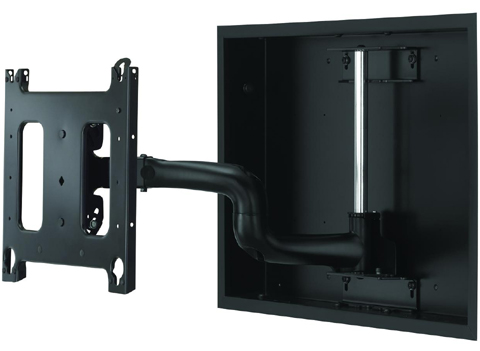

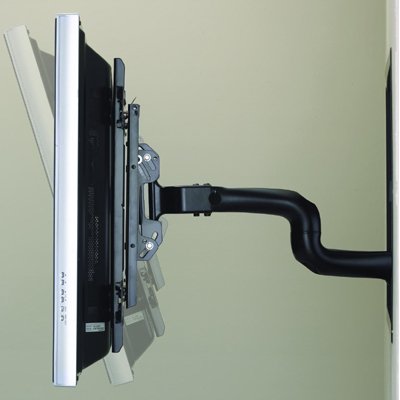

Chief PWRIWUB Large Flat Panel In-Wall Swing Arm Wall Mount for 37" to 55" Displays


Chief PWRIWUB is an in-wall swing arm designed to create a low-profile installation.

  • Must order a PAC501B In-Wall Accessory (No separate interface bracket necessary for the PWRIWUB, this comes with the PSBUB)

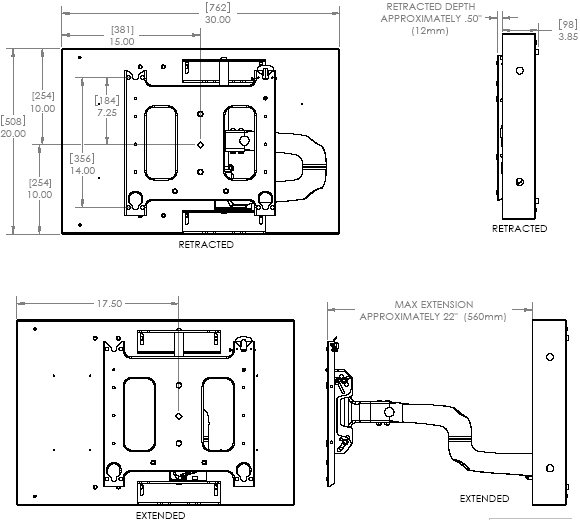

Technical Drawing

Technical Drawing for Chief PWRIWUB Large Flat Panel In-Wall Swing Arm Wall Mount for 37" to 55 " Displays





Maximum Extension

22" (558.8mm)

Minimum Depth

0.5" (12.7mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm


Requires PAC501B. PACHFK1 available. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")


Landscape, Portrait

Overall Dimensions (H x W x D)

20.0" x 30.0" x 4.5" (508 x 762 x 114mm)

Post-Installation Leveling (Roll)


Shipping Weight

45.80 lbs

Solution Type



+ 2°, - 15°

Typical Screen Sizes

37 - 55"

Wall Stud Compatibility (inches)


Weight Capacity

125 lbs (56.7kg)



  • Ships fully assembled to save on installation time
  • Must order PAC501B In-Wall Accessory

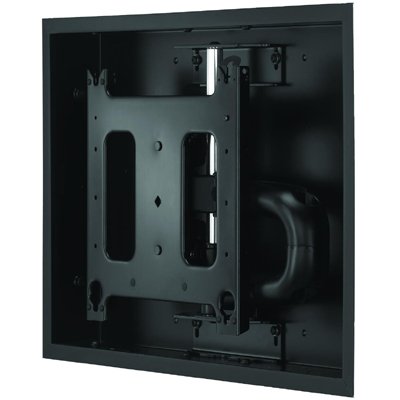

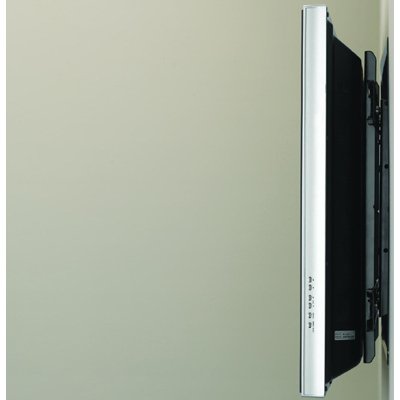

  • Easily installs into PAC501B to create an ultra low profile installation

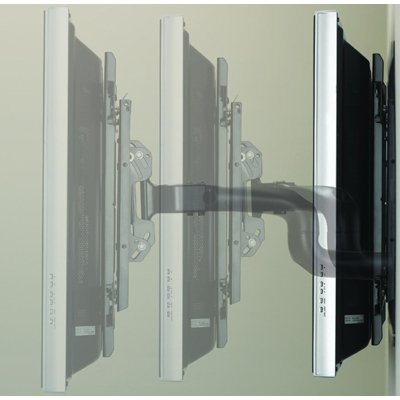

  • Extends over 22" (569 mm) for viewing from any angle
  • Must order interface bracket and PAC501B In-Wall Accessory separately
Manufacturer Chief Mounts
Part Number PWRIWUB
UPC 841872109244
Mounting Options In-Wall
Color Black
Maximum Extension 22" (558.8mm)
Minimum Depth 0.5" (12.7mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 20.0" x 30.0" x 4.5" (508 x 762 x 114mm)
Shipping Weight 45.80 lbs
Tilt + 2, - 15 degree
Monitor Size 37 - 55"
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
