$355.00

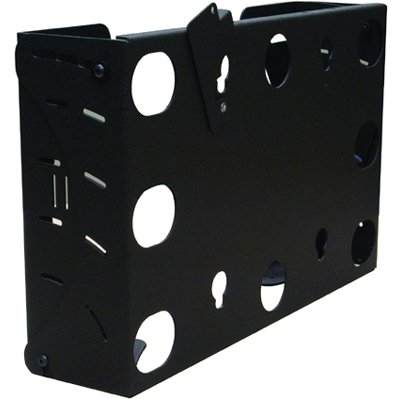

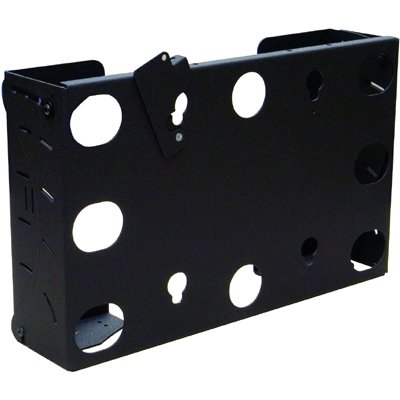

Chief MWCU Medium Tilt Wall Mount with CPU Storage (26-55")

Tilt Wall Mount with CPU Storage for 26" to 55" Displays. An ideal solution for digital signage applications.

Product ID 16527
Chief MWCU Medium Tilt Wall Mount with CPU Storage (26-55")
Chief MWCU Medium Tilt Wall Mount with CPU Storage (26-55")
Chief MWCU Medium Tilt Wall Mount with CPU Storage (26-55")
Chief MWCU Medium Tilt Wall Mount with CPU Storage (26-55")

Description

Chief MWCU provides an all-in-one tilt wall mount solution for both a medium-sized flat panel display and CPU or receiver.

  • An ideal solution for digital signage applications.

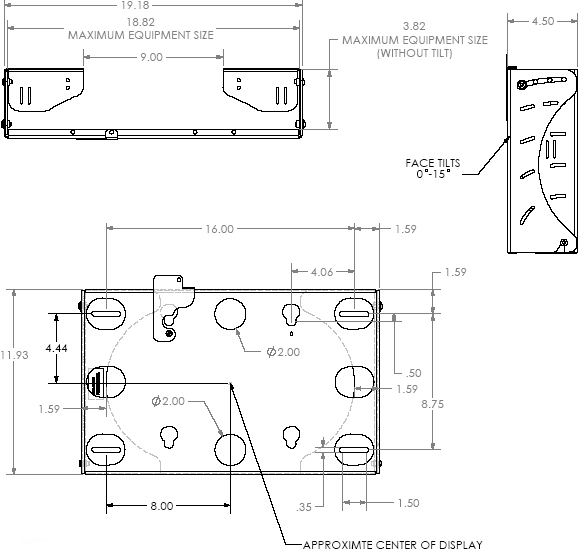

Technical Drawing

Technical Drawing for Chief MWCU Tilt Wall Mount with CPU Storage for 26" to 55" Flat Panel Displays



Specifications

Color

Black

Lateral Shift

1.5" (38.1mm)

Max Equip Size (H X W X D)

14" x 18.82" x 3.82" (356 x 478 x 97 mm)

Maximum Screen Thickness

6"

Minimum Depth

4.5" (114.3mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 709 x 431mm

Notes

TAA Compliant

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

11.9" x 19.2" x 4.5" (303 x 487 x 114mm)

Shipping Weight

26.00 lbs

Solution Type

Universal

Tilt

+ 0°, - 15°

Typical Screen Sizes

26 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

100 lbs (45.4kg)



Features

  • Complete solution designed to easily integrate a media player into a flat panel installation
  • Provides lockable tilt at 0, 5, 10 and 15º
  • Integrated lateral shift up .75" left or right of 16" center stud system
  • 200 mm Q-Latch installation
  • Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • TAA Compliant
Model MWCU
Manufacturer Chief Mounts
Part Number MWCU
UPC 841872101620
Color Black
Lateral Shift 1.5" (38.1mm)
Max Equipment Size (H X W X D) 14" x 18.82" x 3.82" (356 x 478 x 97 mm)
Maximum Screen Thickness 6"
Minimum Depth 4.5" (114.3mm)
Mounting Pattern 100 x 100mm - 709 x 431mm
Overall Dimensions 11.9" x 19.2" x 4.5" (303 x 487 x 114mm)
Shipping Weight 26.00 lbs
Tilt + 0, - 15 degree
Monitor Size 26 - 55"
Wall Stud 16"
Weight Capacity 100 lbs (45.4kg)
Mounting Options Wall
