Ergotron 97-586 TeachWell MDW LCD Kit and CPU Holder

This product has been discontinued.

Description

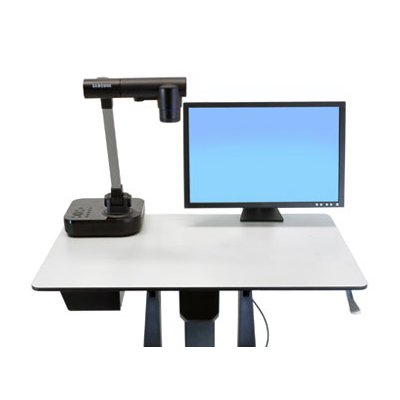

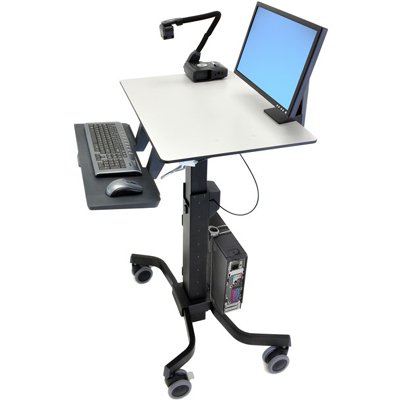

Ergotron 97-585 adapts your TeachWell Mobile Digital Workspace to hold an LCD monitor with CPU or an all-in-one (AIO) system.

Technical Drawing for Ergotron TeachWell MDW LCD Kit

Part Number:	97-586
Description:	LCD Kit for TeachWell MDW Mobile Digital Workspace (graphite grey)

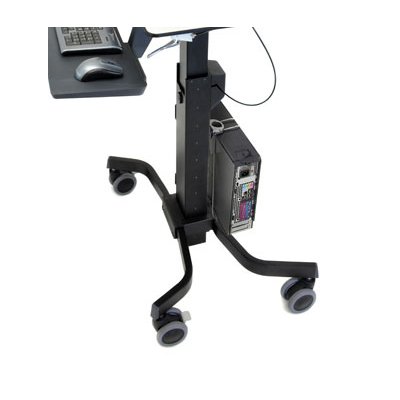

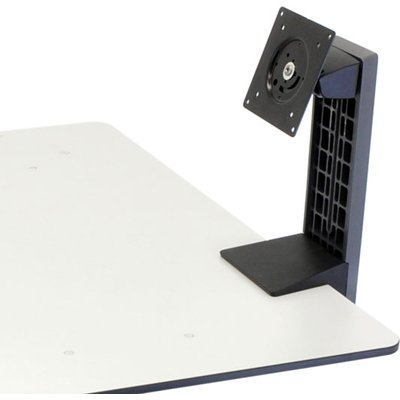

Includes:	LCD riser and clamp Universal CPU holder Mounting hardware
Weight Capacity:	Holds an LCD monitor or AIO ≤ 14 lbs (6.4 kg). The addition of this Kit reduces the cart’s head-assembly capacity by 4 lbs (1.8 kg). Maximum CPU weight = 16 lbs (7.25 kg)
Portrait Mode:	Portrait mode not compatible with displays ≥ 19"
Mounting Standards:	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimensions:	Maximum CPU Dimensions: 13.25"H x 8.5"D (35.6 x 21.7 cm). Minimum CPU Dimensions: 9.4"H x 2.6"D (23.9 x 6.6 cm).
CPU Holder:	CPU holder cannot be used when MDW Storage Bin accessory (97-608) is installed on the cart’s base.
Shipping Dimensions:	12.6" x 11.0" x 6.7" (32 x 28 x 17 cm)
Warranty:	Five (5) years

No FAQs available for this product. Have a question? Ask us!

Color Graphite grey
Monitor Size Up to 22". Portrait mode not compatible with displays ≥ 19”.
Weight Capacity Holds an LCD monitor or AIO ≤ 14 lbs (6.4 kg). The addition of this Kit reduces the cart’s head-assembly capacity by 4 lbs (1.8 kg). Maximum CPU weight = 16 lbs (7.25 kg)
Tilt 15 degree
Rotation (P/L) 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension Maximum CPU Dimensions: 13.25"H x 8.5"D (35.6 x 21.7 cm). Minimum CPU Dimensions: 9.4"H x 2.6"D (23.9 x 6.6 cm).
Shipping Dimensions 12.6" x 11.0" x 6.7" (32 x 28 x 17 cm)
Warranty Five (5) years
