Chief PWRIW2000B Large In-Wall Swing Arm Mount - 22" Extension

Product ID 16706


  • In-wall swing arm for 37 - 55" screens
  • Maximum extension: 22"
  • Weight capacity: 125 lbs
  • Must order PAC501B in-wall accessory under option 2
  • Based on the make and model of the display, need to specify which PSB bracket is needed under option 1. Please check with our customer service at 888-456-3746 for bracket compatibility

Chief PWRIW2000 Large In-Wall Swing Arm Wall Mount Black

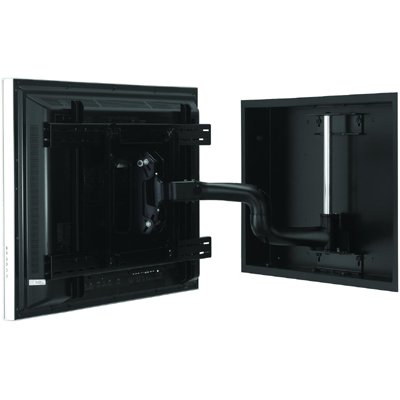

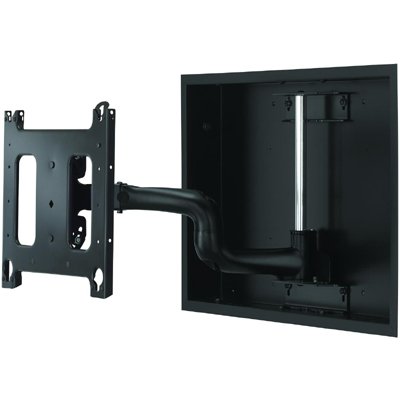

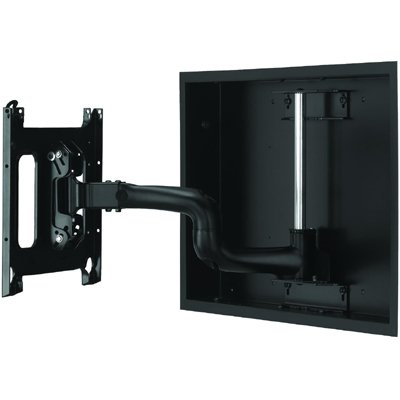

Chief PWRIW2000B is an in-wall swing arm designed to create a low-profile installation.

  • Must order a PAC501B In-Wall Accessory AND a PSB bracket (See the mountfinder to get the model specific PSB bracket you will need)


Technical Drawing

Technical Drawing of Chief PWRIW-2000 Large Low Profile In-Wall Swing Arm Mount



Technical Drawing of Chief PSB2243 Large (37-65") Interface Bracket





Maximum Extension

22" (558.8mm)

Minimum Depth

0.5" (12.7mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm


Requires PAC501B. PACHFK1 available. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")


Landscape, Portrait

Overall Dimensions (H x W x D)

20.0" x 30.0" x 4.5" (508 x 762 x 114mm)

Post-Installation Leveling (Roll)


Shipping Weight

34.90 lbs


+ 2° , - 15°

Typical Screen Sizes

37 - 55"

Wall Stud Compatibility (inches)


Weight Capacity

125 lbs (56.7kg)



  • Ships fully assembled to save on installation time
  • Must order PAC501B In-Wall Accessory

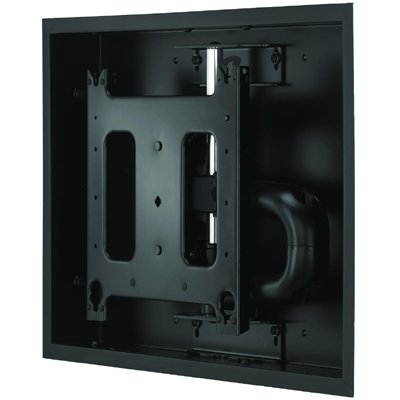

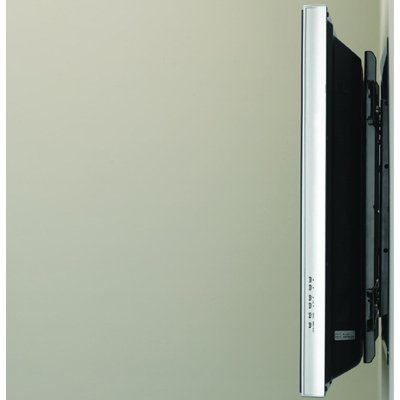

  • Easily installs into PAC501B to create an ultra low profile installation

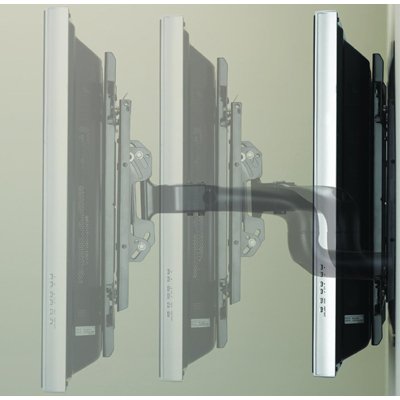

  • Extends over 22" (569 mm) for viewing from any angle
  • NOTE: Must order interface bracket and PAC501B In-Wall Accessory separately
Model PWRIW2000B
Manufacturer Chief Mounts
Part Number PWRIW2000B
UPC 841872109206
Color Black
Maximum Extension 22" (558.8mm)
Minimum Depth 0.5" (12.7mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 20.0" x 30.0" x 4.5" (508 x 762 x 114mm)

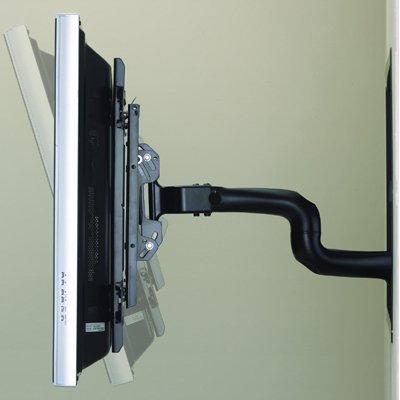

Tilt + 2 degree , - 15 degree
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
Mounting Options In-Wall
Monitor Size 37 - 55"
Shipping Weight 34.90 lbs
