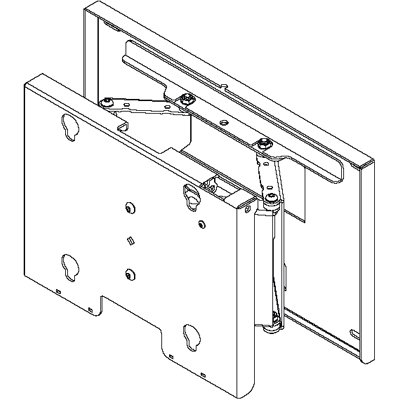

Chief MPT6000B Medium Swing Arm Wall Mount (without interface)

Product ID 16715
Chief MPT6000B Medium Swing Arm Wall Mount (without interface)
Chief MPT6000B Medium Swing Arm Wall Mount (without interface)


Get ultra smooth extension for TVs, displays and monitors while still getting a very low profile in home position.

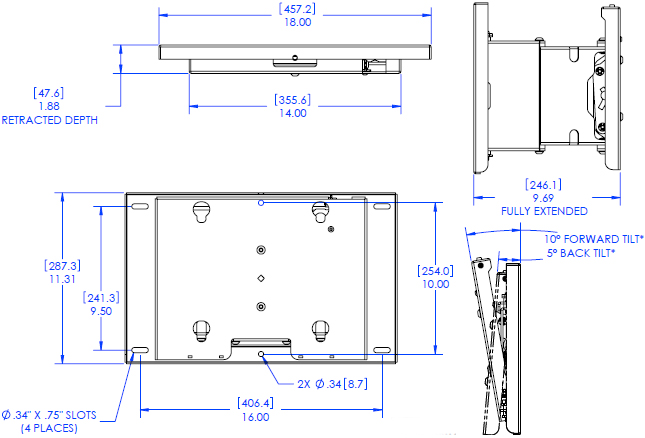

Technical Drawing

Technical Drawing of Chief MPT 6000 Medium Swing Arm Wall Mount





Lateral Shift

0.75" (19.1mm)

Maximum Extension

9.69" (246.1mm)

Minimum Depth

1.88" (47.8mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 709 x 431mm


Depth and Extension do not include interface bracket (adds 0.5 - 1.5")


Landscape, Portrait

Overall Dimensions (H x W x D)

11.3" x 18.0" x 1.9" (287 x 457 x 48mm)

Shipping Weight

23.70 lbs


+ 5° , - 10°

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)


Weight Capacity

125 lbs (56.7kg)



  • Up to 9.69" (246.1 mm) extension
  • Ultra low-profile 1.88" (47.6 mm) deep in home position
  • 10 degrees forward tilt and 5 degrees backward tilt
  • 45 degrees of swivel in either direction (dependent on screen size)
  • Installs on 16" center studs, single or dual wood stud installation/dual steel stud installation
  • Simple cable management
  • Integrated lateral shift for repositioning the mount right or left after installation for amazing positioning flexibility
  • Display can be installation in portrait or landscape position. PAC 400 or MAC400 accessory can be used to rotate without removing the screen
Model MPT6000B
Manufacturer Chief Mounts
Part Number MPT6000B
UPC 841872145204
Color Black
Lateral Shift 0.75" (19.1mm)
Maximum Extension 9.69" (246.1mm)
Minimum Depth 1.88" (47.8mm)
Mounting Pattern 100 x 100mm - 709 x 431mm
Overall Dimensions 11.3" x 18.0" x 1.9" (287 x 457 x 48mm)
Tilt + 5 degree, - 10 degree
Screen Size 30 - 55 in
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
Shipping Weight 23.70 lbs
Mounting Options Wall
