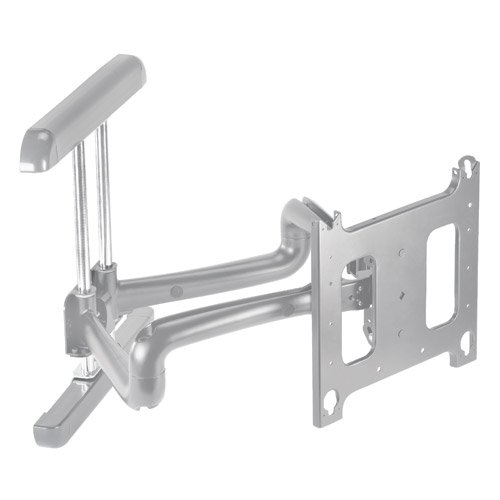

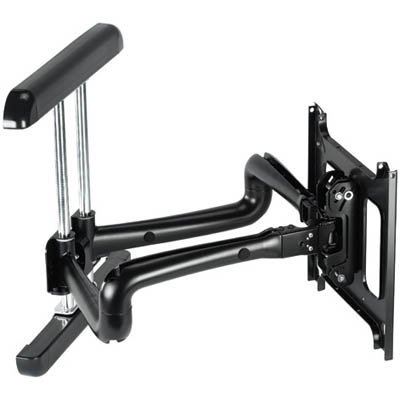

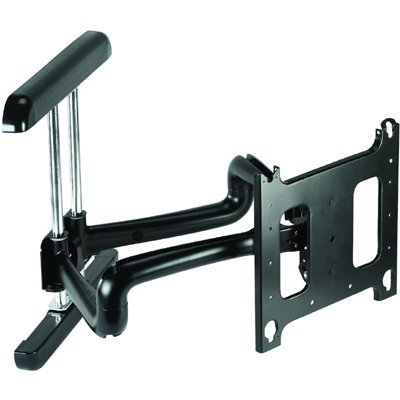

Chief PDR2000 Large Swing Arm Wall Mount (without interface)

Product ID 16775
Chief PDR2000 Large Swing Arm Wall Mount (without interface)
Side view
Inused image
Inused image
Chief PDR2000 Large Swing Arm Wall Mount (without interface)
Side view
Inused image
Inused image


Chief PDR2000 swing arm mount allows for perfect flat panel display placement and ensures ideal viewing from any angle.

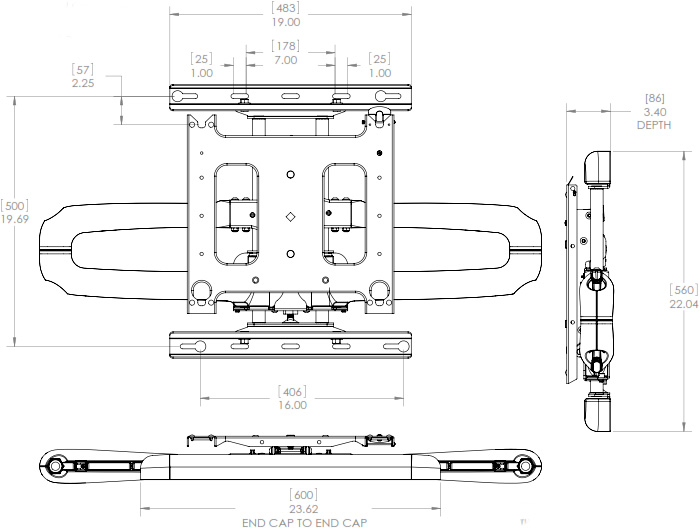

Technical Drawing

Technical Drawing of Chief PDR-2000 Large Swing Arm Wall Mount




UL Listed


Black, Silver

Lateral Shift

9" (229 mm)

Manual Height Adjustment


Maximum Extension

37" (939.8mm)

Minimum Depth

3.4" (86.4mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm


Depth and Extension do not include interface bracket (adds 0.5 - 1.5")


Landscape, Portrait

Overall Dimensions (H x W x D)

22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)

Post-Installation Leveling (Roll)


Shipping Weight

63.00 lbs

Solution Type



+ 5°, - 16°

Typical Screen Sizes

42 - 71"

Wall Stud Compatibility (inches)


Weight Capacity

200 lbs (90.7kg)



  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Frequently Asked Questions

q What is the difference between PNR and PDR?

The PNR extends up to 24.88", while the PDR extends almost 37" from the wall.

q How do I know if my screen is too small to use with PDR?

The PDR is designed for 42" screens and larger, but to ensure the mount will be completely hidden your screen width should be greater than 40" and screen height should be greater than 25".

q Is the PDR available as a universal solution?

Yes. Simply order a PDRU to receive a universal interface bracket with the unit. The PDR can also be ordered as a custom mount. See ordering steps.

q Can you please explain the difference between the Chief PDR2000 and the Chief PDRUS mounts? I currently have the TS525 and need one with a longer extension length for my Sony 65" TV (XBR65X930D). It will have a soundbar mounted below the TV, as well (the Leon Horizon HzUT or the Leon Horizon Hz44). I can't tell the difference between the PDR2000 and PDRUS models.

The PDR2000 does not come with an interface bracket, while the PDRUB/PDRUS does. By interface bracket, I am referring to the bracket that attaches the mount to the monitor. Both these mounts have 37" horizontal extension as opposed to the 25" for the TS525 and they're both are also compatible with displays 42-71" in size.

Model PDR2000
Manufacturer Chief Mounts
Part Number PDR2000
UPC 841872045368
Color Black, Silver
Lateral Shift 9" (228.6mm)
Manual Height Adjustment 1"
Maximum Extension 37" (939.8mm)
Minimum Depth 3.4" (86.4mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)
Tilt + 5 degree, - 15 degree
Screen Size 42 - 71 in
Wall Stud 16"
Weight Capacity 200 lbs (90.7kg)
Shipping Weight 63.00 lbs
Mounting Options Wall

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
