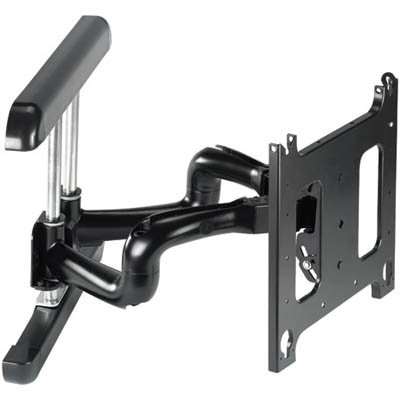

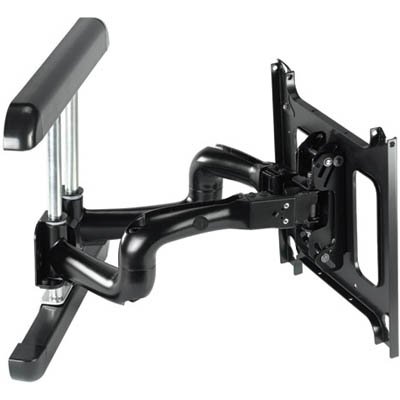

Chief PNR2000 Large Swing Arm Wall Mount (without interface)
Description
View large flat panel displays from any angle.

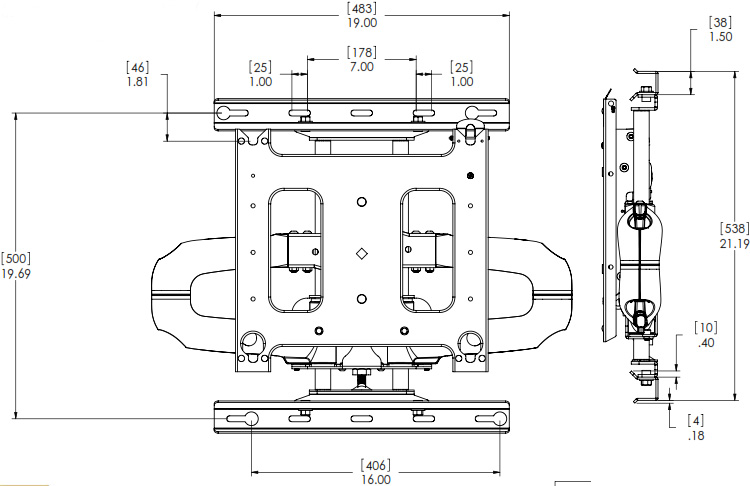

Technical Drawing
Specifications
|
Certifications |
UL Listed |
|
Color |
Black, Silver |
|
Lateral Shift |
9" (229 mm) |
|
Manual Height Adjustment |
1" |
|
Maximum Extension |
25" (635 mm), does not include interface bracket (adds 0.5 - 1.5") |
|
Minimum Depth |
3.25" (82.6mm), does not include interface bracket (adds 0.5 - 1.5") |
|
Mounting Pattern Compatibility (Universal Versions) |
Min 200 x 200mm - Max 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
21.2" x 27.1" x 3.3" (538 x 687 x 84mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
52.00 lbs |
|
Solution Type |
Custom |
|
Tilt |
+ 5°, - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
- Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Easy connect/disconnect without tools
- Extends up to 25 (635 mm) for viewing from any angle
- CableTrac System provides channeled cable management for easy cable routing
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Product Options/Accessories
Frequently Asked Questions
The PNR extends up to 25, while the PDR extends almost 37 from the wall.
The PNR is designed for 42 screens and larger, but to ensure the mount will be completely hidden your screen width should be greater than 27.25 and screen height should be greater than 19.5.
Yes. Simply order a PNRU to receive a universal interface bracket with the unit. The PNR can also be ordered as a custom mount. See ordering steps.
| Model | PNR2000 |
| Manufacturer | Chief Mounts |
| Part Number | PNR2000 |
| UPC | 841872046396 |
| Color | Black, Silver |
| Lateral Shift | 9" (228.6mm) |
| Manual Height Adjustment | 1" |
| Maximum Extension | 25" (635.mm) |
| Minimum Depth | 3.25" (82.6mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 21.2" x 27.1" x 3.3" (538 x 687 x 84mm) |
| Tilt | + 5, - 15 degree |
| Screen Size | 42 - 71 in |
| Wall Stud | 16" |
| Weight Capacity | 200 lbs (90.7kg) |
| Shipping Weight | 52.00 lbs |
| Mounting Options | Wall |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
