$606.00

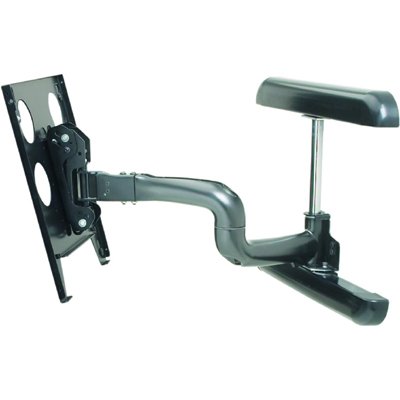

Chief PWR2000 Large Swing Arm Wall Mount (without interface)

Product ID 16786
Chief PWR2000 Large Swing Arm Wall Mount (without interface)
Chief PWR2000 Large Swing Arm Wall Mount (without interface)

Description

Chief PWR2000 allows for viewing flexibility when installing a flat panel display. A great display mount for corporate and home entertainment applications. Standard solutions are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.

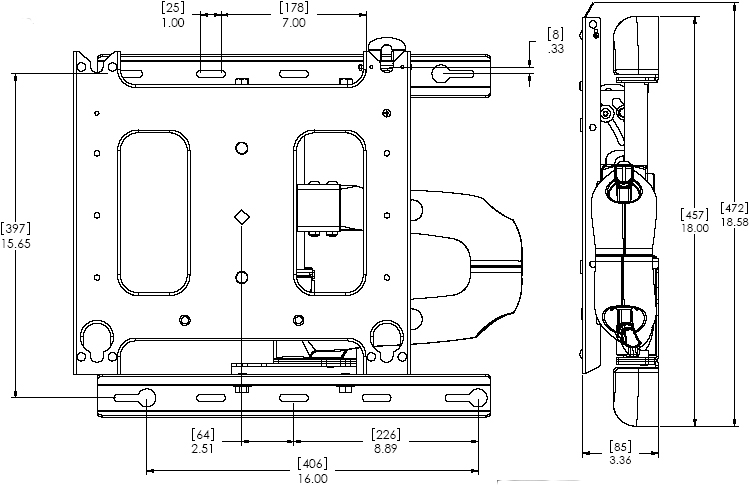

Technical Drawing

Technical Drawing of Chief PWR-2000 Large Swing Arm Wall Mount



Specifications

Color

Black

Lateral Shift

12" (304.8mm)

Maximum Extension

24.88" (632.mm)

Minimum Depth

3.38" (85.9mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

18.0" x 23.6" x 3.4" (457 x 600 x 86mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

37.00 lbs

Solution Type

Custom

Tilt

+ 5°, - 15°

Typical Screen Sizes

37 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

125 lbs (56.7kg)



Features

  • Extends 24.88" from wall and remains low profile in the home position
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Centris Technology provides fingertip tilt adjustments
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall
  • CableTrac System provides a fast and effective way to route cables
  • UL listed for proven strength
  • Swivel up to 90° left or right (depending upon screen size)
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Model PWR2000
Manufacturer Chief Mounts
Part Number PWR2000
UPC 841872046419
Color Black
Lateral Shift 12" (304.8mm)
Maximum Extension 24.88" (632.mm)
Minimum Depth 3.38" (85.9mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
Tilt + 5 degree, - 15 degree
Screen Size 37 - 55 in
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
Shipping Weight 37.00 lbs
Mounting Options Wall
