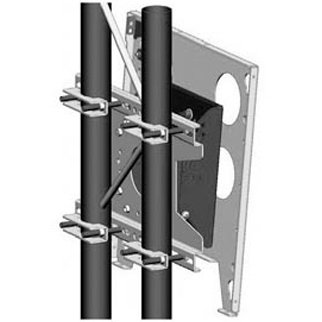

Chief TPP2000B Large Tilt Truss Mount (without interface)
Clamps TPK for different size poles and truss work are required and must be ordered separately.
Description
Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.
Clamps for different size poles and truss work are required and must be ordered separately

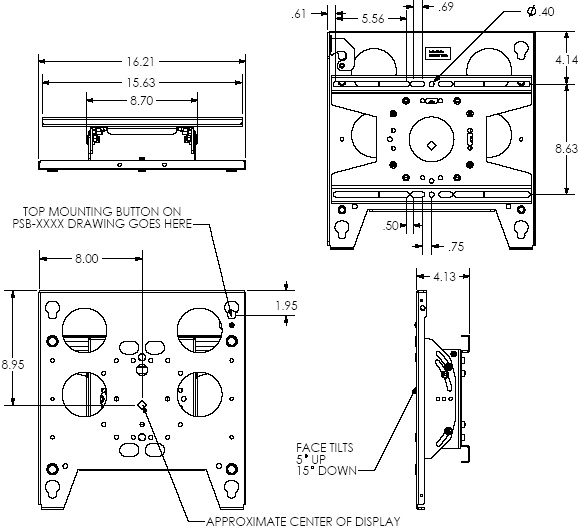

Technical Drawing
Specifications
|
Color |
Black |
|
Minimum Depth |
4.13" (104.9mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
16.2" x 17.1" x 4.1" (412 x 433 x 105mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
20.00 lbs |
|
Typical Screen Sizes |
42 - 71" |
|
Weight Capacity |
150 lbs (68.kg) |
Features
- 3 Flat Panel Mount Options TPS: Truss/Pole Fixed Mount ; TPM: Pole Tilt-Adjustable Mount ; and TPP: Truss Pitch-Adjustable Mount
- 3 Pitch Adjustment Options on TPM and TPP
- Install on vertical or horizontal truss
- Attach displays in portrait or landscape orientation
- TPS/TPP span most truss systems up to 14" (OD)
- Truss/Pole clamps fit a wide variety of truss and pole dimensions. (see chart)
- Finishing Cover accessories enhance aesthetics and cover hardware for added security
- Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
- Integrated security allows display to be locked to mount by adding a padlock
- Compatible with TPK clamp accessories. See Accessory list below
- TPPU universal version available which includes universal PSBUB interface. TPP2000B is available but must order TPP2000B and PSBXXXX custom or universal interface separately
Product Options/Accessories
Frequently Asked Questions
No, the TPP Mount ships as a complete assembly that includes the interface bracket. Determine which model will accommodate your display by looking up the manufacturer and model number on the cross-reference chart.
| Model | TPP2000B |
| Manufacturer | Chief Mounts |
| Part Number | TPP2000B |
| UPC | 841872044941 |
| Color | Black |
| Minimum Depth | 4.13" (104.9mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 16.2" x 17.1" x 4.1" (412 x 433 x 105mm) |
| Screen Size | 42 - 71 in |
| Weight Capacity | 150 lbs (68.kg) |
| Shipping Weight | 20.00 lbs |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
