Chief MIWRFVB Medium In-Wall Swing Arm Mount - 10" Extension

Product ID 16808

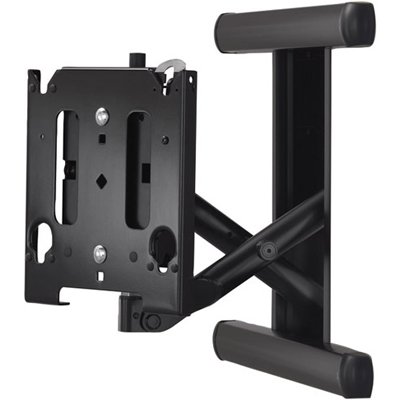

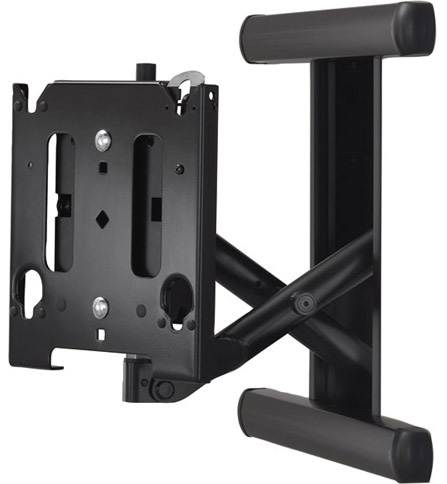

Chief MIWRFVB Medium (30"-55") Low Profile In-Wall Swing Arm Mount Black


Chief MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.

  • Get perfect TV centering without cutting studs

  • Ultra low-profile mounting solution


Technical Drawing

Technical Drawing of Chief MIWRFVB Medium Low Profile In-Wall Swing Arm Mount



Technical Drawing for Chief MSBVB or MSBVS Universal Flat Panel Interface Bracket




Lateral Shift

5" (127 mm)

Manual Height Adjustment


Maximum Extension

9.9" (251.5mm)

Minimum Depth

1.7" (43.2mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm


Depth and Extension do not include interface bracket (adds 0.5 - 1.5")


Landscape, Portrait

Overall Dimensions (H x W x D)

17.2" x 20.3" x 5.6" (437 x 517 x 142mm)

Pivot (numerical value)

+/- 37.5° (depending on screen width)

Post-Installation Leveling (Roll)


Shipping Weight

46.10 lbs

Solution Type



+ 2°, - 15°

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)


Weight Capacity

125 lbs (56.7kg)



  • Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
  • Low-profile design hides the mount behind the display
  • Centris Technology provides smooth, fingertip tilt
  • Provides post-installation height adjustment
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management
  • Ships as complete in-wall swing arm - zero assembly required
Manufacturer Chief Mounts
Part Number MIWRFVB
UPC 841872110653
Color Black
Lateral Shift 5" (127.mm)
Manual Height Adjustment 1"
Maximum Extension 9.9" (251.5mm)
Minimum Depth 1.7" (43.2mm)
Mounting Pattern 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
Overall Dimensions 17.2" x 20.3" x 5.6" (437 x 517 x 142mm)
Tilt + 2, - 15 degree
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)
Mounting Options In-Wall
Pivot +/- 37.5° (depending on screen width)
Monitor Size 30 - 55"
Shipping Weight 46.10 lbs
