Chief MSS6000 Medium Swivel Table Stand (without interface)
Description

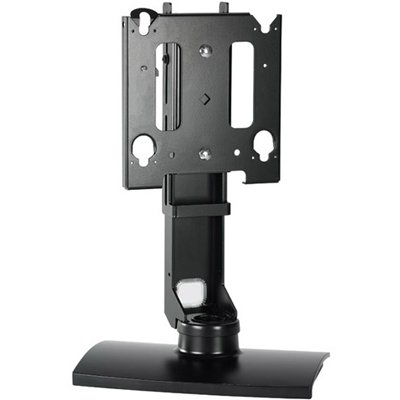

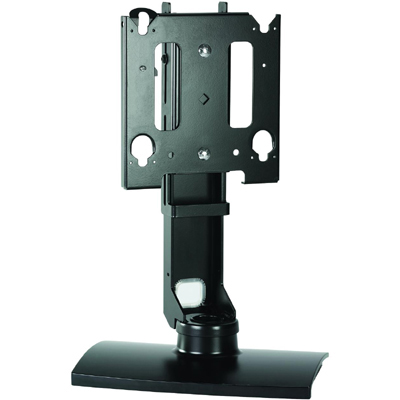

Chief MSS6000 is a swivel table stand designed to hold medium flat panel monitors or TVs.
Free-standing with bolt-down capability for permanent installations
Suitable for residential and commercial applications

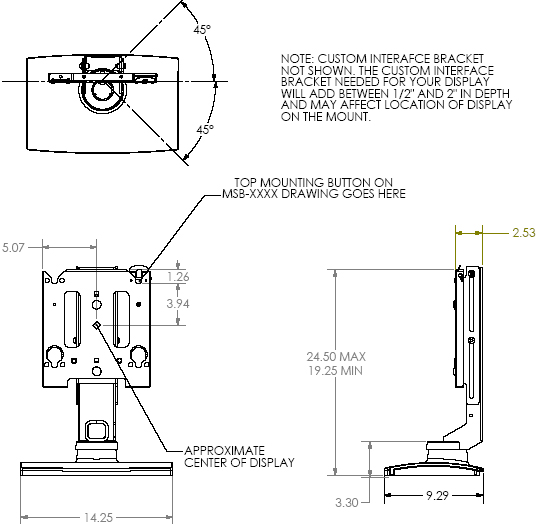

Technical Drawing
Specifications
| Color | Black |
| Manual Height Adjustment | 5.25" (133 mm) |
| Mounting Method | Free Standing and Bolt-down |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm - 709 x 431mm |
| Overall Dimensions (H x W x D) | 19.3" x 14.3" x 9.3" (489 x 362 x 236mm) |
| Pivot Numerical Value | Yes, up to 45° in either direction with optional stops at 15°, 25° and 35° |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal, Custom |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Typical Screen Sizes | 30 - 50" |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Landscape |
Features
Telescoping height adjustment
ClickConnect Technology provides an audible click to confirm that your flat panel is locked in place
Easy to connect/disconnect with no tools necessary
Bolt-down capability for permanent installation
Smooth swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
Integrated cable management conceals cables
MSSUB universal version available which includes universal MSBUB interface. MSS6000B is available but must order MSS6000B and MSBXXXX custom or universal interface separately
Product Options/Accessories
| Model | MSS6000 |
| Manufacturer | Chief Mounts |
| Part Number | MSS6000 |
| UPC | 841872066844 |
| Color | Black |
| Manual Height Adjustment | 5.25" (133 mm) |
| Mounting Options | Free Standing and Bolt-down |
| Overall Dimensions | 19.3" x 14.3" x 9.3" (489 x 362 x 236mm) |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Screen Size | 30 - 50 in |
| Weight Capacity | 150 lbs (68 kg) |
| Shipping Weight | 33.00 lbs |
| Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Pivot | Yes, up to 45° in either direction with optional stops at 15°, 25° and 35° |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
