$634.00

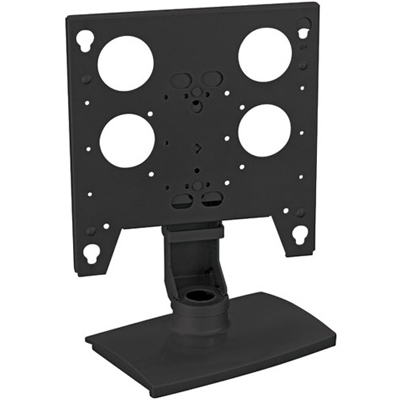

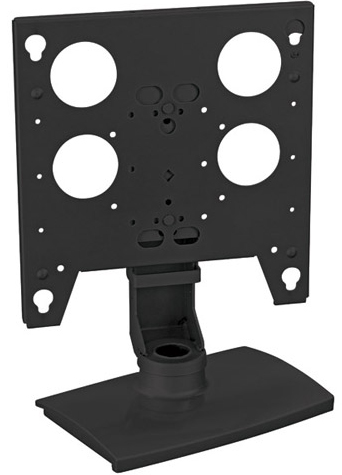

Chief PSS2000 Large Swivel Table Stand (without interface)

Product ID 16810
Chief PSS2000 Large Swivel Table Stand (without interface)

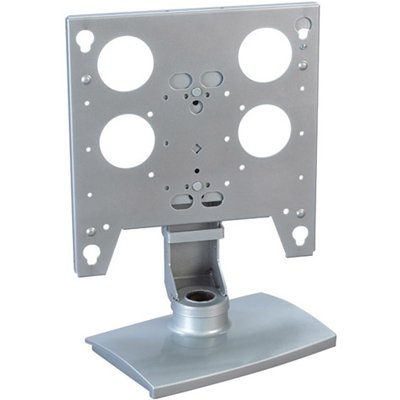

Chief PSS2000S Large (32
Chief PSS2000 Large Swivel Table Stand (without interface)
Chief PSS2000S Large (32

Chief PSS2000B large (32"-50") Swivel Table Stand (without interface)

Description

Chief PSS2000 provides a wide variety of features for most tabletop installations of large flat panel TVs.

  • Stylish solution for residential, commercial and business applications

  • View/download base stand template by clicking on the CAD drawing in the downloads tab

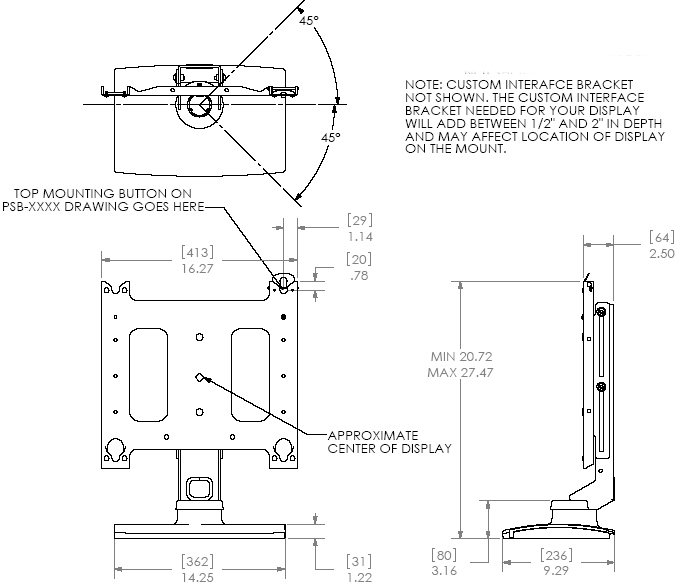

Technical Drawing

Technical Drawing of Chief PSS2000 Large Swivel Table Stand (without interface)



Specifications

Color

Black

Manual Height Adjustment

6.5"

Mounting Method

Free Standing and Bolt-down

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Orientation

Landscape

Overall Dimensions (H x W x D)

20.7" x 16.3" x 9.3" (526 x 413 x 236mm)

Pivot (numerical value)

Yes, up to 45° in either direction with optional stops at 15°, 25° and 35°

Post-Installation Leveling (Roll)

Yes

Shipping Weight

36.00 lbs

TV Height Range

15 - 32" (381 - 813mm)

Typical Screen Sizes

32 - 50"

Weight Capacity

150 lbs (68.kg)



Features

  • Smooth swivel with optional stops
  • Exclusive ClickConnect mounting system provides simplified tool-less latching with an audible click
  • Free standing with bolt down capability for permanent installations or security
  • Infinite height adjustment of 5" (127 mm) to allow for different screen heights up to 32" (81.28 cm)
  • Two cable management options for ease of installation
  • Smooth finger-tip swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
  • PSSUB universal version available which includes universal PSBUB interface. PSS2000B is available but must order PSS2000B and PSBXXXX custom or universal interface separately
Model PSS2000
Manufacturer Chief Mounts
Part Number PSS2000
UPC 841872043418
Color Black
Manual Height Adjustment 6.5"
Mounting Options Free Standing and Bolt-down
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 20.7" x 16.3" x 9.3" (526 x 413 x 236mm)
TV Height Range 15 - 32" (381 - 813mm)
Screen Size 32 - 50 in
Weight Capacity 150 lbs (68.kg)
Shipping Weight 36.00 lbs

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
