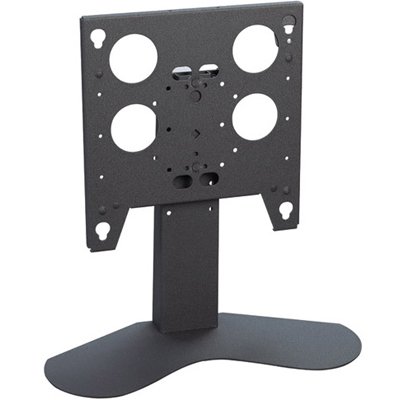

Chief PTS2000B Large Flat Panel Table Stand (without interface)

Product ID 16811
Chief PTS2000B Large Flat Panel Table Stand (without interface)
Chief PTS2000B Large Flat Panel Table Stand (without interface)


Stylish solutions for residential, commercial and business applications, chief PTS2000 table stand provides a wide variety of features for most large flat panel table top installations.

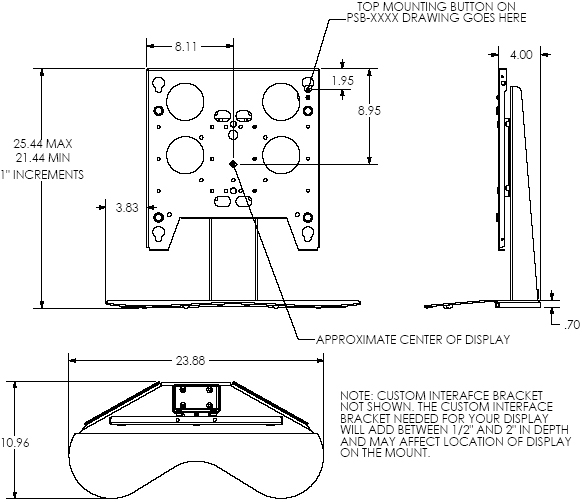

Technical Drawing

Technical Drawing for Chief PTS2000B Large Flat Panel Table Stand (without interface)


Color Black
Manual Height Adjustment 4" (102 mm)
Mounting Method Free Standing
Overall Dimensions (H x W x D) 21.4" x 23.9" x 11.0" (545 x 607 x 278mm)
Post-Installation Leveling Roll Yes
Solution Type Universal, Custom
TV Height Range 15 - 32" (381 - 813mm)
Typical Screen Sizes 32 - 50"
Weight Capacity 100 lbs (45.4 kg)
Orientation Landscape


  • Q-Latch Mounting System for easy installation, stable mounting, quick release and optional security

  • Low-profile base

  • 4" of display height adjustments in 1" increments to allow for difference screen heights up to 32"

  • PTSU universal version available which includes universal PSBUB interface. PTS2000B is available but must order PTS2000B and PSBXXXX custom or universal interface separately

Model PTS2000B
Manufacturer Chief Mounts
Part Number PTS2000B
UPC 841872040097
Color Black
Manual Height Adjustment 4"
Mounting Options Free Standing
Overall Dimensions 21.4" x 23.9" x 11.0" (545 x 607 x 278mm)
TV Height Range 15 - 32" (381 - 813mm)
Screen Size 32 - 50 in
Weight Capacity 100 lbs (45.4 kg)
Shipping Weight 34.00 lbs
Orientation Landscape
Post-Installation Leveling Roll Yes
